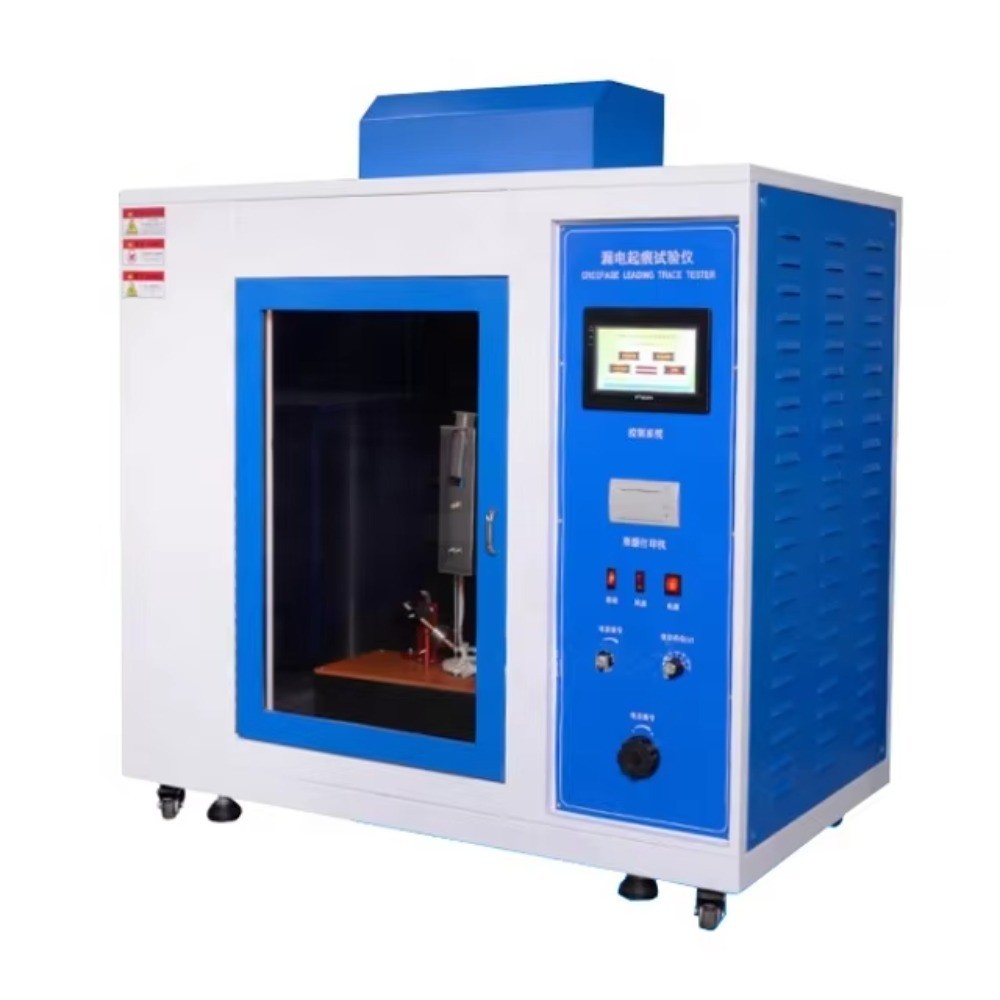

CTI Testing Machine

Product Introduction

This product is used in electrical products subject to moisture and environmental impurities, or where live parts with different polarities between live parts and grounding (grounding) metal parts may cause insulation leakage, electrical breakdown caused by arcing causing short circuits or material erosion due to electrical discharge, or even fire. Flow is simulated on this test equipment and is a destructive test of insulating materials for testing and evaluating at a specified voltage, with the insulator relative tracking resistance when an electric field and impurities act in water. It is suitable for electrical and electronic products, insulation materials and products for solid electrical appliances, such as relay sockets, switch covers, contact bodies, etc.

Standards

IEC60335, GB4706.1, IEC6084-1, GB2099.1, GB/t4207-2003, IEC 60112.

Technical Data

1) Part of the capacity box: ≥0.5 cubic meters with glass viewing door

2) E The load test voltage is adjustable between 100 ~ 600 V, the short circuit current is 1 A± 0.1 A When the voltage drop should not be greater than 10%, when the test loop is tested, the leakage current is equal to or greater than 0.5 A when the short circuit is maintained, the time is maintained for 2 seconds, the relay is operated, the current is cut off, The sample indicates that it is not qualified.

3) T to apply wo pole to the sample: Using a rectangular platinum electrode, the force of the two poles is 1.0n plus or minus 0.05 respectively

4) Drip device: The drop height can be from 30mm~40mm, the droplet size is 44-50 drops/cm3, and the drop time is 30±1 second

5) Product features: The structural parts of this test chamber are made of stainless steel or brass, the electrode head is platinum, high temperature and corrosion resistance, accurate drop counting, stable and reliable control system.

6) Power supply: AC 220V, 50Hz
