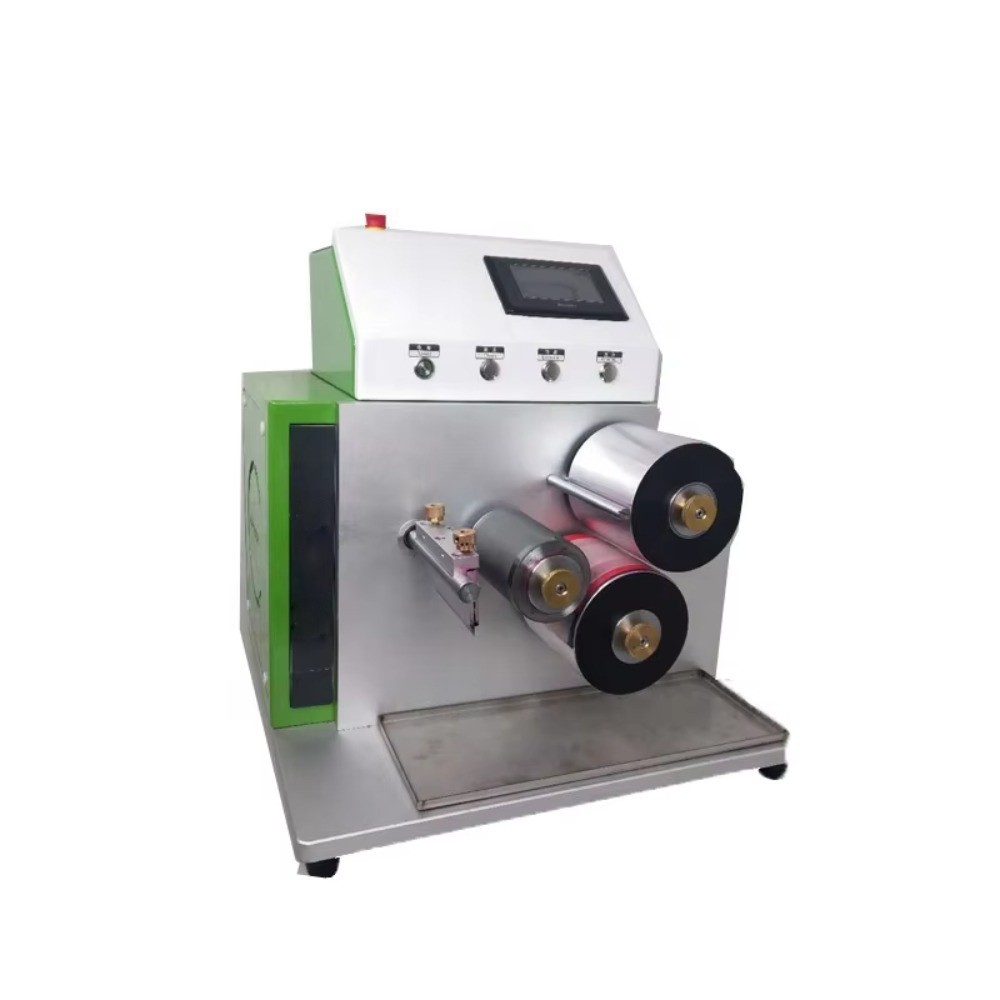

Flexographic Ink Proofing Machine

Product Introduction

The ink proofing machine is designed for coated, solid color, dot pattern proofing. The ceramic roller rotates the ink evenly first, and then prints the material. The plate drum begins to rotate synchronously for one week to complete the proofing work. Ceramic rollers, printing material rollers and plate rollers run synchronously to ensure proofing quality.

Features

1. Adopt private clothes and stepper motor, touch screen control, make the operation simpler, control more precise.

2. The four structures of scraper, ceramic roller, printing plate roller and printing roller can adjust the pressure and adjust flexibly;

3. The net roller and scraper barrel are easy and convenient to disassemble and clean.

4. The installation of printing materials, the installation of printing plates and cleaning plates is simple and convenient.

Technical Data

Control Voltage: 24VDC Power: 0.5K

Inking mode: Pipette ink drop

Thickness of proofing material: 0.01-2mm (bending material)

Proofing material size: 100x405 mm

Printing area: 90*240mm

Flat area: 120x405 mm

Plate thickness: 1.7 mm thick flexible adhesive 0.3 mm

The pressure of the drum and net drum is regulated by a motor and has a scale to display the pressure.

Roller and imprint pressure: adjustable, with a scale to indicate pressure.

Print speed adjustable: 10-130 m/min.

Ceramic mesh roller size: Phi 80x120mm mm

Number of ceramic mesh rollers: standard 500 lines (70-1200 lines can be customized).

Suitable for printing inks: flexographic water-based, UV inks, lithography, letterpress printing, or UV inks.

Suitable proofing materials: paper, plastic film, non-woven fabric, napkins, gold and silver cardboard, etc.

Dimensions: 550x515x420mm mm

Net weight of the instrument: 88 kg
