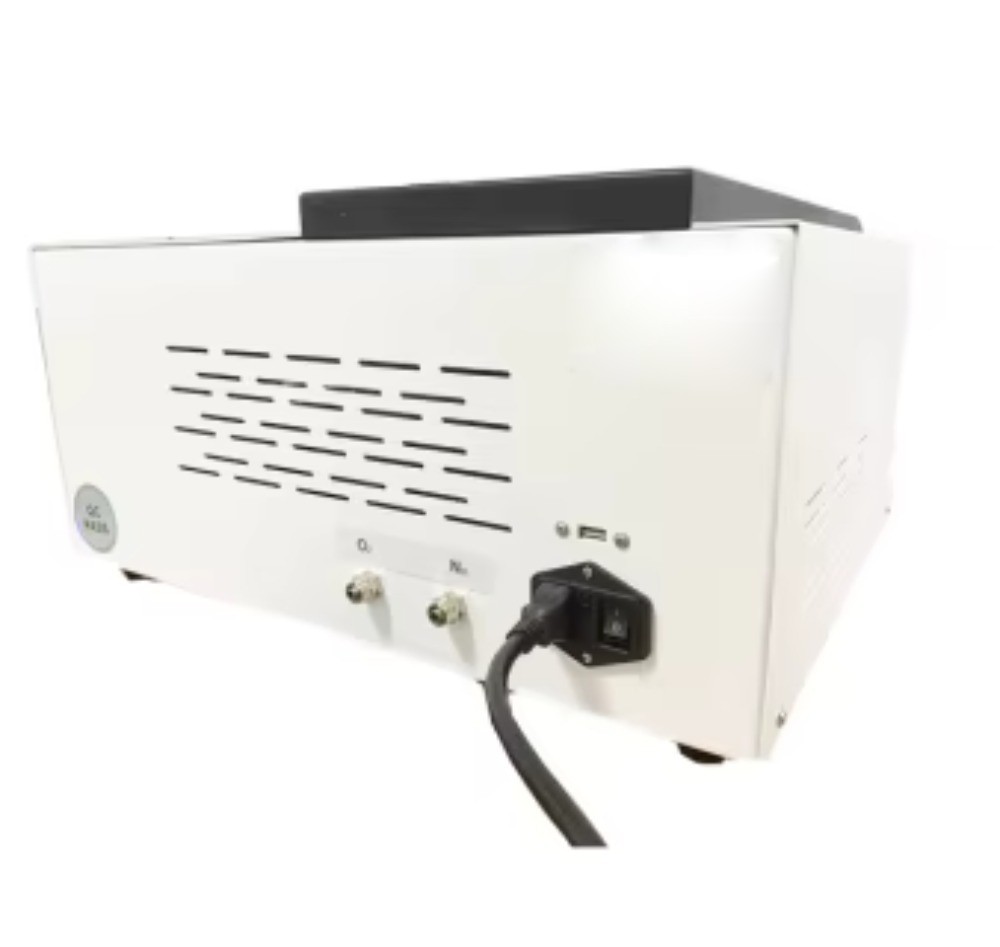

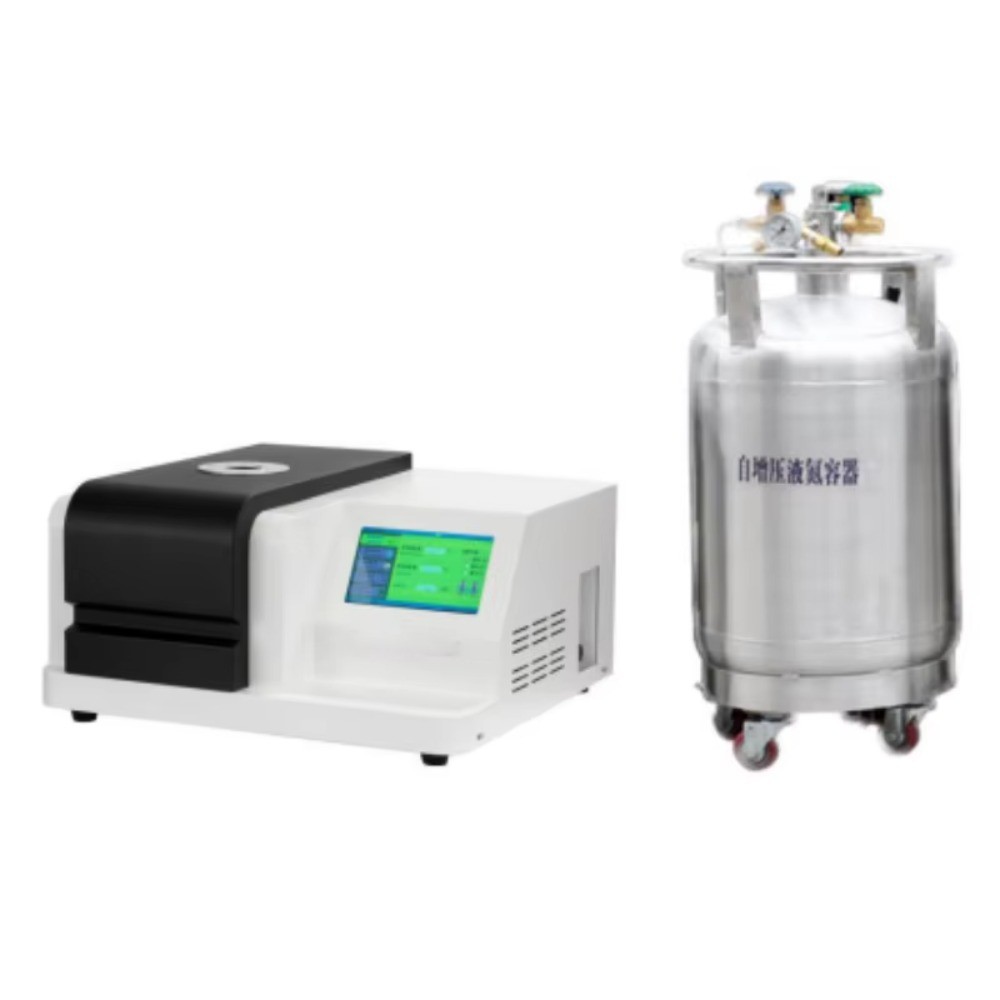

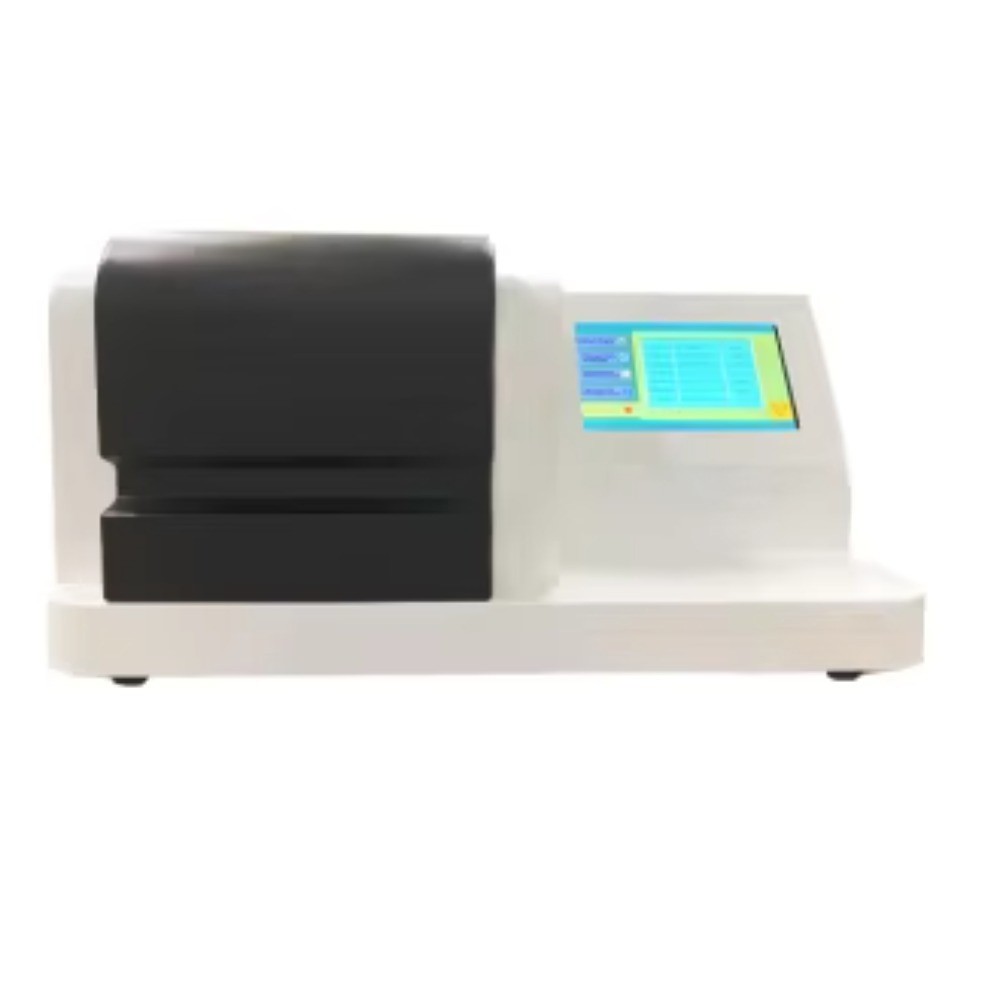

Differential Scanning Calorimeter

Product Introduction

The differential scanning calorimeter is a touch screen that can be used for glass transition temperature measurement, phase transition measurement, melting and enthalpy measurement value test, product stability, oxidation induction period test, specific heat test, etc. are mainly used in chemical, energy, metallurgy, minerals, polymer materials, metal materials and other industries.

Features

1. Industrial-grade 7-inch touch screen, rich display information.

2. New furnace structure, which can be matched with a variety of refrigeration devices.

3. USB communication interface, strong versatility, reliable communication without interruption, support self-recovering connection function.

4. Automatic switching of two airflows, fast switching speed and short stabilization time. At the same time, a protective gas input is added.

5. The software is simple and easy to operate.

Technical Data

1. Temperature range: -170 ~ 600 °C, liquid nitrogen refrigeration

2. Temperature resolution: 0.01 °C

3. Temperature fluctuation: ± 0.01 °C

4. Temperature repeatability: ± 0.1 °C

5. Heating rate: 0.1 ~ 80 °C/min

6. Constant temperature time: 0 ~ 400

7. Temperature control mode: heating, cooling, constant temperature

8.DSC range: 0~± 600mW

9.DSC resolution: 0.001mW

10. DSC sensitivity: 0.001mW

11. Power supply: AC220V/50Hz or customized

12. Cooling equipment: liquid nitrogen cooling

13. Atmosphere control gas: nitrogen, oxygen (automatic instrument switch)

14. Gas flow rate: 0-300ml/min

15. Gas pressure: 0.2MPa

16. Display mode: 24-bit color, 7-inch LCD touch screen display

17. Data interface: standard USB interface

18. Parameter standard: Equipped with standard materials (indium, tin), users can adjust the temperature

19. The upper computer operation software, the coordinate range is automatically switched, no need to manually adjust; The software analysis results can be dragged and displayed at will

20. The instrument has multiple sets of thermocouples, one group tests the sample temperature, one sets tests the internal ambient temperature of the instrument, and one sets tests the furnace temperature
