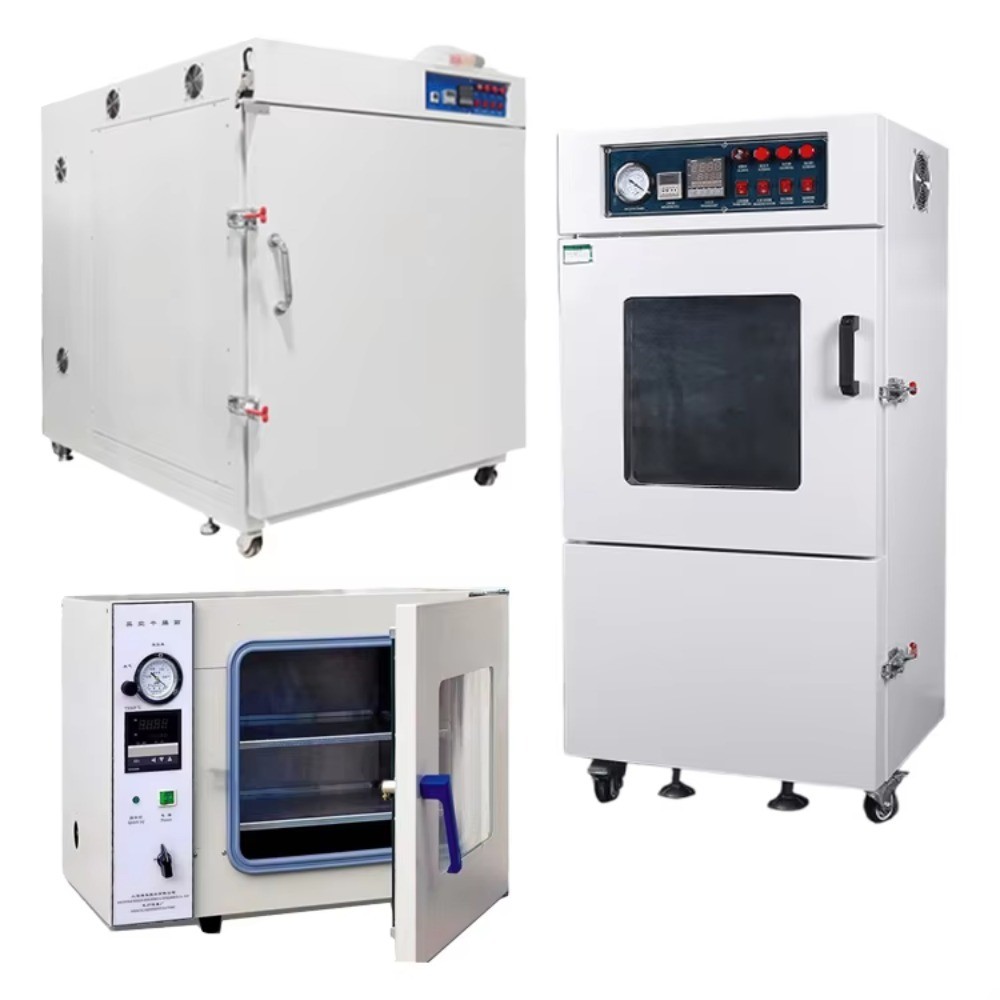

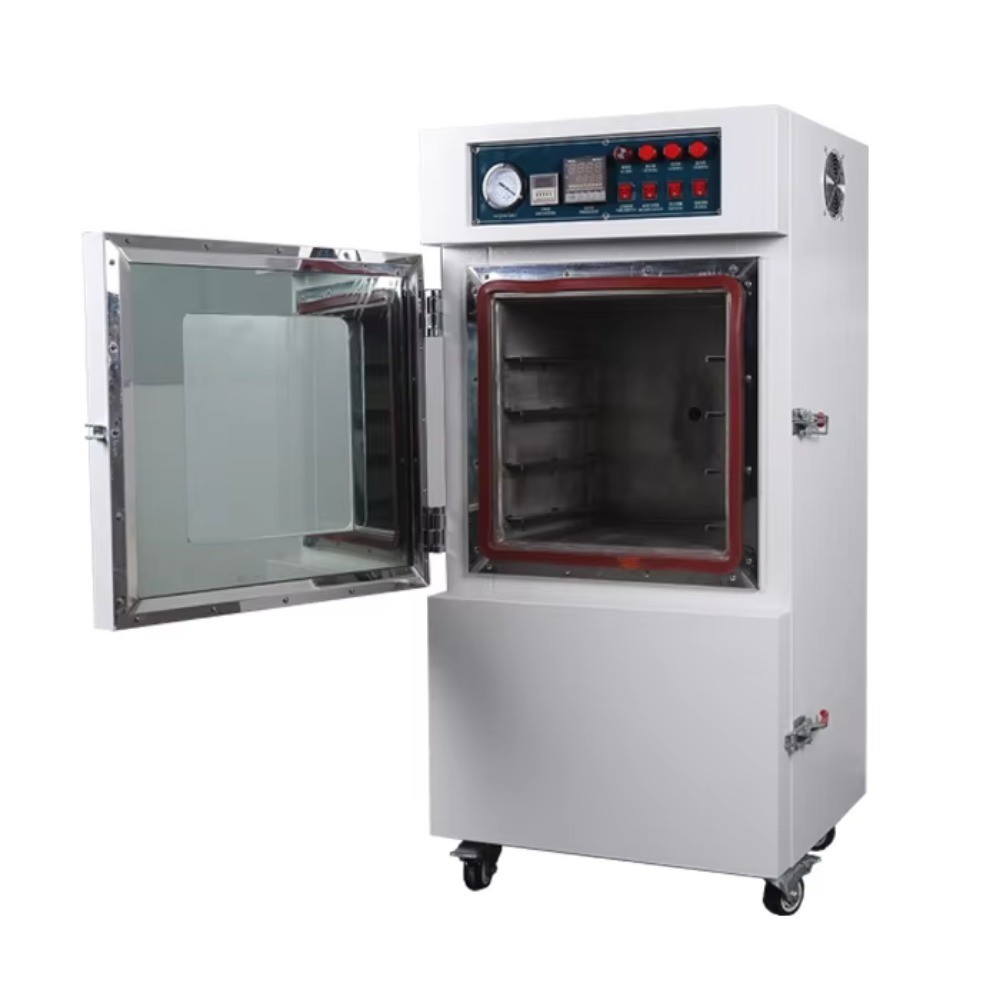

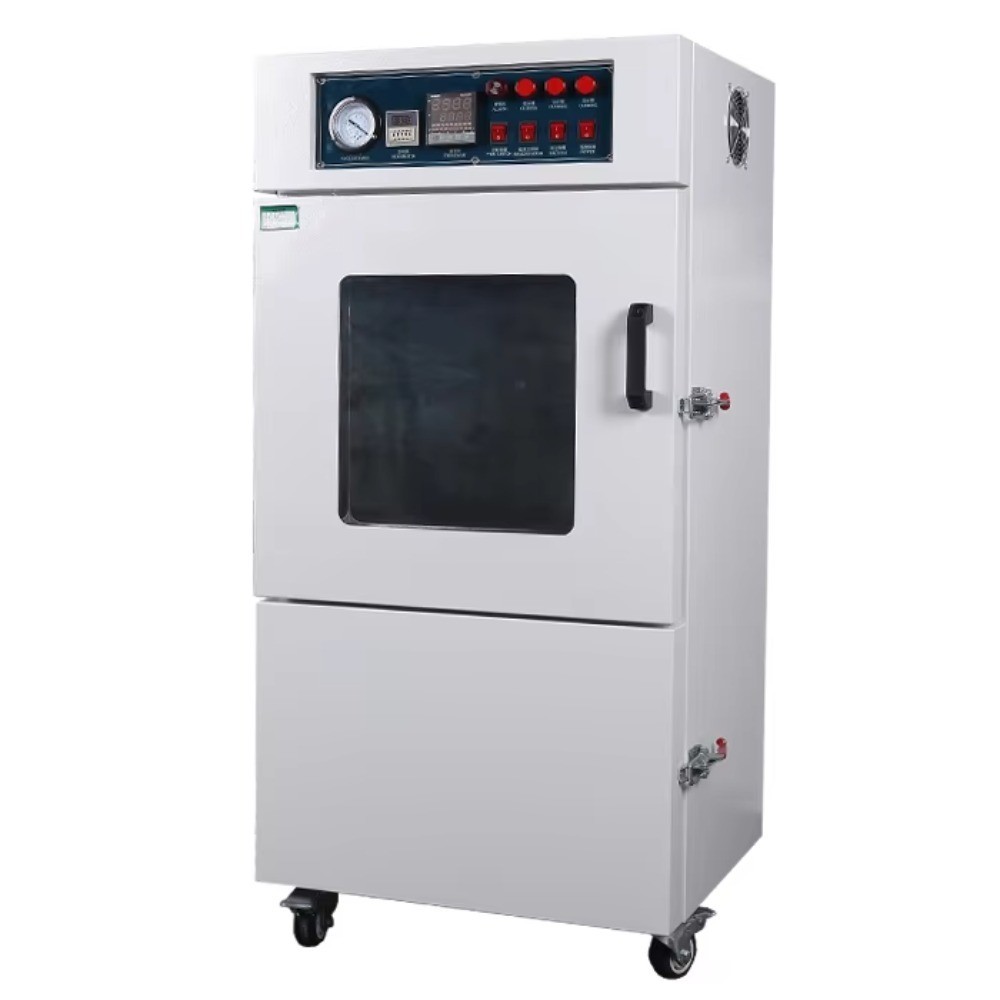

Constant Temperature Vacuum Drying Oven

Product Item : ZYVD-30
Category： Products
Vacuum Drying Oven
Vacuum Drying Oven price
Vacuum Oven
Laboratory Vacuum Oven
Product description：The vacuum oven is to use the principle of vacuum pumping to achieve the drying of articles. It is designed for drying and heating tests of objects under vacuum conditions in scientific research units
INQUIRY

Product Introduction

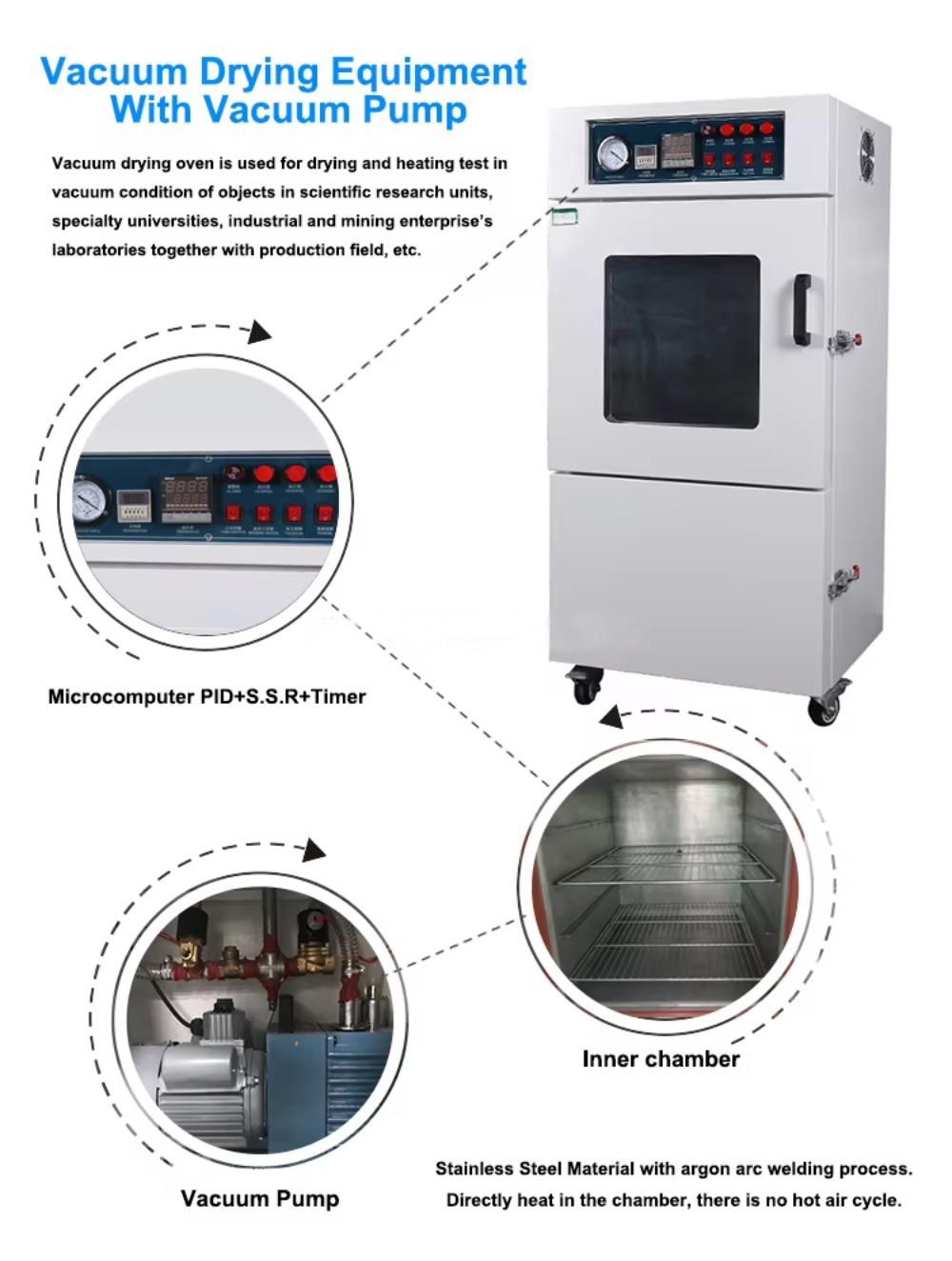

The vacuum oven is to use the principle of vacuum pumping to achieve the drying of articles. It is designed for drying and heating tests of objects under vacuum conditions in scientific research units, professional universities, industrial and mining enterprise laboratories and production fields.

Technical Data

model	ZYVD-30	ZYVD-40	ZYVD-60	ZYVD-X (Customized)
Inner chamber size w × h × d (cm)	303030	404040	606060	According to your requirements, we need to know the size of your sample
External chamber size w × h × d (cm)	61×47×47	71×57×57	96×80×80
Test temperature range	RT ~ 200 ℃ (300 ℃/400 ℃)
Vacuum level	RT~200℃ (300℃/400℃)
Temperature fluctuations	±0.5℃
Temperature uniformity	±5℃
Control precision	0.1℃
Heating time	RT ~ 200 °C<80min (wireless, no-load)
Air circulation system	Cooling fan
Heating system	SUS# stainless steel high speed heater
Vacuum system	Equipped with a vacuum pump
Control mode	Microcomputer PID + s.r + timer
power supply	AC 3 phase 220/380V 60/50Hz
