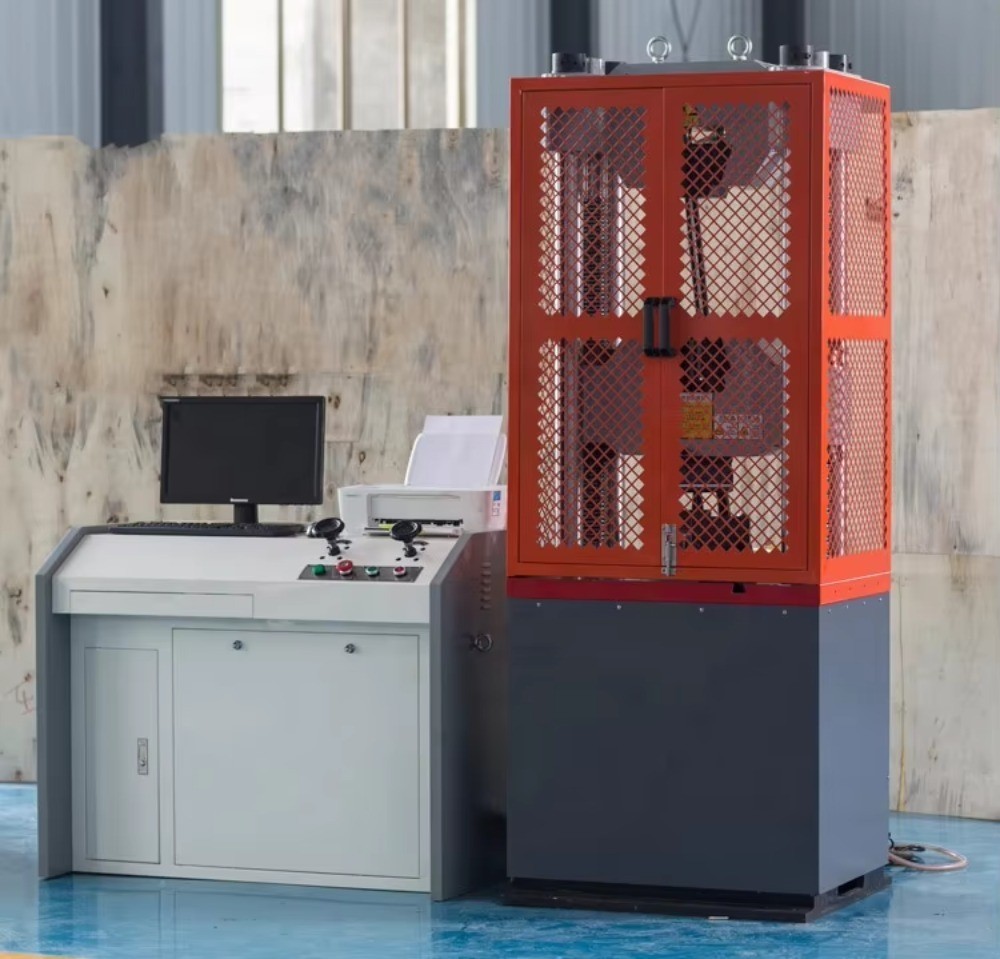

Hydraulic Tensile Strength Tester

Product Item : HST-300
Category： Tensile Testing Machine
Hydraulic Tensile Strength Tester
Tensile Strength Tester
Tensile Strength Tester for metal
Product description：Hydraulic Tensile Strength Tester is mainly used to execute the tension, compression, bending, shearing, etc. test for metal materials. Attached are simple accessories and devices, that can be used to
INQUIRY

Product Introduction

1. Material Compression Testing Apparatus is mainly used to execute the tension, compression, bending, shearing, etc. test for metal materials. Attached are simple accessories and devices, that can be used to achieve many kinds of mechanical performances.
2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, and compression and bending space is between the lower cross head and the working table. The lower cross head is driven by a motor through a decelerator, chain transmission device, and screw pair, so realizes the adjustment of testing space.

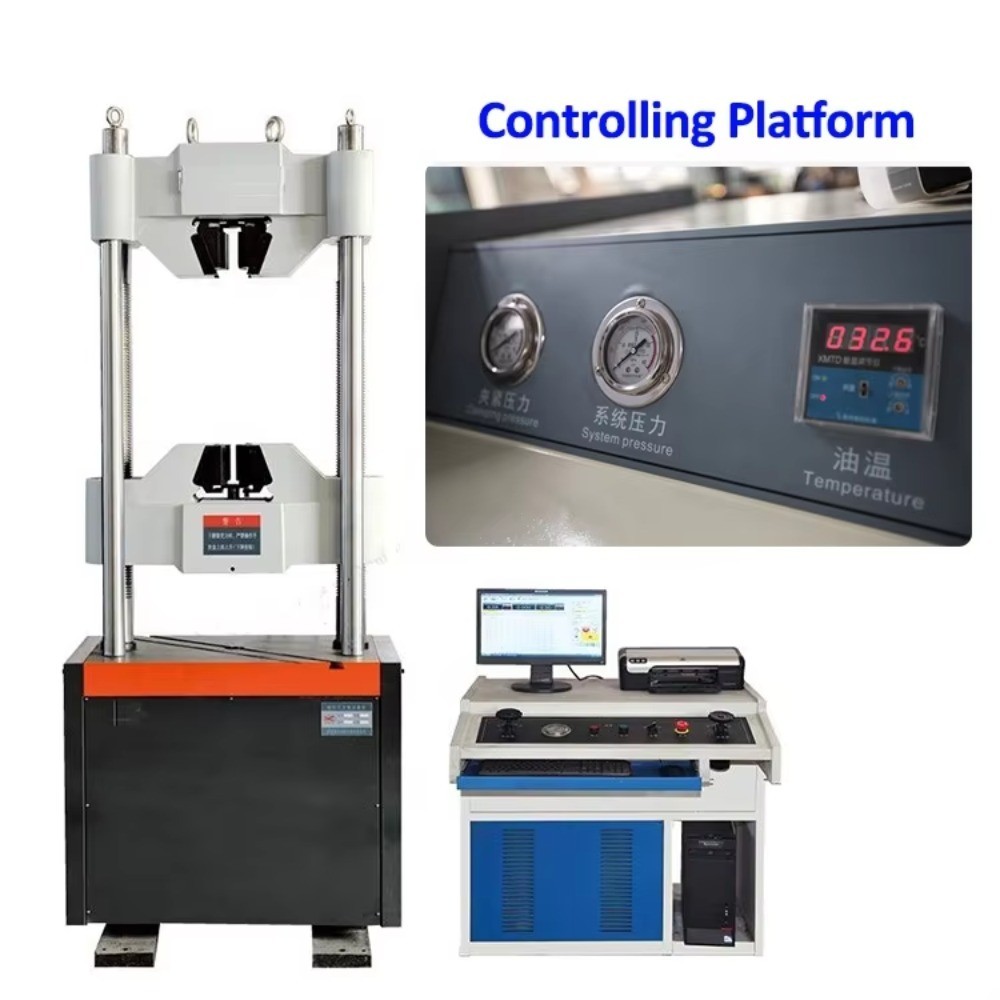

3. Material Compression Testing Apparatus adopts Load cell measure load, uses computer control & display load.

Technical Data

Tester Model	HTS-300	HTS-600	HTS-1000	HTS-2000
Test range	6KN-300kN	12KN-600kN	20KN-1000kN	40KN-2000kN
Test force accuracy	±1%
Displacement resolution	0.01mm
Deformation test accuracy	±0.5%
Max drawing space	800mm	800mm	850mm	800mm
Max compressing space	700mm
Flat sample clamp thickness	0-15mm		0-40mm	0-60mm
Round sample clamp diameter	φ6-φ26mm	φ13-φ40mm	φ13-φ60mm	φ15-φ70mm

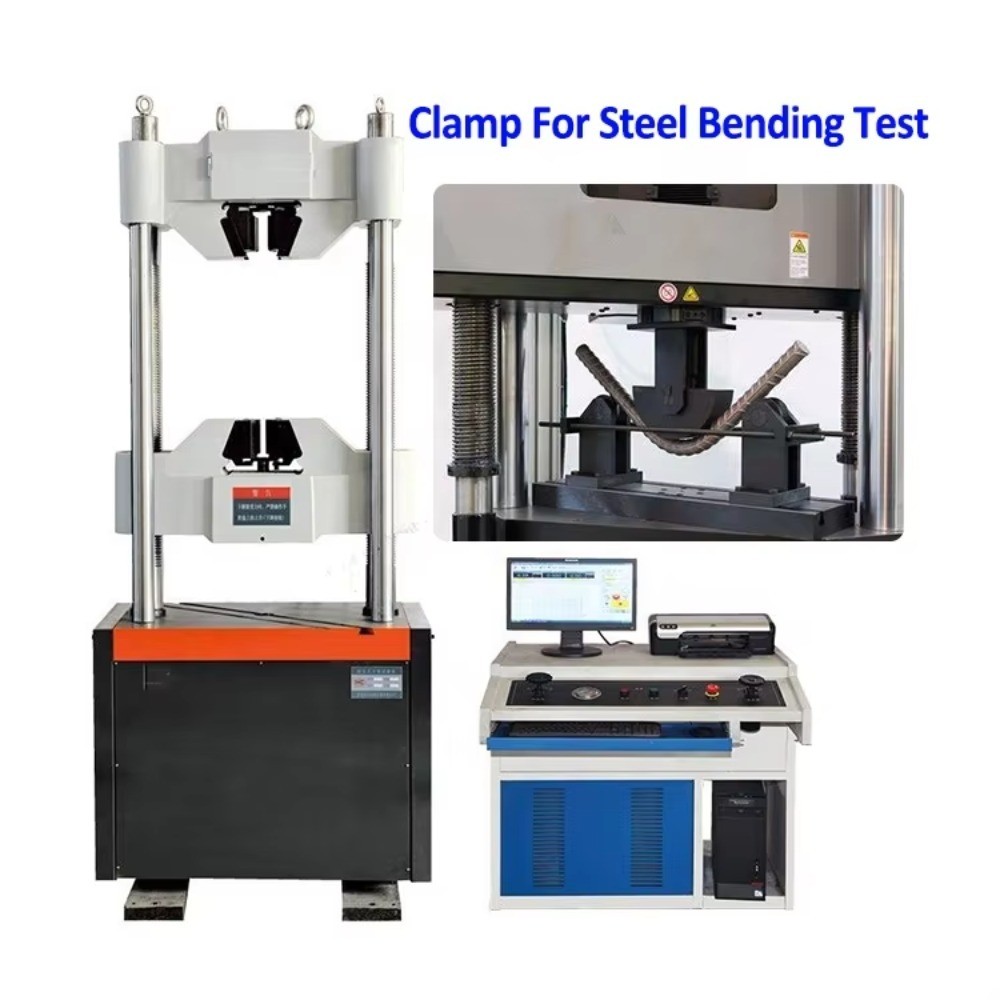

Bending test branch space	450 mm
Branch width	140mm
Branch diameter	30mm
Piston Stroke	250mm
Clamp method	Built-in Hydraulic clamp
Constant force/ displacement controlling accuracy	SV<10%FS, less than ±1.0% of SV SV≥10%FS, less than ±0.5% of SV
