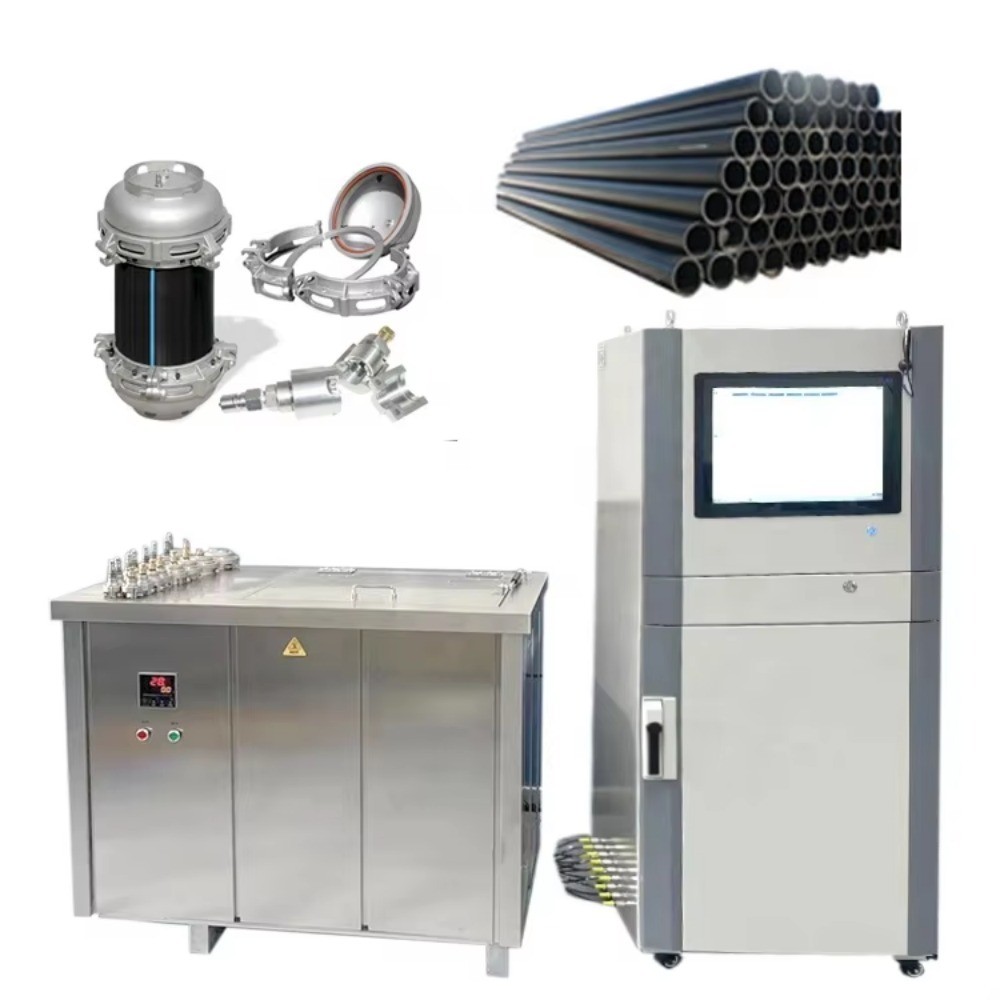

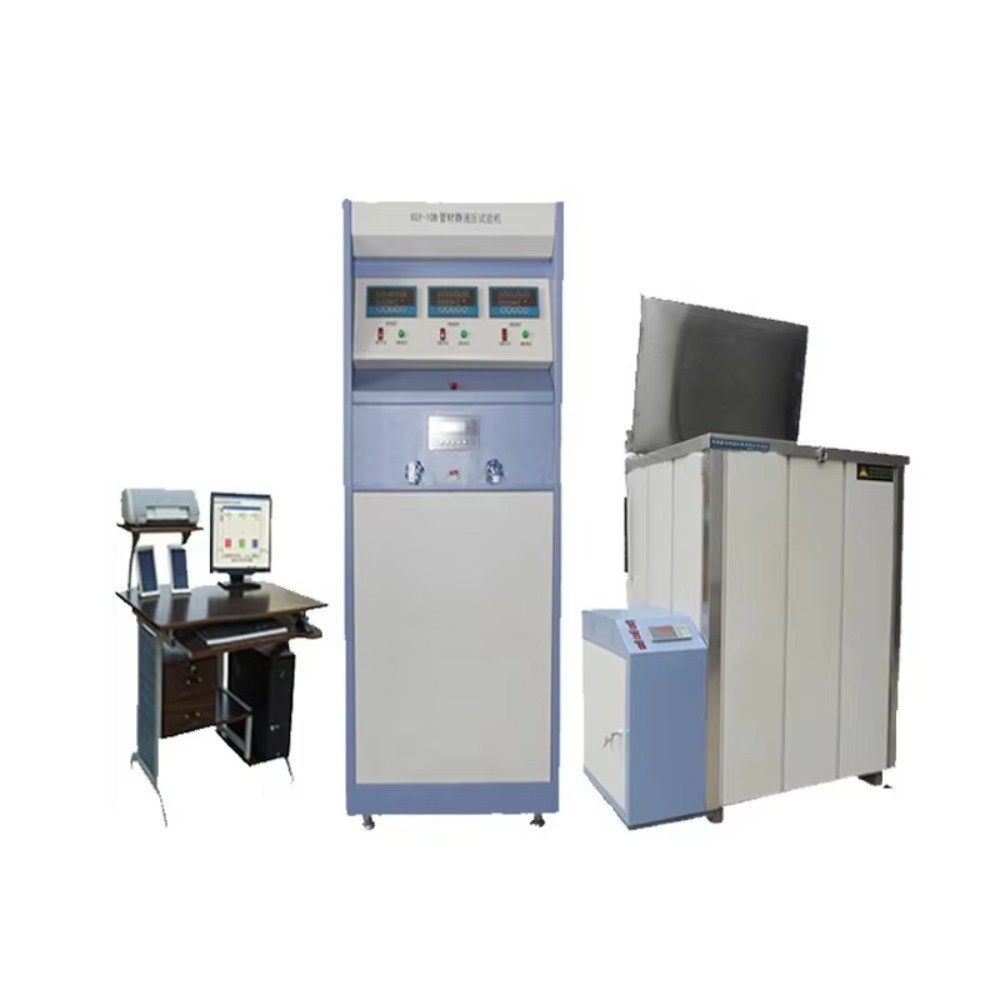

Hydrostatic Pressure Testing Machine

Product Item : HPT-910
Category： Plastic tester machine
Hydrostatic Pressure Test
Hydro Testing Equipment
Hydrostatic Pressure Tester
Product description：Hydrostatic Pressure Testing Machine is nice in appearance, simple in structure and of high precision and stability as well as easy to operate, it is the it is the necessary testing machine for qualit
INQUIRY

Product Introduction

Hydrostatic Pressure Testing Machine is nice in appearance, simple in structure and of high precision and stability as well as easy to operate, it is the it is the necessary testing machine for quality inspection department of kinds of research institutes and pipes manufacturers.

Standards: ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479 etc.

Technical Data

Pressure Range Of The Main Engine	0~10MPa (adjust at random)
Control Range of Water Box	RT~95℃
Pressure Resolution of Main Engine	0.001MPa
Temperature Control Accuracy of Water Box	±0.5℃
Constant Pressure Range of Main Engine	<+2%,-1% of the set value
Temperature Uniformity of The Water Box	±0.5℃.
Constant Pressure Accuracy of Main Engine	no lower than ±1%
Temperature Resolution of Water Box	0.1℃.
Timing Range	0~9999.59 hours
Timing Accuracy	≤0.1%
Insulating Layer Thickness of The Water Box	thicker than 83mm,thinner than 95 mm
Test Stations	50 roads at most for single machine
Power Supply of Pressure Control System	AC220V,1.5kw
Power Supply of Temperature Control System	AC380V,18kw

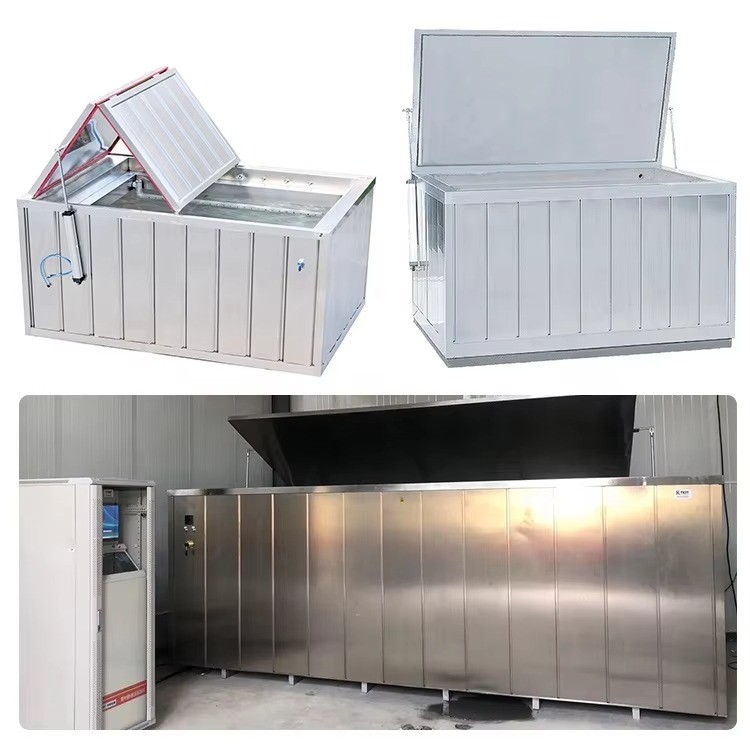

Water box is equipped with short-circuit protection device, the material is stainless steel
