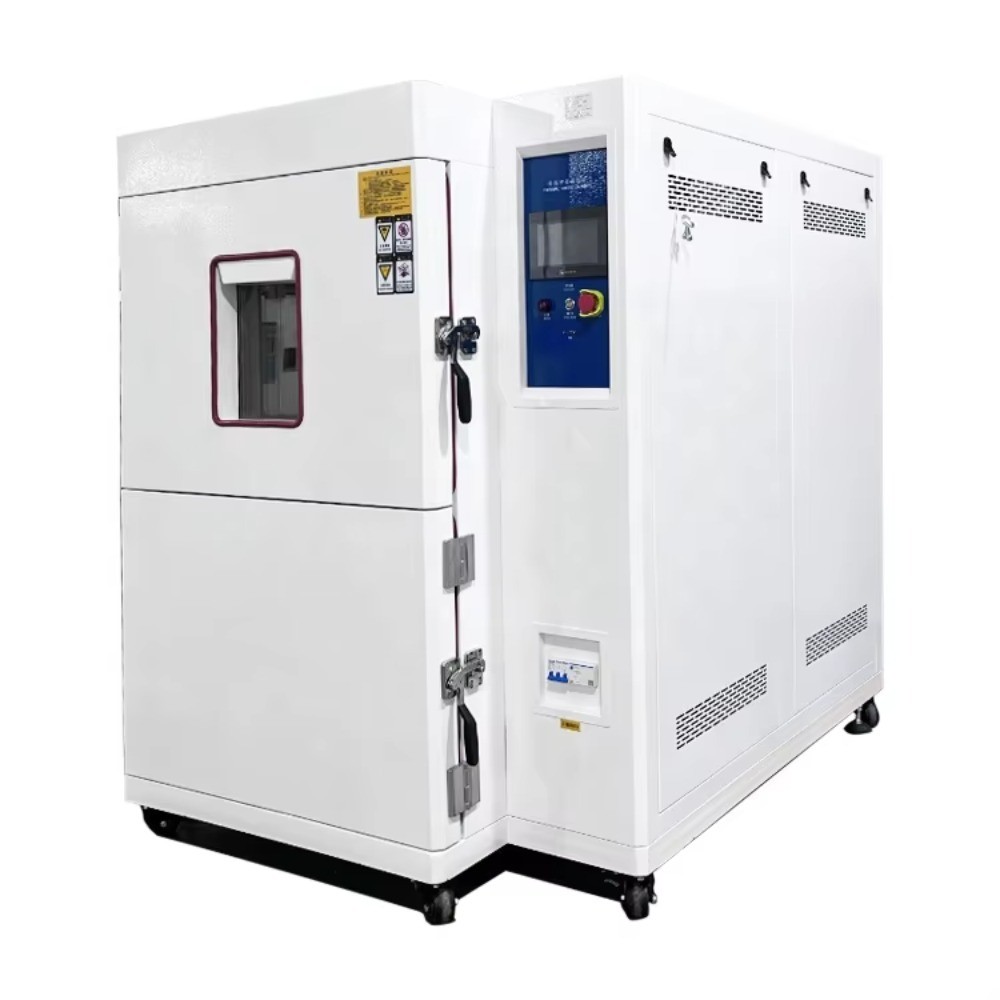

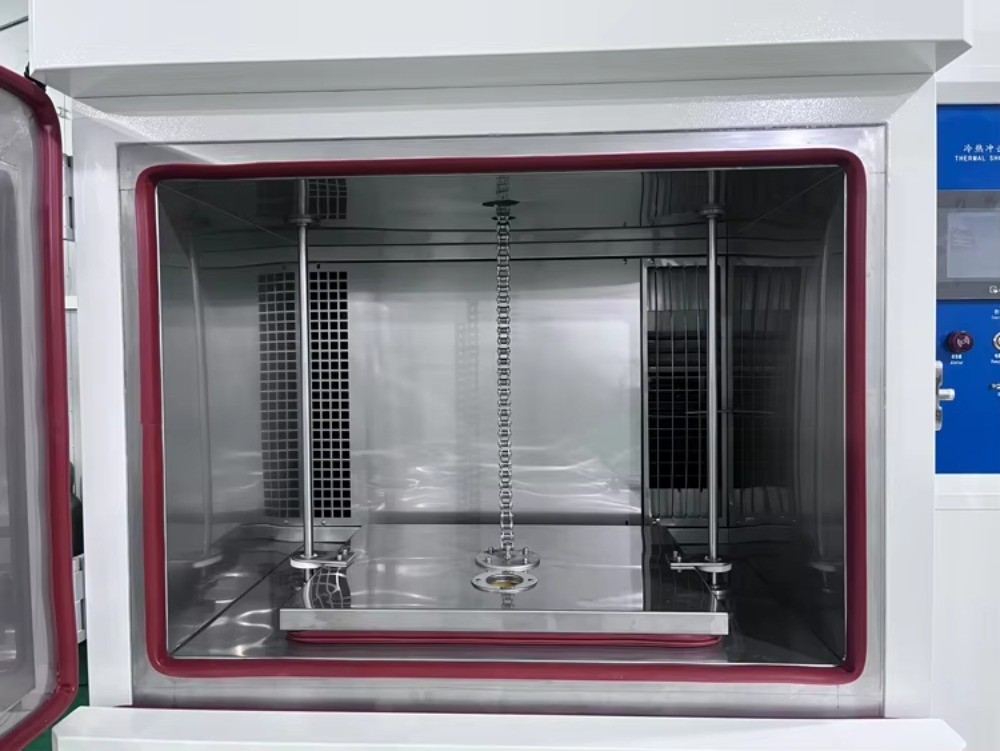

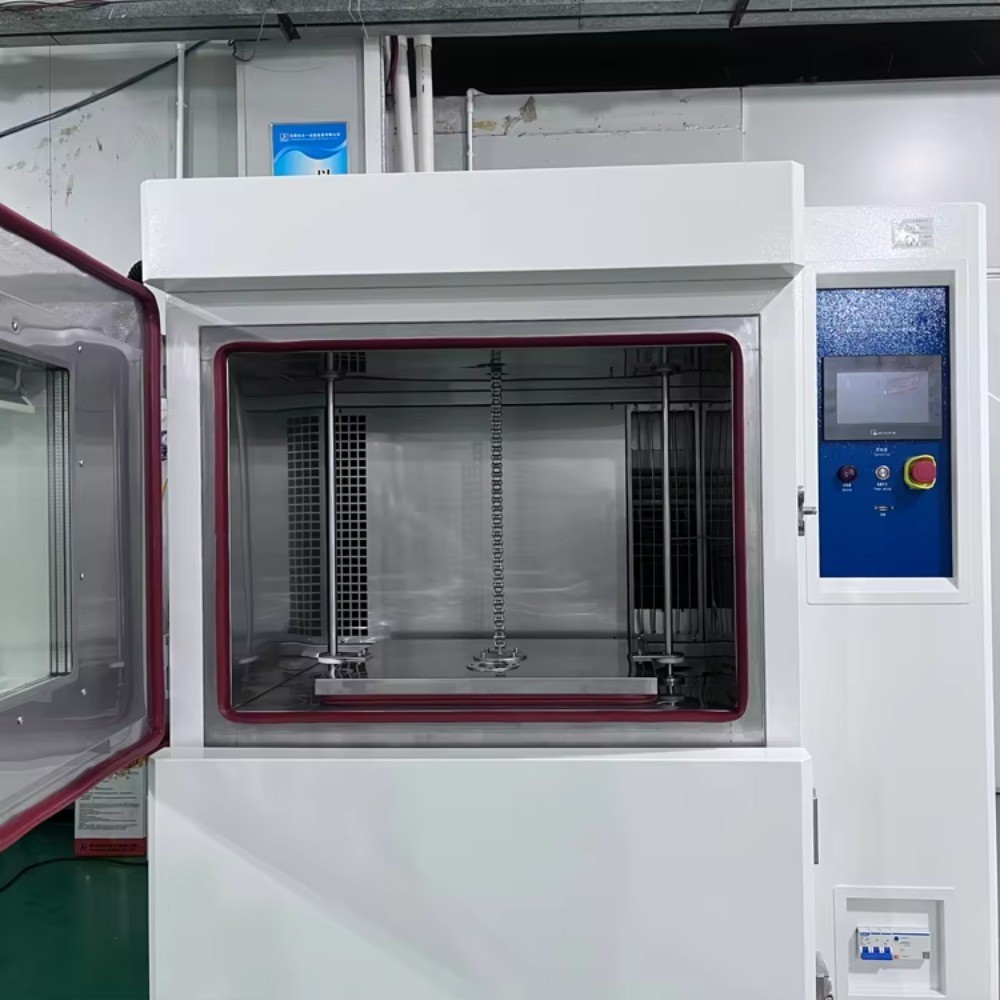

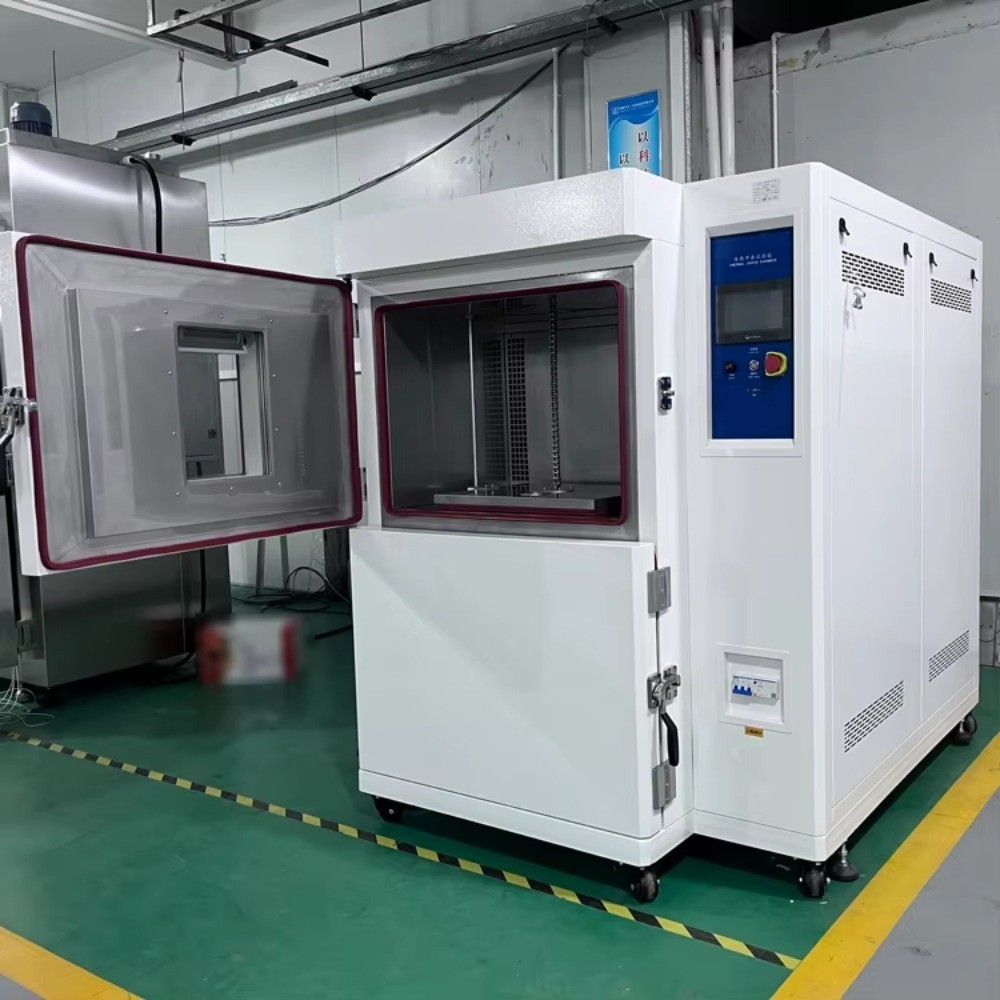

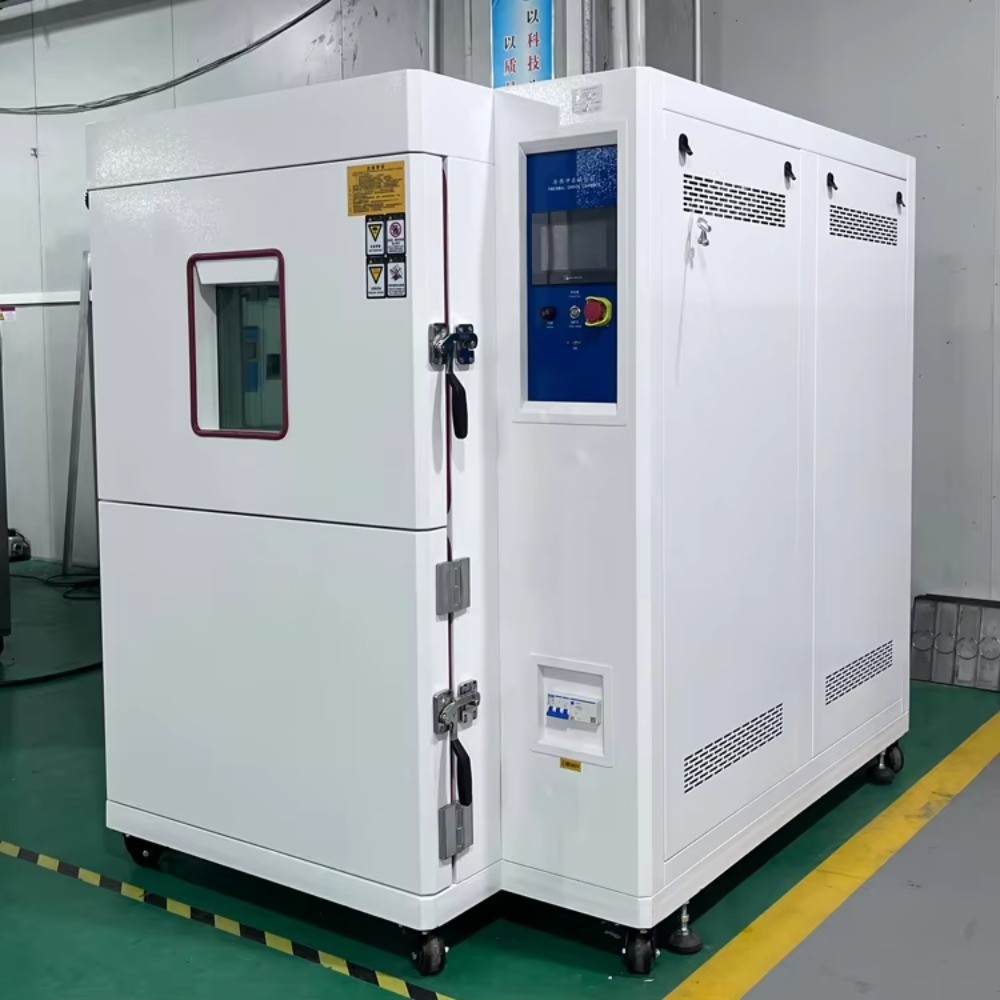

Temperature Shock Test Chamber

Product Item : TSC-300
Category： Environmental Test Chamber
Temperature Shock Test Chamber
Temperature Test Chamber
Test Chamber
Product description：The programmable Thermal Shock test Chamber price is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense indu
INQUIRY

Product Description

The programmable Thermal Shock test Chamber price is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.

Technical Data

Inner Size(mm)	400×350×300	400×500×400	500×600×500	500×750×600
Temperature Range	High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation	Less than ±2°C
Temperature Conversion Time	Less than 10S
Temperature Recovery Time	Less than 5min
Material	External material: SUS#304 Stainless steel plate Internal material: SUS#304Stainless steel plate
Cooling System	Water-cooled or air-cooled, Tecumseh compressor in France, environment-friendly refrigerant
Controller	Programmable temperature controller
Temperature Sensor	PT 100 *3
Setting Range	TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE
Resolution	TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode	PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG)	3.5kg
Standard Accessories	Cable hole, lighting equipment
Cooling System	Water-cooled/air-filled type
Power	AC 380V / 50HZ Three-phase four-wire AC power
