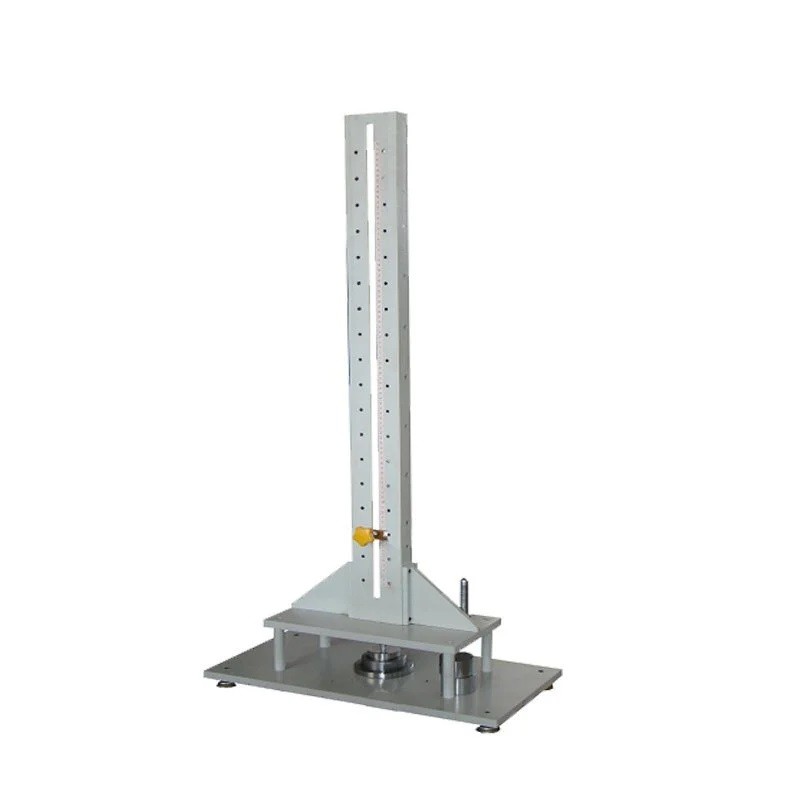

Dupont Impact Test Machine

Product Item : IT-1000
Category： Plastic tester machine
Dupont Impact Test Machine
Impact Test Machine
impact tester
Product description：Dupont impact test machine is used for testing the firm degree of the plastic, ceramic, acrylic, glass fiber materials and coating material.
INQUIRY

Product Introduction

Plastic Dupont impact tester used for testing the plastic specimen, PVC specimen, coating specimen resistance to impact performance. The specimen in the machine ram, to a certain height of the hammer impact, check the damage, deformation or peeling situation.

Working Principle

Dupont Impact Test machine to be provisioned of the weight of the steel ball, adjust a certain height, dropfeely and attack samples, observe the degree of damage.

Standards

Dupont Impact Test machine meets below standards：JIS-K5600(coating), ASTM-D2794, JIS-K5400 and so on.

Technical Data

Test sample	Plastic sample	Coating sample
Drop heigt	80~1000mm, 50mm interval	50~500mm, 50mm interval
Ball drop controlling mode	Manual setting
Impact ball weight	1000,2000G	300,500,1000G
Ball diameter	7.9mm(5/16in)	1/2,1/4,3/16,1/8,1/16in
Sample base diameter	Plane 8.1mm,15mm	plane 1/2,1/4,3/16,1/8,1/16in
machine dimension(DWH)	450* 580*1280mm	300580770
Weight	60kg	45kg
