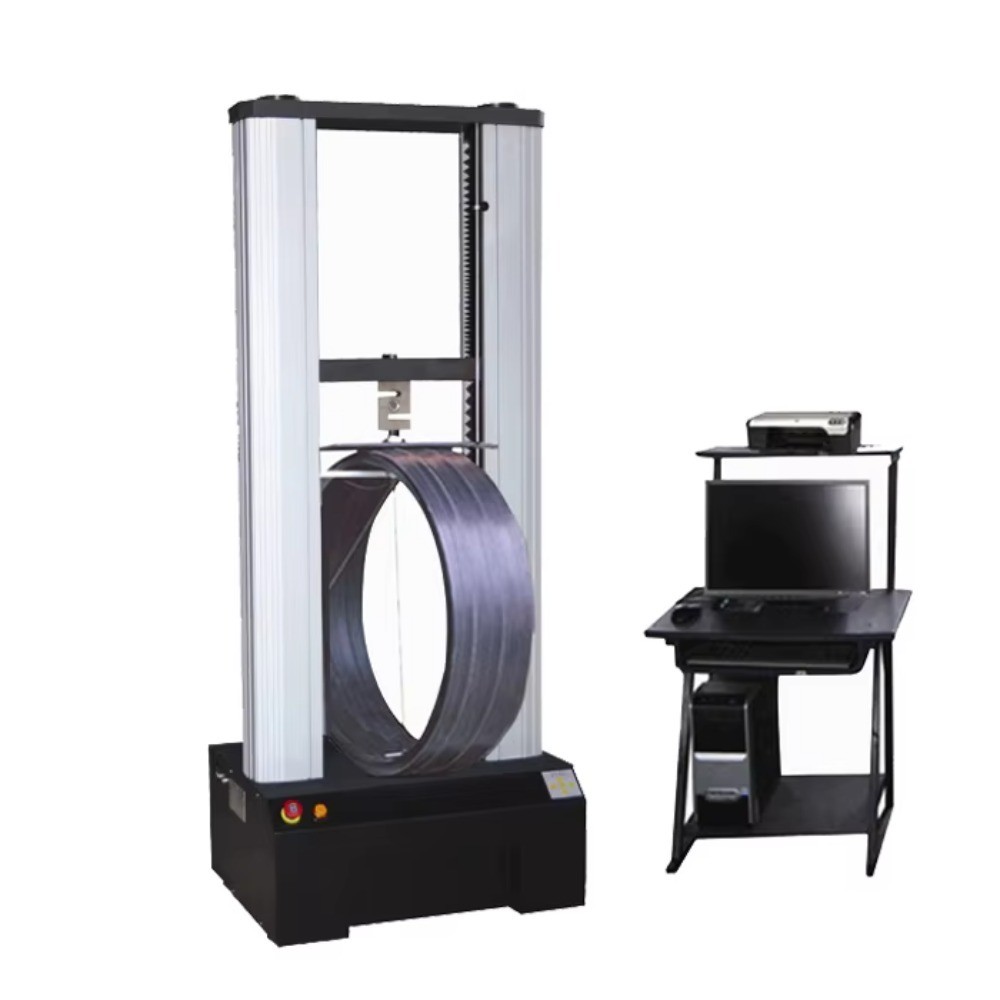

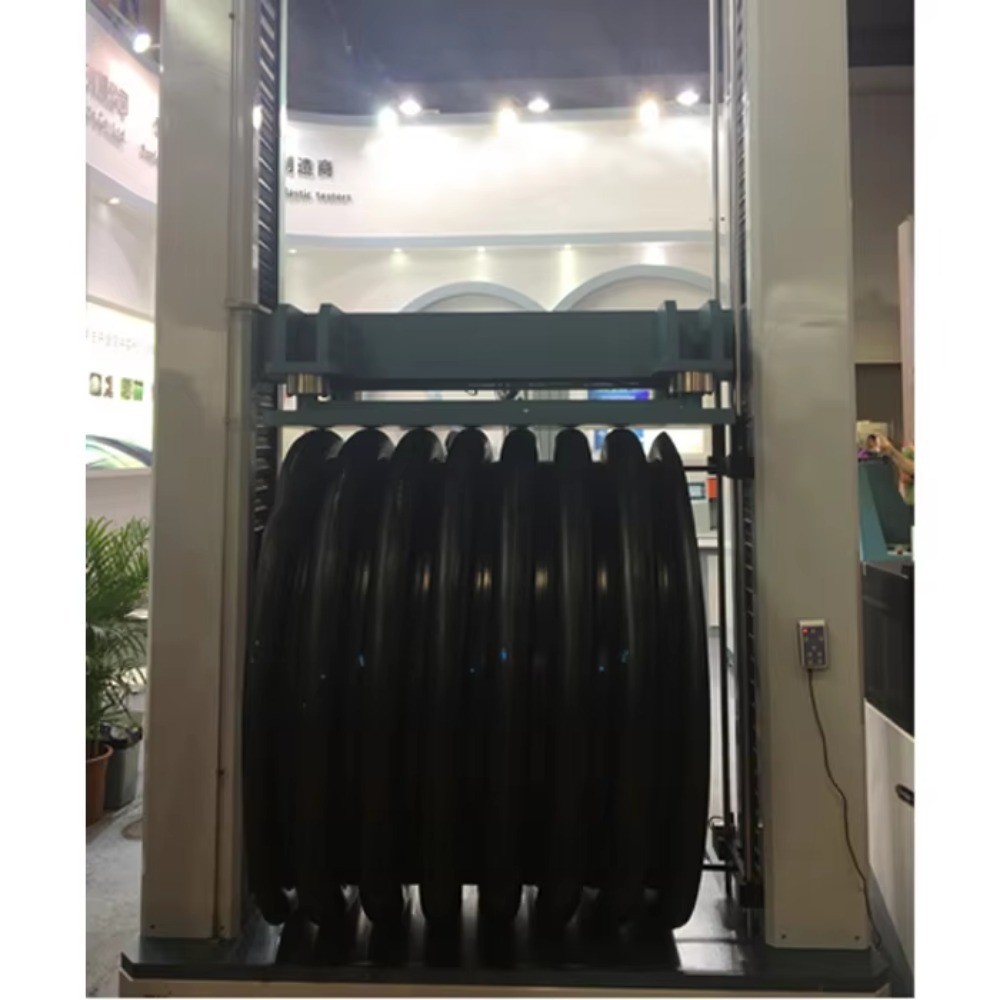

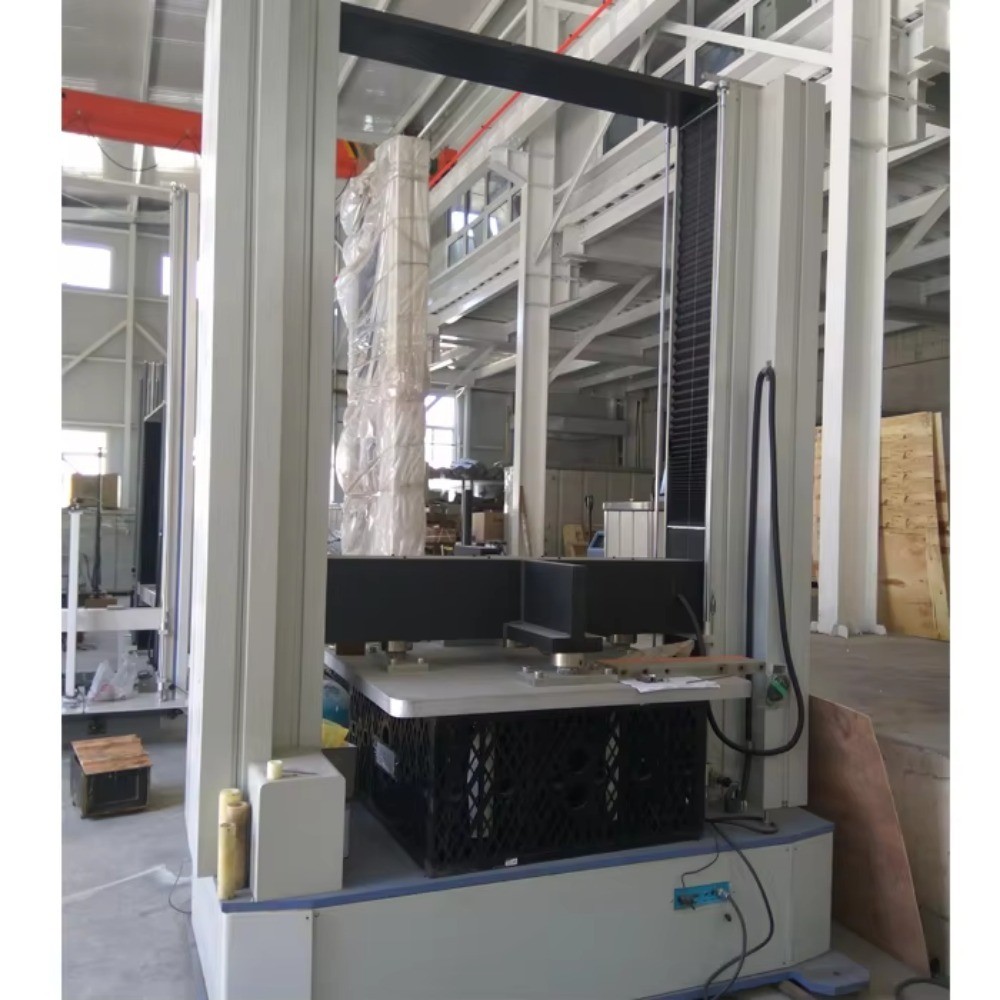

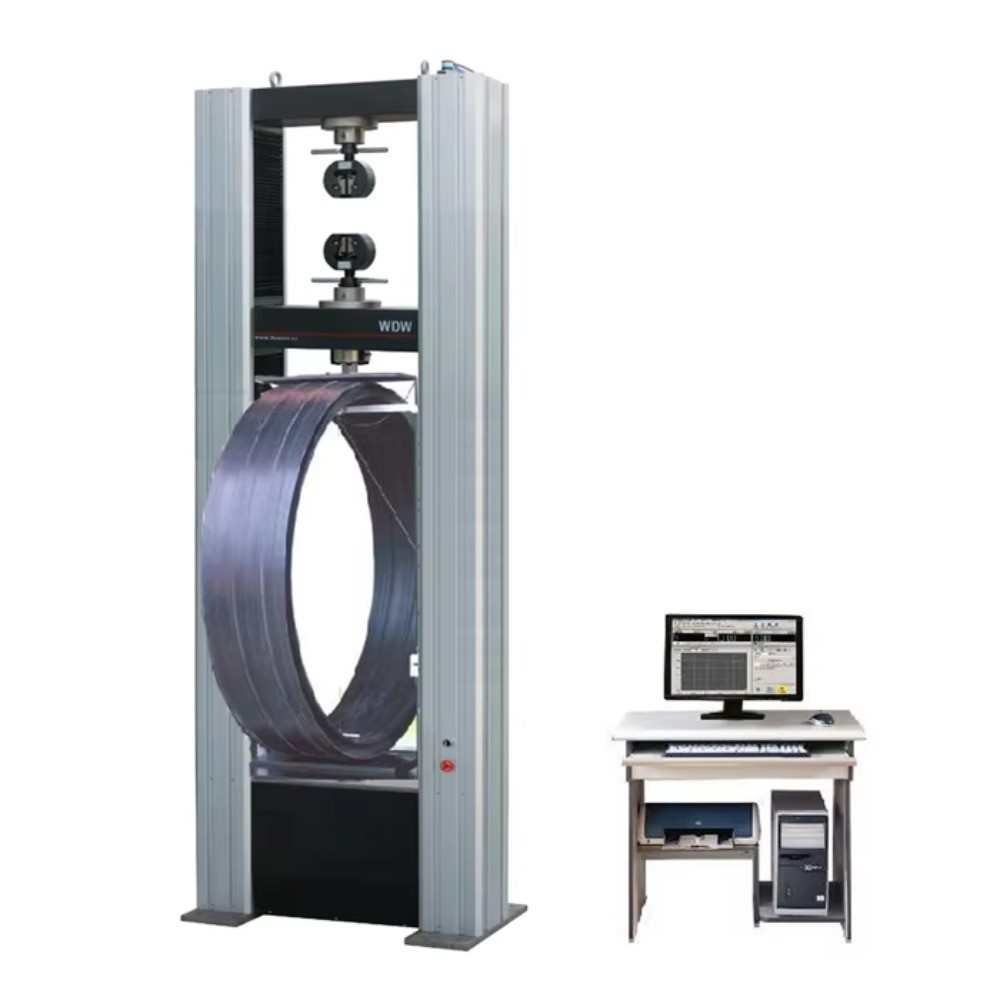

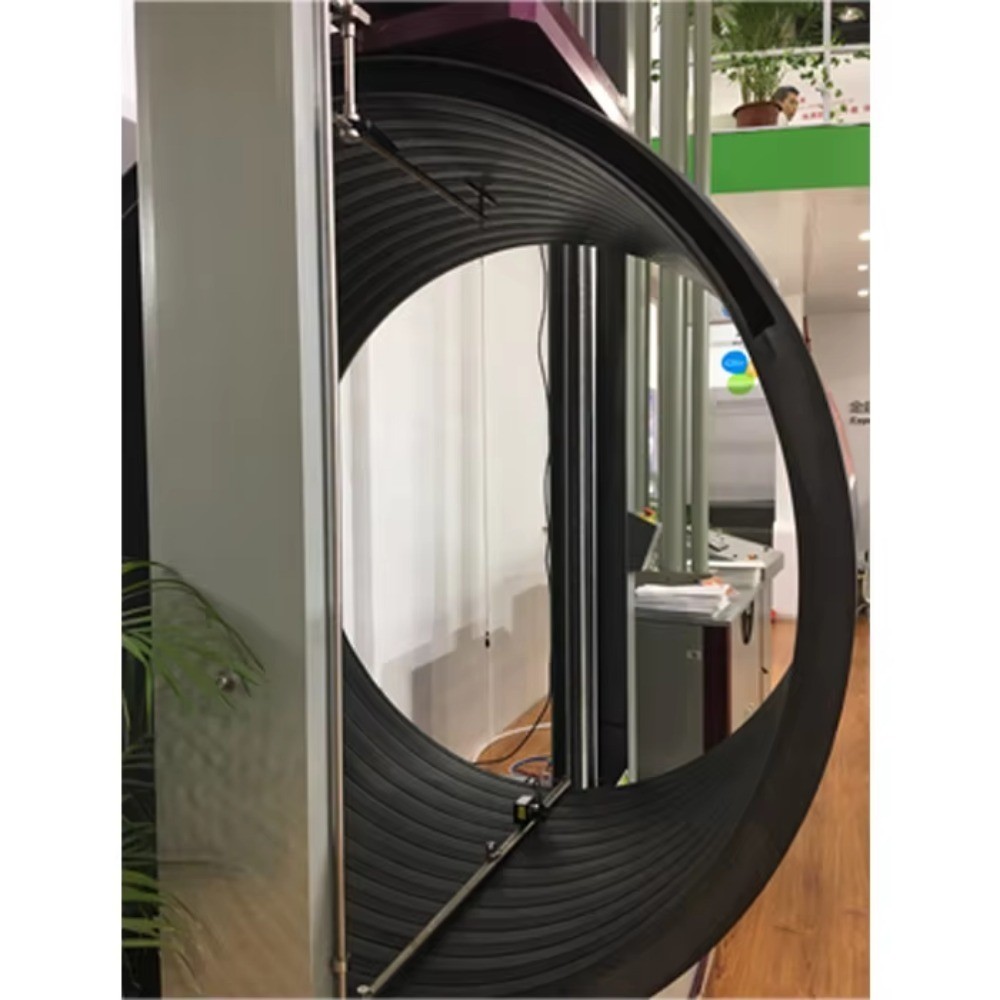

Ring Pipe Stiffness Testing Machine

Product Item : ZYSTM-600
Category： Plastic tester machine
Ring Pipe Stiffness Testing Machine
Pipe Stiffness Testing Machine
Stiffness Testing Machine
Stiffness tester
Product description：The plastic pipe ring stiffness testing machine is widely used in thermoplastic plastic tubing with circular cross-sections and stiffness for grass steel tubes. The tester can meet the standard requir
INQUIRY

Ring Pipe Stiffness Testing Machine Introduction

The plastic pipe ring stiffness testing machine is widely used in thermoplastic plastic tubing with circular cross-sections and stiffness for grass steel tubes. The tester can meet the standard requirement of PE arms bellows, winding pipe, and all kinds of tubular product standards and, at the same time, can do the tubular product ring stiffness, ring flexibility, flat, and tensile tests. With the function of key adjust the digital display for test force-displacement, value keeping, broken automatically stop, overflow, overload automatically protection.

Ring Pipe Stiffness Testing Machine Technical Data

Model No.	ZYSTM-600
Max loading	100KN(customized)
Accuracy degree	Better than 1 grade
Effective force testing range	0.2%~100%
Force accuracy	Within ±1 of the Value
Effective testing width of the pipe	600mm (can be widened according to customers’ requirements)
Effective testing diameter of pipe	3000mm (Can be customized according to customers requirement)
Range of testing speed	Servo motor speed:0.01~500mm/min
Measuring the accuracy of displacement	Within ±1% of the Value
Deformation measuring accuracy	≤±(50+0.15L)
Testing bench safety device	Electronic limit protection
Testing bench return function	Manual or automatic two choices, after finishing test, can return to the testing initial position with the highest speed by Automatic and manual control.
Overload protection	If the overload is 10% of the max loading, the machine will turn on the automatic protection.
Jigs	compression fixture( one set)
Mechanical dimension	900×800×4380mm(LWH)[Customized]
Power supply	220V,50HZ,
Power	0.75KW(Equipped with different power motor, according to the force requirement)
