Heating and Drying Ovens

Product Item : ZY-30BE
Category： Other
Heating and Drying Ovens

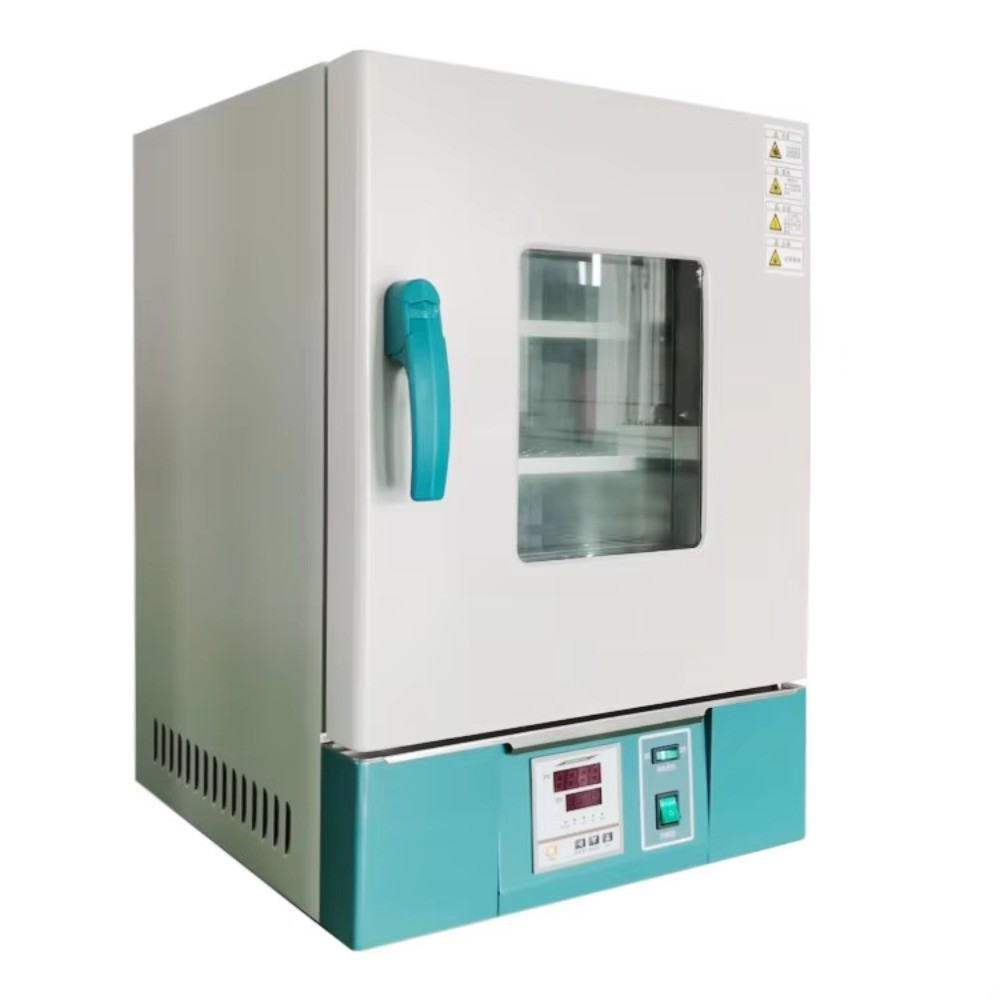

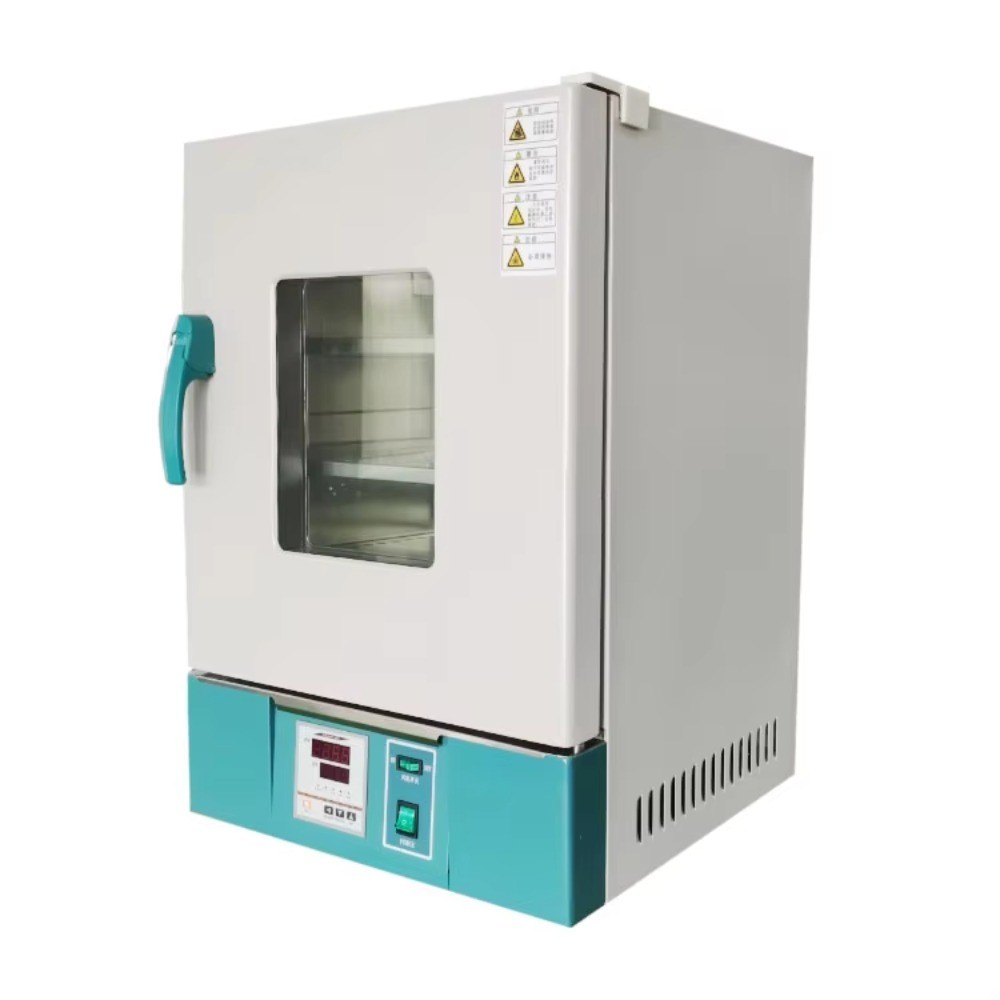

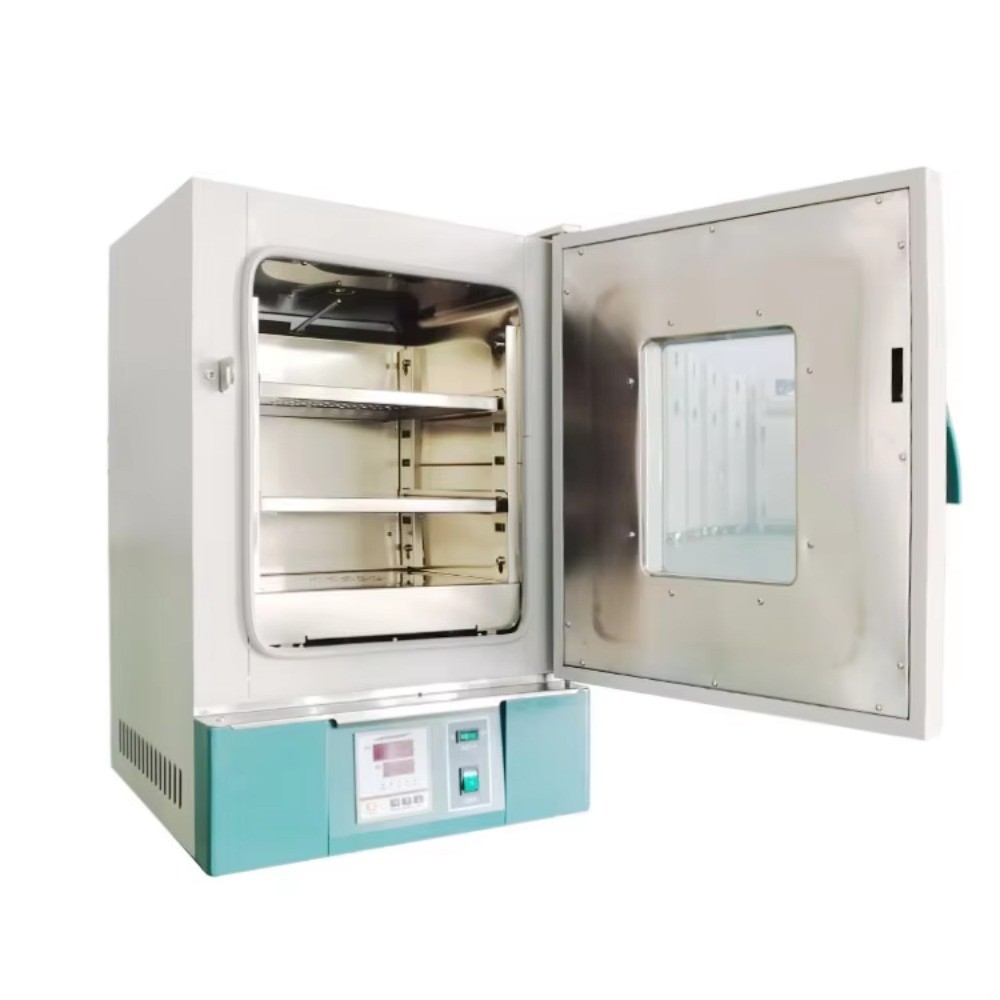

hot air drying oven
Product description：Heating and drying ovens are used for simultaneously heating and drying samples. We have different optional for drying oven volume 30L, 45L, 65L, 85L, 125L and 230L.
INQUIRY

Product Introduction

Heating and drying ovens are used for simultaneously heating and drying samples. We have different optional for drying oven volume 30L, 45L, 65L, 85L, 125L and 230L.

Product Features

1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.

2. PID controller, with over-temperature protection function.

3. With fan switch, LED digital display, high temperature blast motor.

4. New anti-hot solution

Extra Features for BE Series

1. LCD temperature controller.

2. Four grades speed fan, adjustable for different requirements.

3. Over-temperature protection system.

4. High precision digital independent temperature limiter.

5. SUS304 Stainless Steel Body.

Hot Air Drying Oven Technical Data

Model		ZY-30B	ZY-45B	ZY-65B	ZY-85B	ZY-125B	ZY-230B
Model		ZY-30BE	ZY-45BE	ZY-65BE	ZY-85BE	ZY-125BE	ZY-230BE
Cycle Mode		Forced convection
Function	Temp. range	RT+10-300ºC
	Temp. range	RT+10-300ºC
	Temp. Resolution Ratio	0.1ºC
	Temp. Motion	±1ºC
	Temp. Uniformity	±2.5%

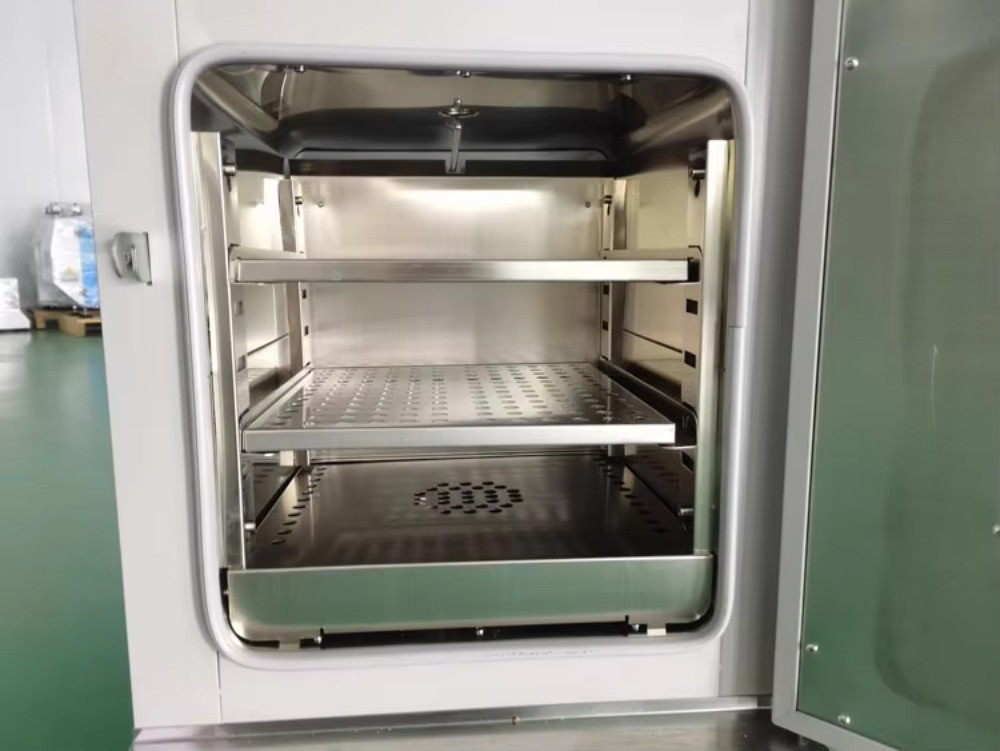

Structure	Inner Chamber	Mirror Stainless Steel
	Inner Chamber	Mirror Stainless Steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	High quaility rock wool board (with CE)
	Heater	stainless steel heater
	Power rating	0.8kW	1.2kW	1.6kW	2.0kW	2.3kW	3.0kW
	Exhaust hole	φ28mmtop(with function of test hole)
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	B model:LED Digital Display
	Temp. display mode	BE model: LCD Digital display
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Additional Function	B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
	Additional Function	BE model: High precision digital independent temperature limiter, 4grades 3speed adjustable-speed fan (GX230BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, intermal parameter locking, power-off parameter memory
	Sensor	Pt100
Specification	Inner Chamber size(WLH) (mm)	310310 310	350350 350	400360 450	450420 450	500450 550	600500 750
	Inner Chamber size(WLH) (mm)	310310 310	350350 350	400360 450	450420 450	500450 550	600500 750
	Exterior size (WLH)(mm)	460510 695	500550 735	550550 840	590610 830	636680 915	730680 1250
	Packing size (WLH)(mm)	550585 845	590625 885	640635 985	690695 985	740725 1085	860790 1400
	Volume	30L	45L	65L	85L	125L	230L
	Shelf number	6	7	9	9	13	17
	Load per rack	15kg
	Shelf space	35mm
	Current rating (50/60HZ)	AC220V/ 3.6A	AC220V/ 5.5A	AC220V/ 7.2A	AC220V/ 9.0A	AC220V/ 10.5A	AC220V/ 13.6A
	NW/GW (kg)	33/37	37/43	44/49	50/56	60/66	94/120
Accessory	Shelf	2
	Shelf	2
	Shelf frame	4
Optional Accessories		B model: Shelf; BE model: Shelf, RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage
