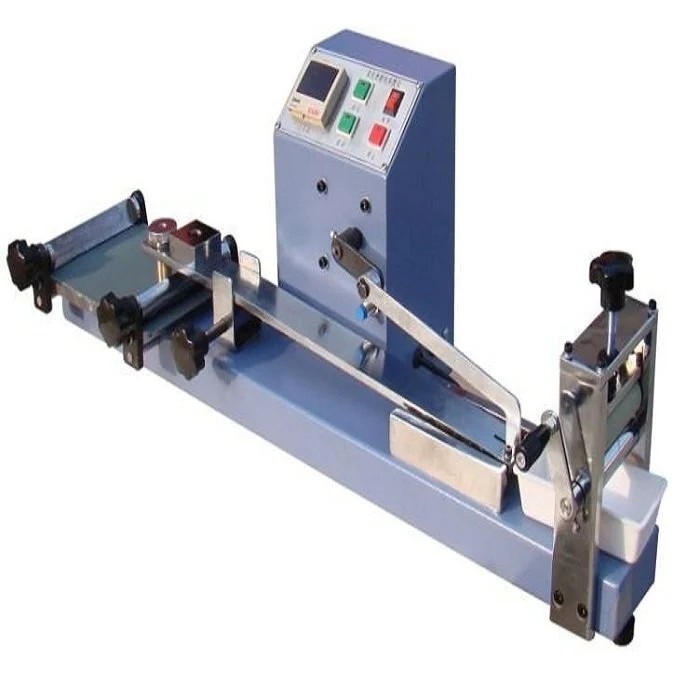

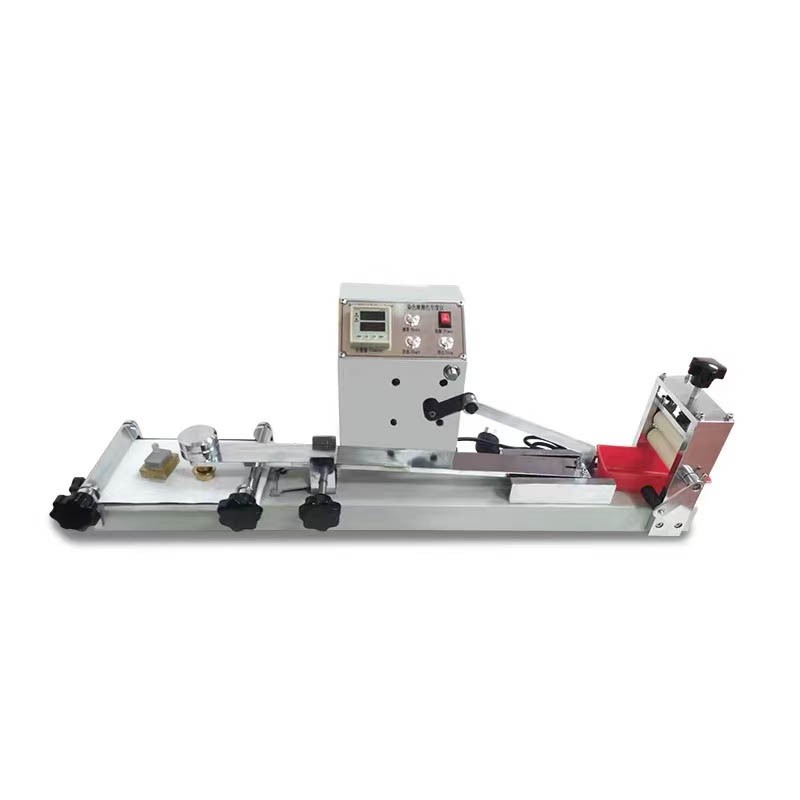

Electronic Crockmeter / Rubbing Colour Fastness Tester

Category： Products
Electronic CrockMeter
Crockmeter
Crockmeter machine
Colour Fastness Tester
Product description：Electronic Crock Meter is designed for textiles, fabric, leather, electro chemical metal plate, printing and other industries products to do the color fastness to rubbing test evaluation.
INQUIRY

Product Introduction

It is designed for testing the color fastness of colored fabrics such as cotton, chemical fibers, and blends through dry and wet rubbing and brushing.

Standards

ISO 105X12, GB/T 3920, GB/T 5712, AATCC 8, AATCC 165, BS 1006 D02.

Instrument Features

1. The crankshaft is made of high-quality tool steel, effectively reducing mechanical wear caused by years of use.

2. It uses a high-quality Shanghai Jinling joint venture motor, reducing the failure rate caused by poor electrical components.

3. The 600-grit sandpaper is easily adhered using a simple adhesive method, preventing slippage and facilitating replacement.

4. The instrument comes with a small grinding wheel for added convenience.

Technical Data

No.	Parameter Name	Parameter Value
1	Friction Head Diameter	Φ16±0.1mm (Round); 19mm×25.4mm (Rectangular)
2	Friction Head Pressure Weight	9N±0.2N
3	Friction Head Stroke	104mm±3mm
4	Reciprocating Speed	60±3 times/min
5	Test Bench Liner Thickness	0.25mm (Water-resistant Fine Sandpaper)
6	Reciprocating Times Setting Range	1～9999×100
7	Power Supply	AC220V±10% 50Hz
8	Whole Machine Power	20W
9	Overall Dimensions	750×200×200mm
10	Net Weight	21kg
