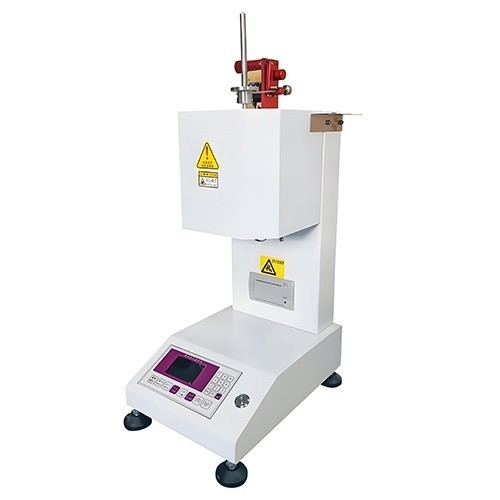

Melt Flow Index Tester

Product Item : MF-450
Category： Other
Melt Flow Index Tester
Melt Flow Tester
Product description：
INQUIRY

Melt Flow Index Tester is used to test the flowability of thermoplastic polymer under high temperature, such as polyethylene, polypropylene, pom, ABS resin, polycarbonate, nylon fluorine and other plastic polymers. The automatic temperature control methods of the machine three kinds of blanking ways, manual, timing and automatic control according to operation method, which can realize melt-mass flow rate (MFR) and melt-volume flow rate (MVR) two test methods.

Test Standard

ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)

Technical Data

Testing range	0.1-800.00g/10min (MFR); 0.1-800.00 cm3/10min(MVR)
Temperature range	0°C-450°C
Controlling Accuracy	±0.2°C
Timing accuracy	0.1s
Displacement accuracy	0.01mm
Standard loads	325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g
Combination load	325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g
Material cutting method	Manual, timing and automatic cutting
Barrel diameter	2.095±0.005mm
Outlet length	8.000±0.025mm
Charging barrel diameter	Φ9.550±0.025mm
Weight accuracy	±0.5%
Power supply voltage	AC220V±10% 50HZ
Accessory	One set computer& software, one tool box, one piece operation video CD and one piece English manual
Design standard	GB/T3682-2000；ISO1133-97、ASTM1238

Melt Flow Index tester is used to determine the MFR value of melt flow rate in the viscous flow state of various polymers, it is applicable to the high melting temperature of polycarbonate, poly-aryl sulfone, fluorine plastic, nylon and other engineering plastics, also applicable to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, poly (POM), polycarbonate (PC) Resin, such as low melting temperature of plastic testing, widely used in plastic production, plastic products, petrochemical and other industries.
