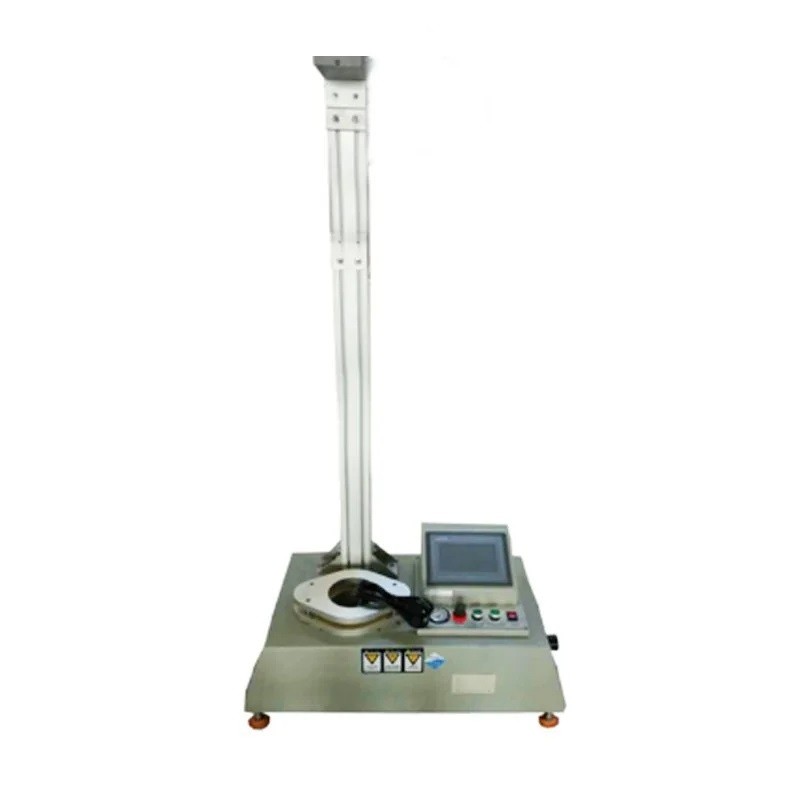

Fall Dart Impact Tester

Product Item : DIT-2000
Category： Other
Dart Impact Tester
Fall Dart Impact Tester
Fall Dart Impact testing machine
Product description：Fall dart impact testing machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.
INQUIRY

Fall Dart Impact Tester Applications:

Fall dart impact tester is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

Fall Dart Impact Tester Technical Data

Testing range	Method A ,50-2000g; Method B,300-2000g (optional)
Testing accuracy	0.1g (0.1J)
Testing method	Method A, Method B (optional)
Specimen size	＞150mm×150mm
Diameter of impacting head	Method A:Ф38±1mm, Method B:Ф50±1mm(optional)
Diameter of dart shaft	Ф6.5±0.1mm
Inner diameter of specimen fixture	125±2 mm
Impacting height	Method A : 0-600mm, Method B: 0-1500(optional)
Power	Single phase, 220V, 50Hz
Estimated Weight	70kg
Specimen Fixture	Pneumatic
