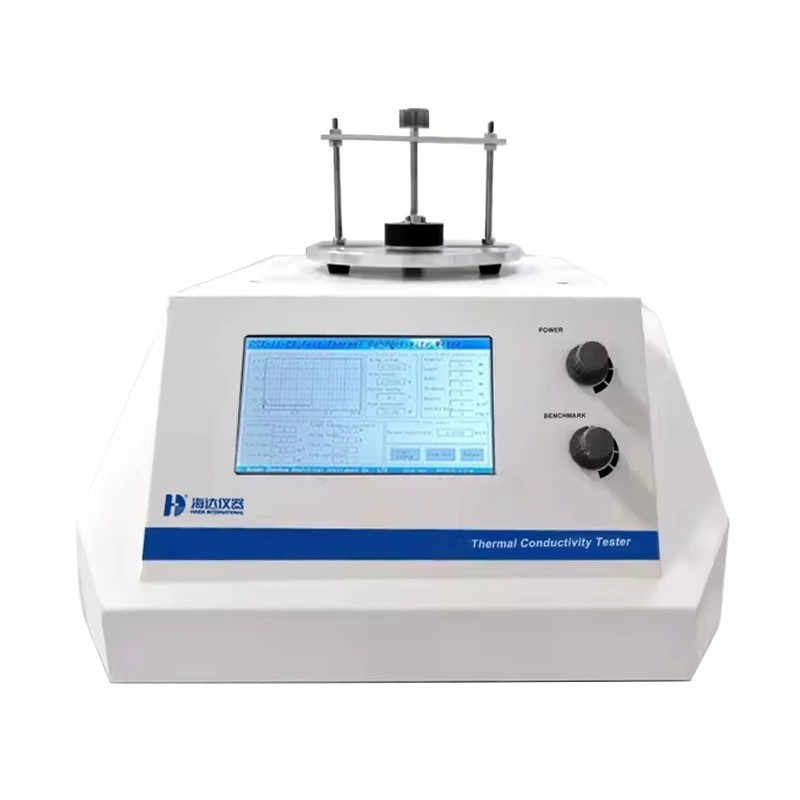

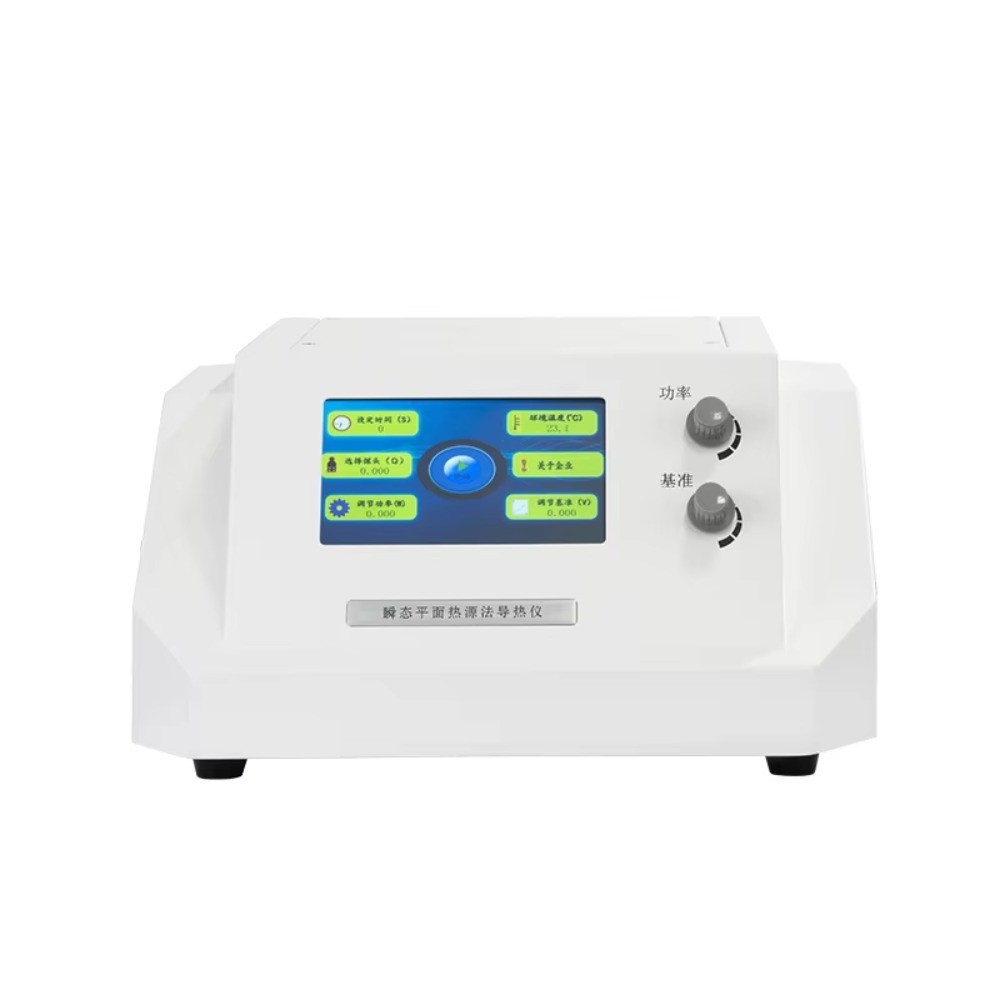

Thermal Conductivity Meter

Product Item : TC-351
Category： Other
Thermal Conductivity Meter
Thermal Conductivity tester
Thermal Conductivity
Product description：Thermal conductivity meter is suitable for thermal conductivity testing of a wide range of materials, with the advantages of fast and accurate, non-destructive testing and simple sample preparation.
INQUIRY

Thermal conductivity meter is suitable for thermal conductivity testing of a wide range of materials, with the advantages of fast and accurate, non-destructive testing and simple sample preparation. The instrument follows ISO22007-22008 and GB/T32064-2015 standards, with a wide testing range (0.005-300W/(m*K)) and short testing time (5-160 seconds).

Application

Metals, ceramics, alloys, minerals, polymers, composites, paper, fabrics, foams (smooth surface insulation, sheets), mineral wool, cement walls, glass-reinforced composite panels CRC, cement polystyrene panels, sandwich concrete, glass and steel plate composite panels, paper honeycomb panels, gels, liquids, powders, granules, and paste solids.

Thermal Conductivity Meter Features

Fast and accurate: test can be completed in 10-160S

Non-destructive testing: samples are undamaged and can be reused.

Simple sample preparation: no special requirements for sample size.

Wide range of test objects: can test lump solids, granular solids, liquids, powders, colloids, pastes

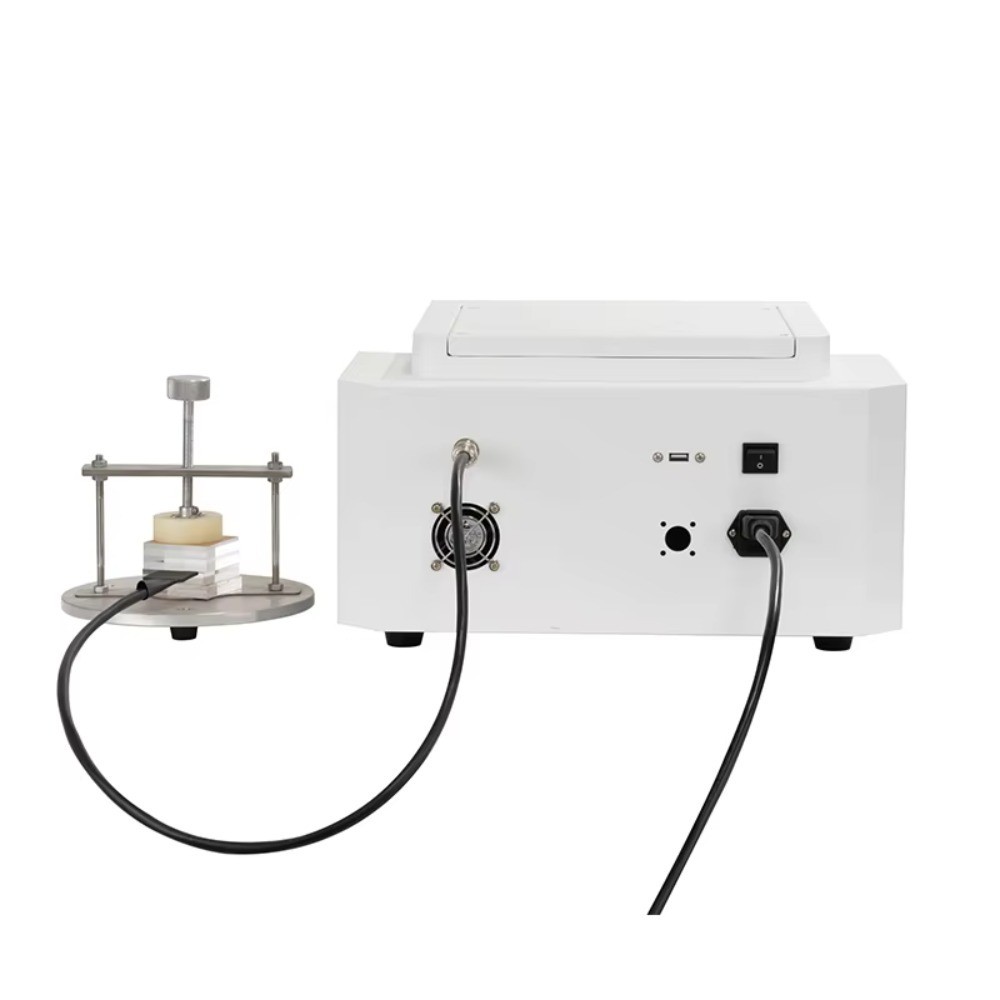

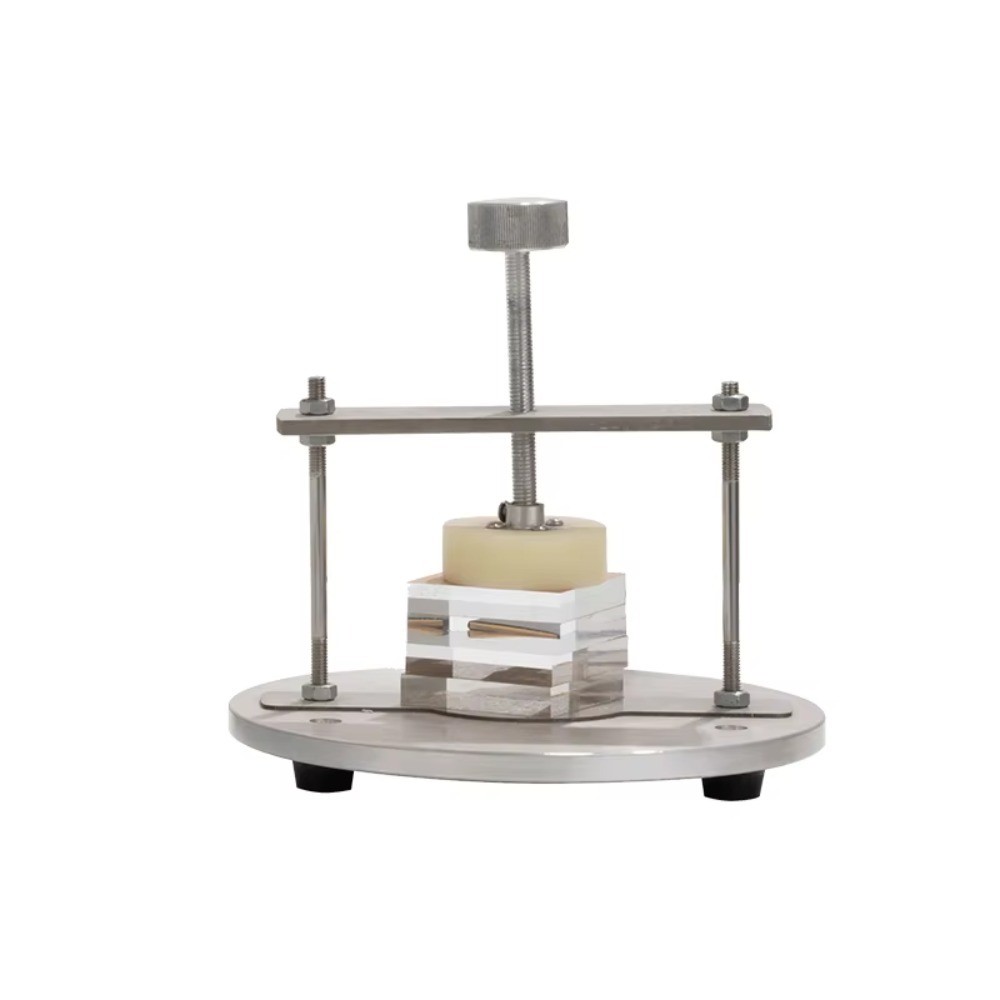

High flexibility: independent sample holder, detachable probe, flexible testing

Thermal Conductivity Meter Technical Data

Test range	0.005—300W/(m*K)
Test mode	A: Room temperature
Test mode	B: RT~120℃ (Required other temp. Control device)
Probe diameter	A-Diameter: 7.5 mm
	Test range: ≤0.2W/(M*K)
	Recommended sample size ≥15153.75 mm
	B-Diameter: 15 mm
	Test range: ＞0.2W/(M*K)
	Recommended sample size ≥30303.75 mm
Resolution	±3%
Repeatability error	≤3%
Test time	5~160 sec
Power	AC 220V
Power rate	＜500W
External dimension(WHD)	504120 cm
