Full-automatic Total Migration Tester

Introduction

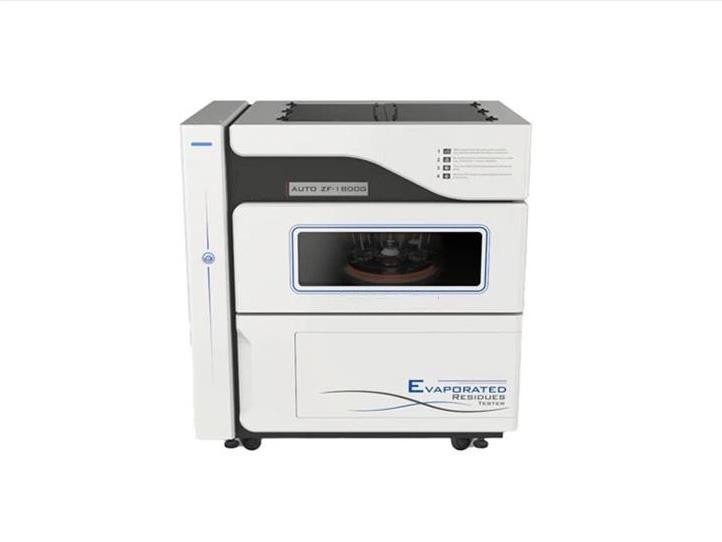

Full-automatic Total Migration Tester ZHIYI-822has an integrated system design of water bath evaporation, heating, drying, cooling, and constant temperature weighing. The testing process is fully automated without manual operation. It is suitable for testing the overrall migration (non-volatile matter, evaporation residue) and other items in the fields of purified water, pharmaceutical packaging materials, food packaging, cigarette tipping paper and chemical reagents. It can also be applied to the water content, loss on drying and other items of solid samples, and the total dissolved solid content test in water quality testing.

Test Principle

Put the solution to be tested into the solvent storage dish of the automatic feeding system, and the empty cup is heated, cooled and weighed at the set temperature. Repeat the steps until a constant weight value is reached. Evaporate to dryness on a water bath below the boiling point of the soaking liquid. The cavity is heated to 105°C, dried and cooled. After the evaporating dish is cooled, the constant weight is judged with a balance (sensitivity is 0.01 mg), and the experiment is terminated to meet the constant weight requirement of the project.

Standard

Specifications

Features

Cool and Hot Dual Cavity Integrated Control System, Automatic Upgraded

Featuring with an integrated system of water bath evaporation, drying, cooling and constant weight, the testing is automatic, high efficiency and precise.

Automatic feeding mechanical design, pneumatic valve control feeding, the residual amount is less than 0.1 mL, the testing does not need to wait and manual duty.

The cavity has a built-in water bath, which can automatically detect the water level through the liquid level sensor, automatically add water to replenish water and drain, and automatically control the temperature of the water bath.

High-precision Imported Balance, Isolation Protection Design

There are 3 built-in high-precision imported balances with a resolution of 0.01 mg, and the 2-round drying process can reach a constant weight of 0.3 mg.

The balance is placed in a fixed and stable protective cover with a water circulation compartment. When weighing, the temperature and humidity are stable.

Meet High-throughput, High-availability Testing Needs

Equipped with 18 testing stations with independent data, which can meet the needs of high-throughput testing.

The sample to be tested can be purified water or organic solvent such as n-hexane, ethanol, acetic acid, chloroform, etc.

Cooling Recovery System, Efficient Solvent Recovery

The built-in circulating water cooling pump continuously supplies circulating water to keep the cavity low temperature. Efficient and environmentally friendly, it can be cooled to room temperature within 30 minutes.

Equipped with a solvent recovery bottle, the solvent recovery rate is over 90%.

Smart Operating System, Global Certification

Real-time display of weighing data, temperature curve, humidity curve, real-time storage of temperature and humidity, weighing data, easy to query.

According to GMP appendix computer system design, test process parameters can be set flexibly to meet different standard requirements.

Audit trail (log tracking, test tracking) can meet the needs of data traceability. The system permissions can be set.

Supports data output in multiple formats, electronic signatures, and online submission of audit reports.

Laboratory Intelligent IoT Platform

The instrument can be connected to the IoT platform to realize network digital management.

Remotely log in to the IoT platform and authorize to enter the instrument software interface, which can manage experimental data and remotely diagnose faults.

Application
