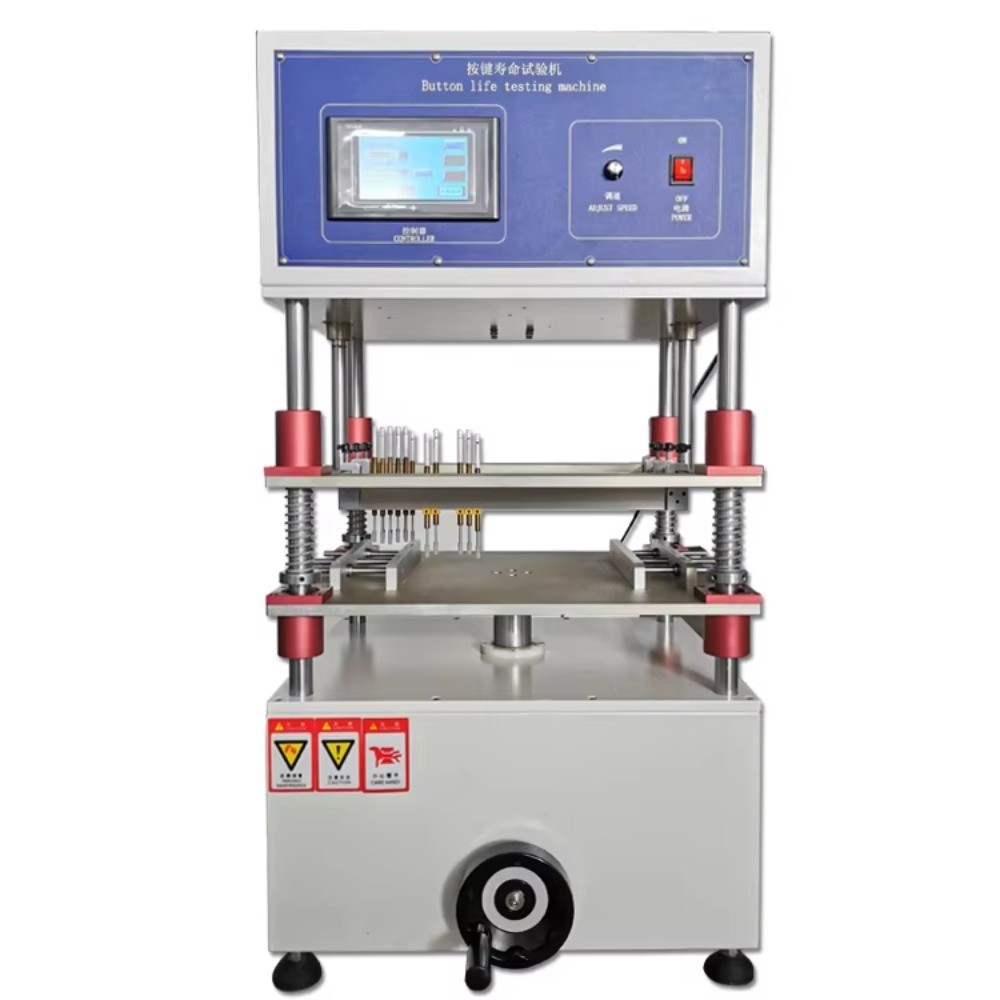

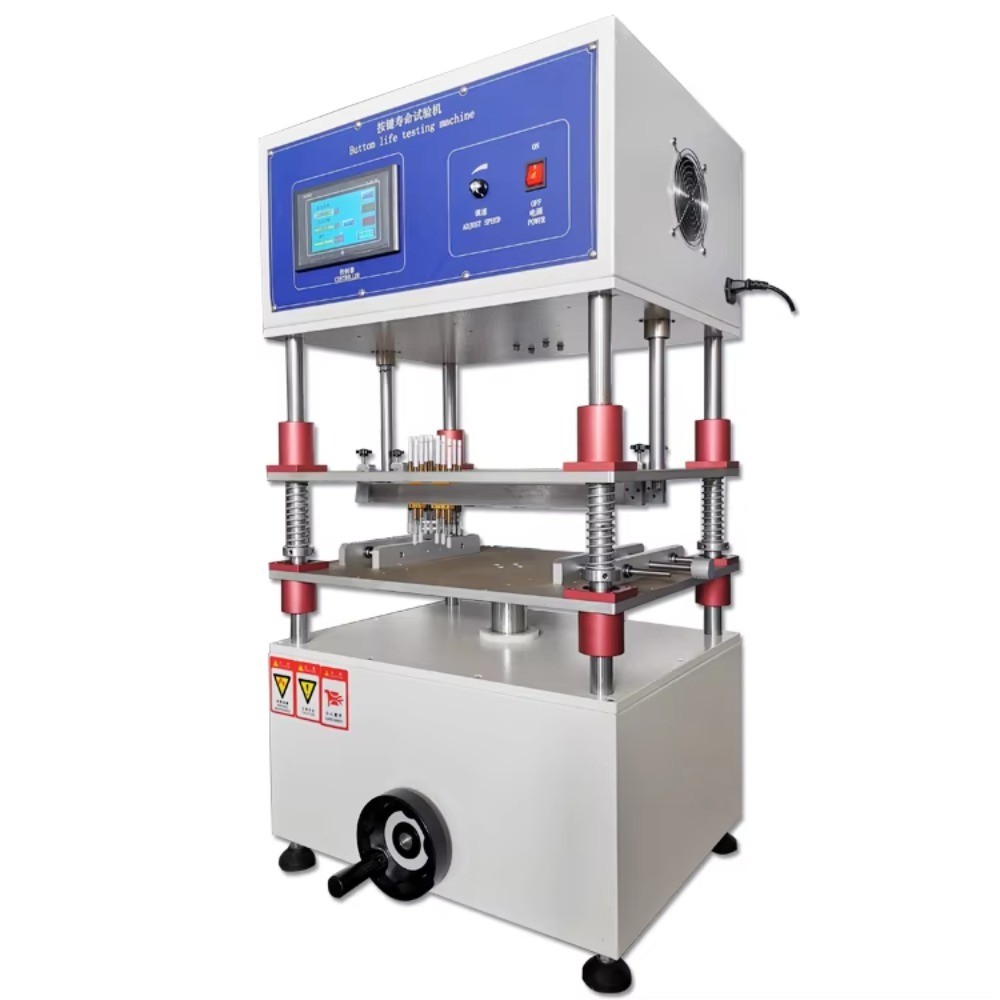

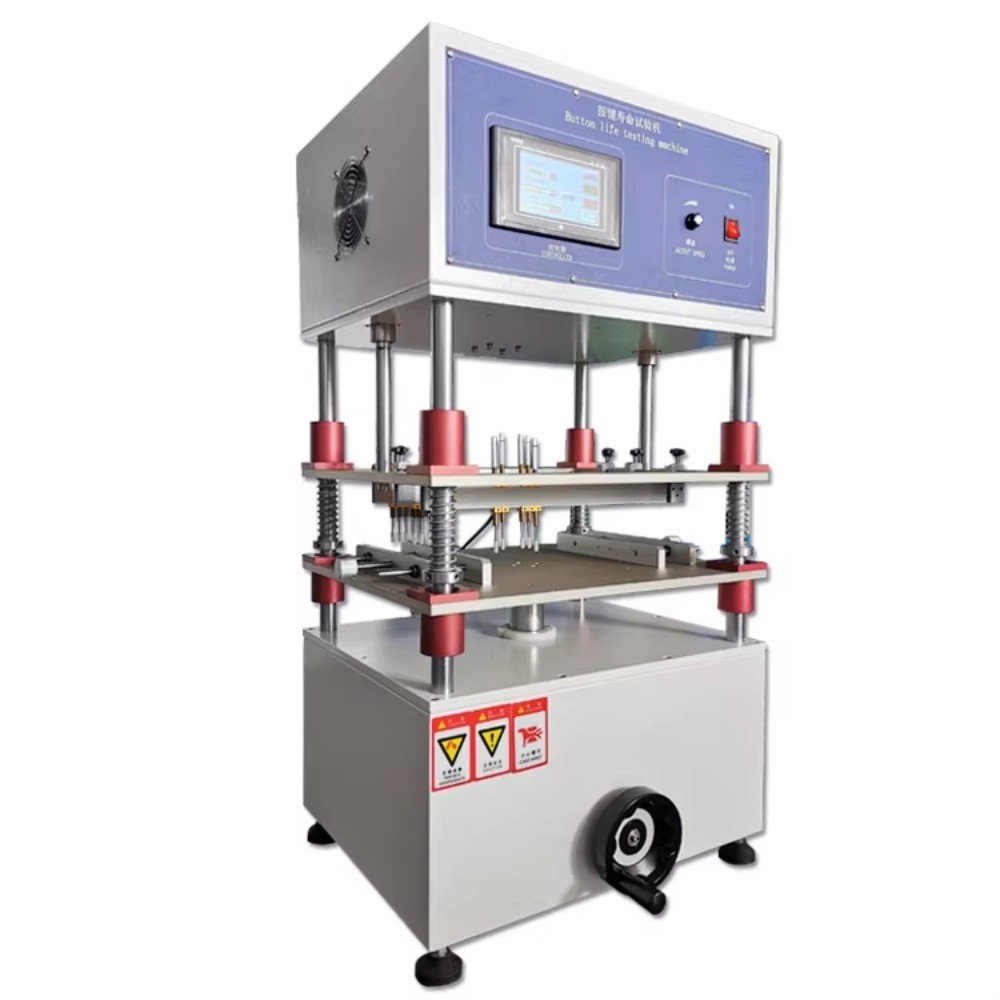

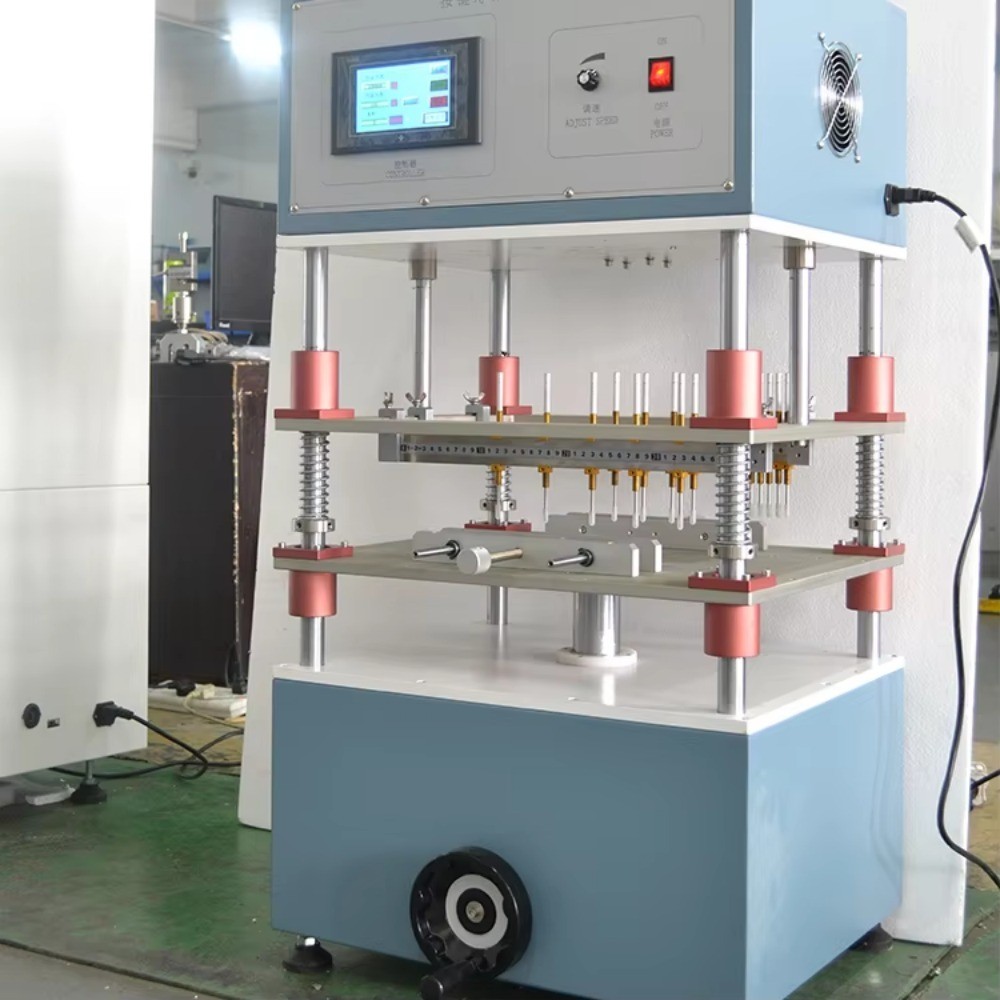

Keyboard Key Life Tester

Product Introduction

This machine is suitable for key life testing of computer keyboards, keyboards, notebook keyboards, telephones and other key products. It can test multiple products at the same time, and each product can be tested at multiple points. Each key can set different load pressures and different pressure heights. With a variety of imported high-quality components, this is a device with high reliability, durability and precision.

Standard

GB/T4967-95-- JIS IEC standard for silicone rubber and critical life test.

Control System

1. Imported electrical components
2 display: actual running speed, actual number of settings, actual number of tests, residence time (last residence time can be set), and other test parameters and data;
3. Setting: Set the running speed, the number of settings (the number of times the machine is automatically shut down), the residence time and other test parameters/data;

2. PLC: Adopt Japan Mitsubishi PLC, high reliability and durable;

3. Angle: The angle measurement is carried out with a Japanese line photoelectric encoder, which has high accuracy.

Features

1. Driven by Japan Panasonic motor (the world's leading motor), low noise, durable to use, high positioning accuracy, large torque, can be used for a long time;
2. Adopt Japanese synchronous belt transmission, high efficiency, smooth operation, low noise, to ensure that both sides do not shake;
3. The working fixed platform is adjustable;
4. Weight keystroke, adjustable output accuracy, high hitting accuracy, true reflection of key mechanical fatigue life;
5. The machine is supported by Japanese NHK high-steel bearing steel, and the Japanese NSK linear bearing transmission is durable;
6. Aluminum test bench, anodized, surface with wear and texture, equipped with a perforated keypad for positioning;
7. Due to the authoritarian transmission design, the maximum attack speed can reach 600 times/min, which greatly improves the testing efficiency and shortens the test time;

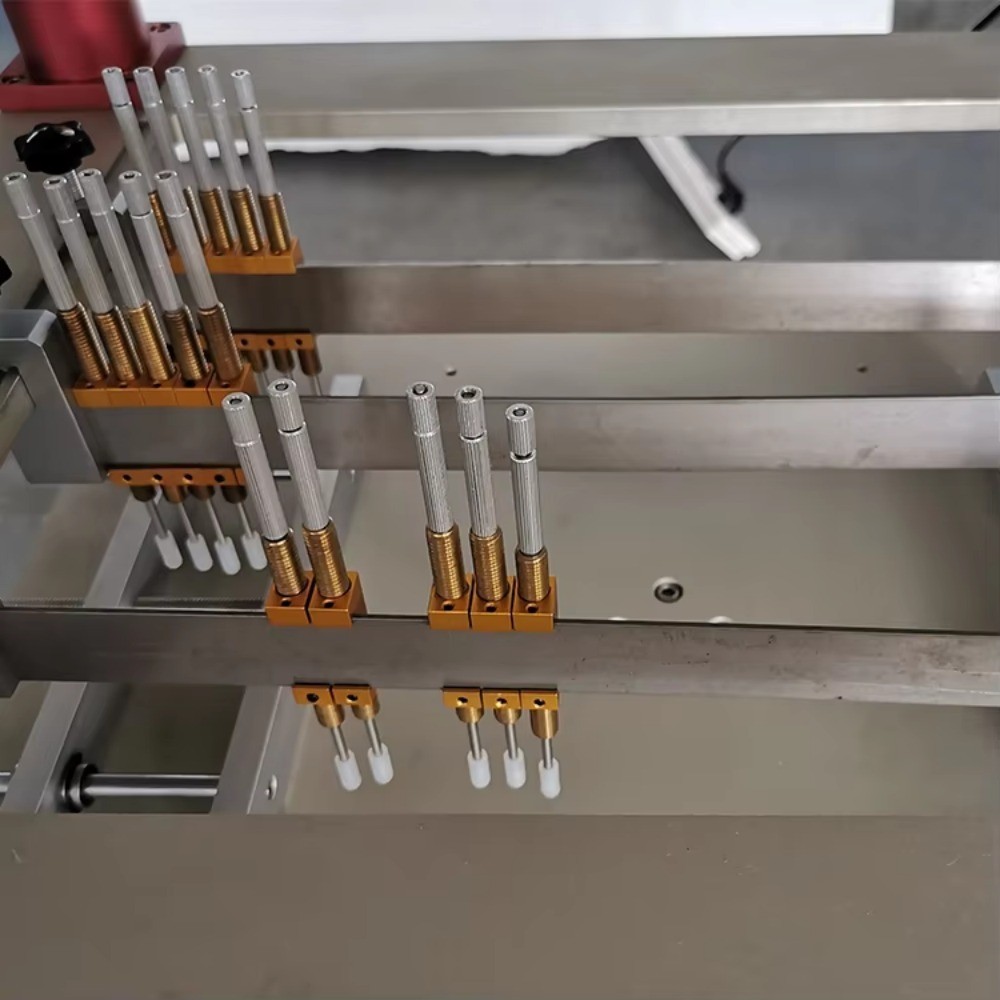

8. Slider design, can move forward and backward, weight can be moved left and right in the slider, basically any key can be measured; Matching special test fixtures, using aluminum, customizing each key of the keyboard and clamping quickly can improve the testing efficiency.

Technical Data
