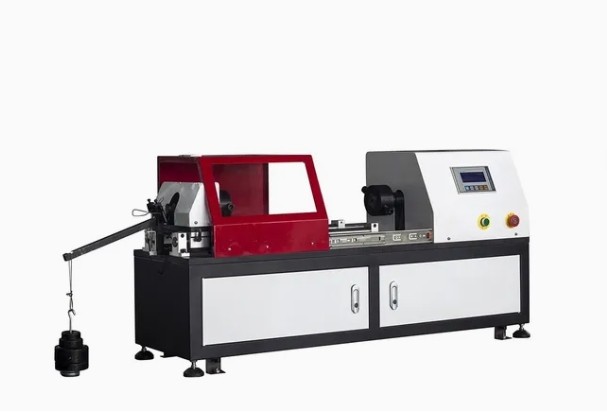

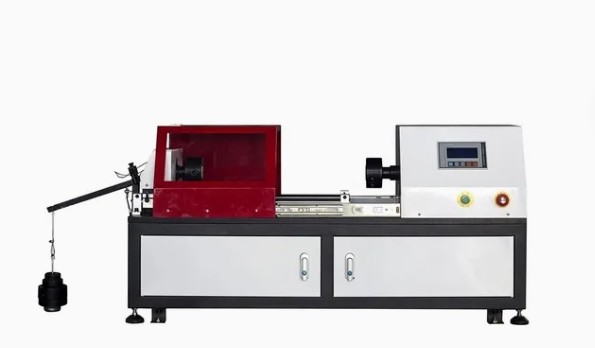

Multi-Function Wire Torsion Test Equipment

Product Item : ZHIYI-1209
Category： Other
Product description：200Km computer controlled material torsion testing machine is mainly used for testing the torsional mechanical properties of materials and finished products at room temperature, and can also be used f
INQUIRY

1.Application

200Km computer controlled material torsion testing machine is mainly used for testing the torsional mechanical properties of materials and finished products at room temperature, and can also be used for performance tests of torsional failure of materials and finished products. The test specimen is installed between fixtures with adjustable space, which can adapt to the test of torsional mechanical properties of different test specimens.

2. Technical Parameters

Model	ZHIYI-1209
Torque measurement range	2Nm-200Nm
Torque reading	0.01Nm
Test torque resolution	1/200000
Relative error of torque indication	±1.0%
Relative error of torque repeatability	±1.0%
Relative error of angle indication	±1.0%
Test speed	0.05-720*/min
Coaxiality of the two chucks	≤00.3mm
Power supply	AC 220V+10% , 50Hz
Load accuracy	Class 1
Main body size (mm)	950350 370mm
