Home Products Paper, Packaging & Print Paper Testing Equipment / Elmendorf Tear

Paper Testing Equipment / Elmendorf Tear Strength Tester With ASTM D1424 for Fabrics Textile

Product Item : ZHIYI-706
Category： Paper, Packaging & Print
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Product description：Paper-Testing-Equipment--Elmendorf-Tear-Strength-Tester-With-ASTM-D1424-for-Fabrics-Textile
INQUIRY

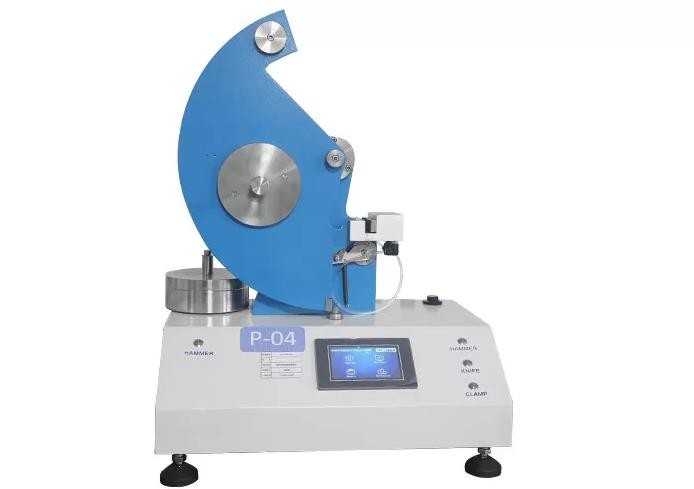

Paper Testing Equipment / Elmendorf Tear Strength Tester With ASTM D1424 for Fabrics Textile

Specificatoin

1. Accurate, low-cost and high quality
2.Suitable for fabrics and textile
3. ASTM D 1424

The Usage

Tear Strength Tester are accurate, low-cost and high quality falling pendulum tear testing Instruments with analog display for the determination of the average force required to propagate a single-rip tongue-type tear starting from a cut in paper, cardboard, plastics, non-woven and woven fabrics, with proper configuration.

Tear Strength Tester meeting ASTM standards is suitable for most fabrics including woven, layered blankets, napped pile, blanket, and air bag fabrics, and provided the fabric does not tear in the direction crosswise to the direction of the force application during the test. The fabrics may be untreated, heavily sized, coated, resin-treated, or otherwise treated. This test method covers the measurement of the average force required to propagate a single-rip tear starting from a cut in a non-woven fabric using a falling-pendulum (Elmendorf) apparatus.

The Specification

Paper Tear Strength Tester

The scope of tear strength	A:0~32N(By installing a small hammer A)
The scope of tear strength	B:0~64N(Significant increase in heavy hammer to installB)
Tear length	43mm
Incision length	20±0.2mm
Sample size	100(L)×63(W)mm
Force accuracy	≤±1
Outside dimension	400(L)×210(W)×395(H)mm
Weight	About 30Kg
