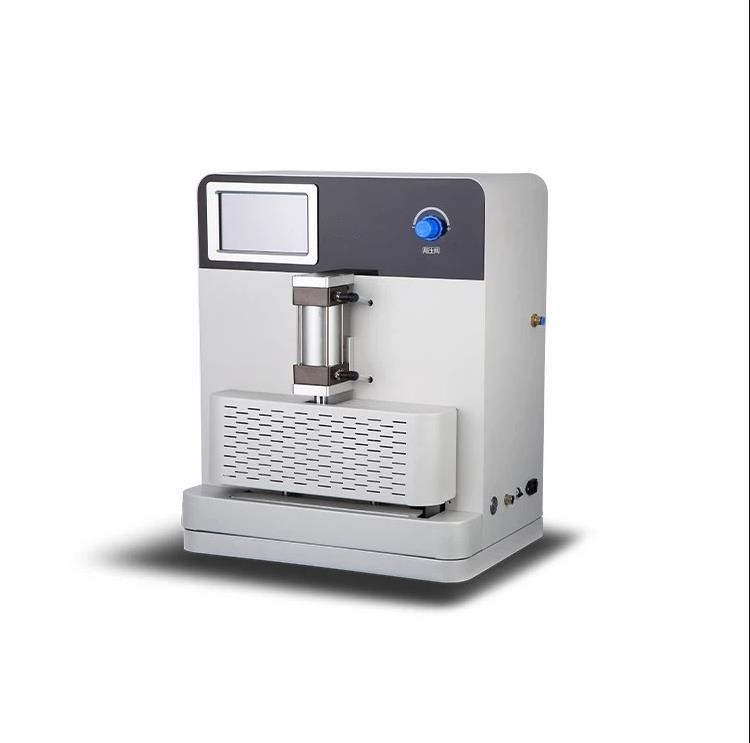

Plastic Bags Heat Seal Tester
- Product Item : ZHIYI-822
- Category： Paper, Packaging & Print
- Product description：Plastic Bags Heat Seal Tester ZHIYI-822 can be used to determine the heat sealing parameters including sealing strength, sealing pressure, and sealing temperature accurately for plastic film, flexible
Product details
|
Item |
Parameters |
|
Sealing Temperature |
Room temperature~250℃ |
|
Accuracy |
±0.2 ℃ |
|
Standards |
ASTM F2029, QB/T 2358, YBB00122003 |
|
Sealing area |
300mm × 5.5mm, smooth surface; (lower bar has silicone pad as buffer) |
|
Sealing time |
0.01s~99.99h |
|
Sealing Pressure |
0.05~0.8MPa |
|
Dimension |
700mm × 400mm × 540mm |
|
Heat seal method |
Two ways: automatic or manual,external air cylinder |
|
Power supply |
AC220V 50Hz |
Features
◆ Compressed air, pneumatic drive.
◆ Support upgrade heat seal bar with anti-sticking function.
◆ Independent heating control of upper, and lower sealing elements with separate indication of both temperatures.
◆ Customize dimension, shape and smoothness of heat seal bar.
◆ Export experimental data quickly with RS232 interface.
◆ Semi-automatic modes; foot switch.
◆ Digital P.I.D. temperature control technology make test accurately; easy operation of temperature calibration.
