Programable Heating and Cooling Muffle Furnace

Programable Heating and Cooling Muffle Furnace

Product Item : ZY-XA-27
Category： Other
Muffle Furnace
high temperature Muffle Furnace
Product description：The furnace ZY-XA-27 as shown in the figure integrates the control system and the furnace chamber. The furnace lining is made of vacuum-formed high-purity alumina lightweight material. The control
INQUIRY

Product Introduction

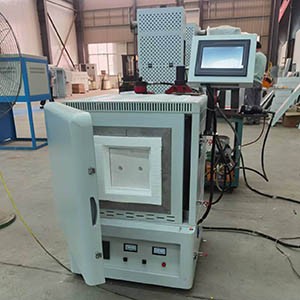

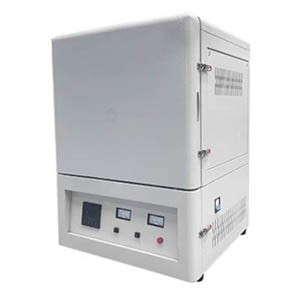

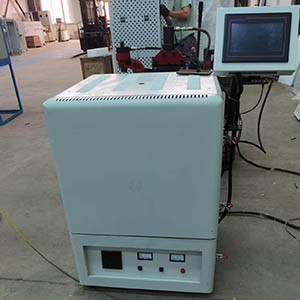

The furnace ZY-XA-27 as shown in the figure integrates the control system and the furnace chamber. The furnace lining is made of vacuum-formed high-purity alumina lightweight material.

The control panel is equipped with an intelligent temperature regulator, a power switch, a main heating start/stop button, voltage and ammeters, a computer interface, and an observation port/air inlet for continuous monitoring of the system's operating status. This product uses reliable integrated circuitry, providing a good working environment and strong anti-interference capabilities. The furnace shell temperature is ≤45℃ at its highest, significantly improving the working environment. It features microcomputer program control, programmable curves, fully automatic heating/cooling, and the ability to modify temperature control parameters and programs during operation, offering flexibility, convenience, and simple operation.

Temperature control accuracy: ±1℃ with no overshoot. Constant temperature accuracy: ±1℃. Rapid heating rate, with a maximum heating rate ≤30°C/min.

The furnace lining is entirely made of vacuum-formed high-purity alumina lightweight material, offering high operating temperature, low heat storage, resistance to rapid heating and cooling, no cracking or slag shedding, and excellent insulation performance (energy saving is over 60% of that of traditional electric furnaces). The rationally designed structure, with inner and outer double-layer furnace jackets and air-cooled heat dissipation, significantly shortens the testing cycle.

Application

It is a specialized piece of equipment designed for laboratories in universities and research institutes, as well as industrial and mining enterprises, for the sintering, melting, analysis, and production of ceramics, metallurgical, electronic, glass, chemical, mechanical, refractory materials, new material development, special materials, building materials, metals, non-metals, and other chemical materials.

Technical Data

Category	Specifications
Rated Temperature	1000℃
Max. Operating Temperature	1000℃
Temperature Sensor	K-type thermocouple, measuring range: 0 ~ 1320℃
Heating Element Position	Installed around the chamber
Temperature Control Accuracy	±1℃, integrated circuit control, no overshoot
Furnace Temperature Uniformity	±3℃, dual-point temperature control (bottom & surrounding area)
Heating Rate	Adjustable freely Max: 30℃/min Min: 1℃/h
Heating Element	Resistance wire
Power	380V, 3 phrase, 6kw
Furnace Body	Processed by CNC machine tools, finished with polishing, grinding, pickling, phosphating, powder coating and high-temperature baking. Two-tone appearance, anti-oxidation, acid & alkali resistant, corrosion resistant, high temperature resistant and easy to clean.
Furnace Structure	Advanced double-layer air-cooled structure with air guide baffles. Circulating cooling air cools down conductive parts of heating elements before exhaust, effectively preventing high-temperature oxidation and ensuring comfortable working environment.
Furnace Door	180° axial side opening. Equipped with elastic locks on the side for firm sealing. The elastic structure compensates thermal expansion of refractory materials and maintains tight sealing.
Refractory Lining	Vacuum formed high-purity lightweight alumina material. Features high service temperature, low heat storage, excellent thermal shock resistance, crack-proof, no slag falling and good thermal insulation. Energy saving efficiency is over 80% compared with traditional furnaces.
Outer Shell Temperature	Less than 45℃ during long-term continuous operation
Protection System	Integrated modular control unit with dual-circuit control & protection. Functions: anti-overshoot, thermocouple break protection, phase loss protection, overvoltage, overcurrent & overtemperature protection, current feedback and soft start.
Control System	Closed-loop SCR module trigger control (phase-shift trigger / zero-cross trigger). Continuously adjustable output voltage, current and power; supports constant voltage, constant current and constant power mode. Inner current loop and outer voltage loop limit output current within rated range against sudden load change, protecting heating elements from current & voltage impact and ensuring stable operation & high control precision.
Display Content	Real-time temperature, segment number, segment time, remaining time, output power percentage, voltage, current, etc.
Buttons	Imported buttons with LED indicators, service life ≥ 100,000 times
Temperature Curve Setting	Intelligent temperature controller with standard PID, APID and MPT regulation modes. Auto-tuning & self-learning function, no overshoot or undershoot. 30-segment program control, supports arbitrary heating/cooling slope, cycle, run, pause and stop. Program can be modified during operation. AI algorithm with curve fitting ensures smooth temperature curves.
Multi-Curve Storage	Standard 30 segments (customizable to 50 segments) 1 curve: 30/50 segments 2 curves: 14/28 segments per curve 3 curves: 9/15 segments per curve 5 curves: 5/9 segments per curve Multiple curves can be stored and called freely.
Communication Interface	RS485 interface, maximum communication distance: 1200m. Support computer remote control: start, pause, stop, curve setting & reading, parameter configuration. Rich display data: measured value, set value, output value, segment information, temperature curve and power curve. Curves and parameters can be saved, modified and recalled. Recording interval of historical curves & reports: 1s ~ 1h, long-term storage available.
Standard Accessories	1 × Crucible tongs, 1 × Pair of high temperature gloves, 1 × DVD data disc, Observation window, Air inlet pipe, 1 × Furnace bottom plate
Warranty	1-year free warranty for the whole furnace. Heating element: not covered by general warranty; free replacement for natural damage within 3 months.
Optional Accessories	1. Crucible, saggar, corundum / silicon carbide furnace plate 2. PC control software & hardware 3. Touch screen temperature controller 4. Consumables: heating elements
Notes	1. Recommended heating & cooling rate: 10-20℃/min. Excessively fast heating at high temperature will shorten service life of heating elements. 2. No vacuum sealing structure. Flammable and explosive gases are prohibited. 3. Tiny cracks on lining after long-term use are normal and do not affect operation. Can be repaired with alumina coating. 4. Corrosive gases are not recommended. Inform us in advance if strong corrosive gases (Sodium, Sulfur etc.) are required for special lining treatment. 5. Avoid high-temperature solution leakage onto furnace bottom; use bottom plate or alumina powder for isolation. 6. Place the furnace in dry and well-ventilated area.
Packing List	1 × Box furnace, 1 × Crucible tongs, 1 × Pair of high temperature gloves, 1 × DVD data disc, Observation window, Air inlet pipe, 1 × Furnace bottom plate, Operation manual, Certificate of conformity, Factory inspection report, Delivery note
