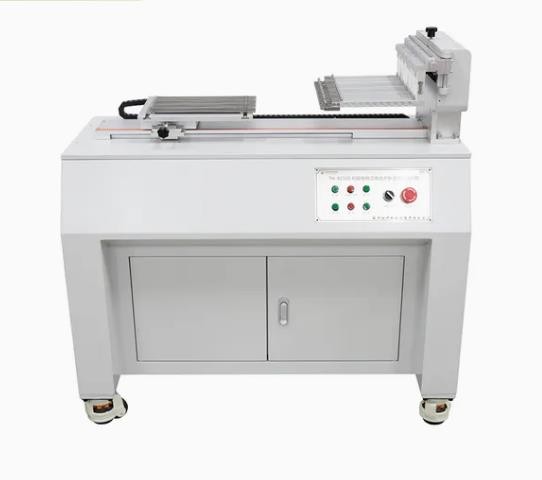

Solar Panel Peel Strength Testing Machine

Category： Other
Product description：The testing machine is mainly used for the precision mechanical test of multi-gate stripping strength such as 5-gate, 6-gate, 9-gate and 12-gate solar photovoltaic modules.
INQUIRY

ZHIYI-8210 series universal testing machines are designed and manufacture according to ASTM, ISO, GB and other international standards.

Test item:
The testing machine is mainly used for the precision mechanical test of multi-gate stripping strength such as 5-gate, 6-gate, 9-gate and 12-gate solar photovoltaic modules.
Applicable industry:
It is widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commercial arbitration, technical supervision and other departments.

Model	ZHIYI-8210S	ZHIYI-8210A
Name	Servo computer horizontal tensile testing machine	Computerized horizontal tensile testing machine
Capacity	10N,20N,50N,100N,200N,500N (optional)
Display Mode	Computer software display
Power system	Imported servo motor	servo motor
Accuracy grade	Better than 0.5 level	Better than 0.5 level
Load range	0.2%-100%FS	0.2%-100%FS
Force error	Within±0.5%	Within±0.5%
Force resolution	1/±500000	1/±500000
Deformation range	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%
Deformation resolution	0.0001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%
Displacement resolution	0.0005mm	0.001mm
Force control rate adjustment range	0.01%-10%FS/S
Force control rate accuracy	Within±1.0%
Deformation rate adjustment range	0.02%-5%FS/S
Deformation rate control accuracy	Within±1.0%
Displacement speed range	0.001-500mm/min	1.0-500mm/min
Effective test width	230*230mm
Effective space	560mm
Dimension	1050500950mm
Power	AC Single-phase220V 500W
Weight	50kg

Servo motor
High precision: realized closed-loop control of position, speed, and torque;

Fast speed: good operation performance, rated speed can reach 2000~3000 revolutions;

Adaptability: strong overload resistance,can withstand three times the rated torque load.

High-Precision Solar Panel Peel Strength Testing Machine for Reliability

Multi-channel load cells
High precision: high measurement accuracy;

High stability: stable and durable;

Accuracy level: better than 0.5 level accuracy.

Ball screw
Smooth movement: low frictional resistance during operation, high sensitivity, no shaking when starting, no crawling phenomenon at low speeds;

High transmission efficiency: the transmission efficiency is as high as 90%-98%, which is 2-4 times of the traditional system;

Adaptability:strong overload resistance,able to withstand loads three times the rated torque.

Main interface:

TOP-Test material test special software,it is suitable for all kinds of materials, products mechanical properties test. The main interface of the test simultaneously displays: test curve, data list, real-time data, control panel and other information. Simple interface, portable operation, and support for multi-language seamless switching.

Standard Setting interface:

TOP-Test material test special software, according to the product test standards, can be set before the test sample information, the test process control mode, running speed, control conditions, and test results of the data list, data arithmetic, test report style and other information, To meet the test requirements of ISO, IEC, EN, GB, ASTM, JIS, DIN and other international general testing standards.

Calibration interface:

TOP-Test material test specific software, with force, displacement, velocity, deformation and other equipment calibration functions. Force calibration can simultaneously store multiple sets of calibration data for load cells, and can calibrate up to 12 segments of load cells. The force error is controlled within ± 0.5%, making the test results more accurate.

Unit system interface:

TOP-Test material test special software, with flexible unit system, strength, displacement, deformation, strength and other data are available in a variety of units to meet different testing requirements.

Data query:

TOP-Test material test special software, with powerful data query function, each test data are stored in the encrypted database, users can query and output historical tests based on search criteria such as test number, batch, time, and personnel, and compare and analyze the test results horizontally/vertically.

Report output:

TOP-Test material test specific software, it adopts open test report template, users can write test report styles according to test requirements, call test result database information, and automatically generate test reports. And it can output test reports in formats such as Word, Excel, PDF, etc. The data information is complete, clear, and automatically generated.
