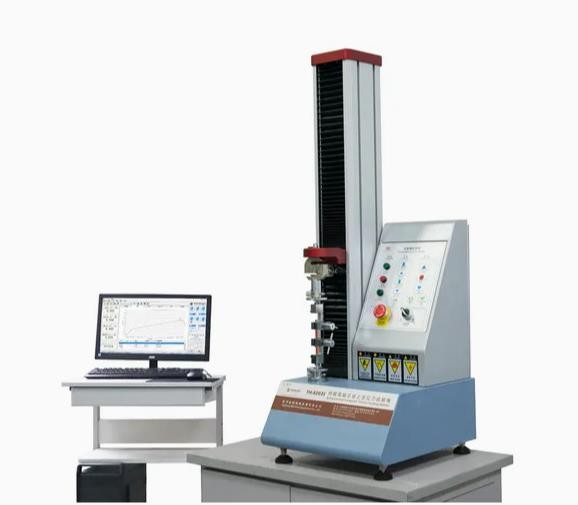

Tensile Testing Equipment

Product Item : ZHIYI-8203
Category： Tensile Testing Machine
Product description：This series of testing machine is widely used in plastic film, solar photovoltaic, wire and cable, adhesive products, electronic products, textile materials and other industries, universities, researc
INQUIRY

This series of testing machine is widely used in plastic film, solar photovoltaic, wire and cable, adhesive products, electronic products, textile materials and other industries, universities, research laboratories, inspection and arbitration department, technical supervision and other departments.
The test items include: Tensile, breaking, peeling (180 degree, 90degree), heat sealing strength .

Item	ZHIYI-8203S	ZHIYI-8203A	ZHIYI-8203
Capacity	10N,20N,50N,100N,200N,500N,1kN,2kN
Value resolution	1/±500000		1/±200000
Deformation resolution	0.0001mm	0.001mm	0.001mm
Displacement resolution	0.0005mm	0.001mm	0.001mm
Displacement speed range	0.001-500mm/min	1-500mm/min(adjust)	1-500mm/min(adjust)
Effective space	700mm
Dimension	4504001250mm
Weight	60kg

Technical parameter:

Technical parameter:
The instrument is mainly used for plastic film but it can be widely used for other materials, such as paper, chemical fiber, metal wire, metal foil, and so on.Technical parameter:

(1) Measuring the tension resistance, tensile strength, elongation, breaking length, tensile energy absorption, tensile index and tensile energy absorption of film especially for small quantity.
(2) Measuring the tension resistance of aluminum foil, aluminum belt, tensile strength, peel strength, and elongation.
(3) Measuring the tensile strength, elongation and tensile modulus of elasticity of plastic film.
(4) Measuring the heat sealing strength, tensile strength and peel strength of food packages bag.
(5) Measuring the adhesion strength, edge banding strength, tensile strength and elongation of sanitary napkin.
(6) Measuring the peel strength and tensile strength of pressure sensitive adhesive tape.
(7)Measuring the filament yarn breaking strength and elongation of synthetic fiber.
(8)Measuring the extent of the zipper slider.
