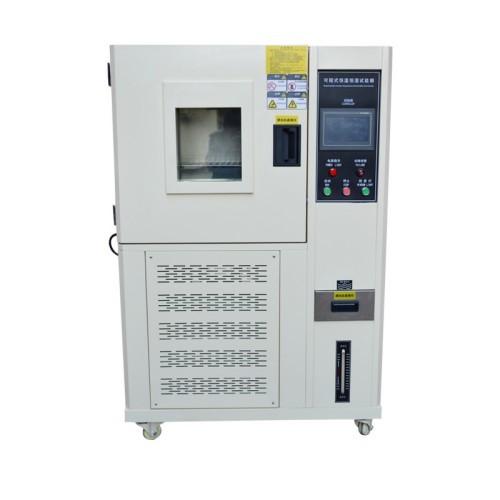

80L Temperature and Humidity Test Chamber

80L Constant Temperature and Humidity Test Chamber

Temperature range: -20 ~ 150℃ Humidity range: 20%~98%

Test Chamber Technical Data

◆Resolution accuracy: Temperature: ±0.01℃; Humidity : ±0.1%R.H

◆Temperature Range: -20℃~+150 ℃

◆Temperature fluctuation: ±2℃；

◆Temperature uniformity: ±2℃；

◆Humidity range: 20%～98%R.H；

◆Humidity uniformity: ±3%；

◆Heating rate: 2℃-4℃/min (From normal temperature to the highest temperature, non-linear no-load)

◆Cooling rate: 0.7℃-1℃/min(From normal temperature to the highest temperature, non-linear no-load)

◆Chamber External Size: W920*D1020*H1400mm

◆Inner and outer box material: high quality stainless steel ；

◆The stratospheric structure design: effectively avoid condensation on the top of the box;

◆Insulation layer: Insulation insulation layer (hard Polyurethane foam + glass wool, 100MM thick);

◆Box door: single-piece door, single window, left opening. Flat embedded handle.

◆Double-channel heat insulation and tight airtightness can effectively isolate the heat exchange between the inside and outside of the box;

◆Observation window: toughened glass, easy to observe the sample.

◆Lighting design: high-brightness window lighting, easy to observe the sample;

◆Test hole: ψ50mm on the left side of the body, with a stainless steel hole cover;

◆Machine pulley: easy to move (adjust the placement position) and powerful bolts (fixed position) to be used together;

◆Box built-in shelf: stainless steel SUS #304 square punching steel plate shelf 1 piece and 4 sets of rails (adjust the spacing)；

Test Chamber Refrigeration system

◆ Refrigeration system: using French Taikang compressors, European and American high-efficiency power-saving ultra-low temperature refrigeration systems (air-cooled heat dissipation method);

◆ Cold and heat exchange system: Ultra-high efficiency SWEP refrigerant cold and heat exchange design (environmental protection refrigerant R404A);

◆ Heating load adjustment: Automatically adjust the refrigerant flow rate to effectively take away the heat emitted by the heating load;

◆ Condenser: Fin type motor with heat dissipation;

◆ Evaporator: fin type multi-stage automatic load capacity adjustment;

◆ Other accessories: desiccant, refrigerant flow window, repair valve;

◆ Expansion system: capacity control refrigeration system.

Test Chamber Control System

◆ Control system: programmable color screen touch screen temperature controller

◆ Chinese and English liquid crystal display LCD touch panel, screen dialogue type input data, temperature and humidity can be programmed at the same time, back light 17-segment adjustable, curve display, set value/display value curve. Various alarms can be displayed separately. When a fault occurs, the fault can be displayed on the screen to eliminate the fault and eliminate the mis-operation. Multiple groups of PID control functions, precise monitoring functions, and displayed on the screen in the form of data.

Test Chamber Safety Protection System

◆ Over-temperature protector;

◆ Zero-crossing brake fluid power controller;

◆ 1 air burning prevention protector;

◆ Compressor high pressure protection switch;

◆ Compress or over heating protection switch;

◆ Compress or over current protection switch;

◆ No fuse switch;

◆ Ceramic fast fuse;

◆ Line fuse and fully sheathed terminal;

◆ Buzzer;

Test Chamber Working Environment

◆ Operating temperature range 0~40℃

◆ Range of performance guarantee : 5~ 35 ℃

◆ Relative  humidity: no more  than 85%

◆ Atmospheric pressure : 86 ～106 Kpa

◆ No strong vibration a round

◆ No direct sun light or other heat sources

Test Chamber Power AC    240V      50HZ    3.5KW
