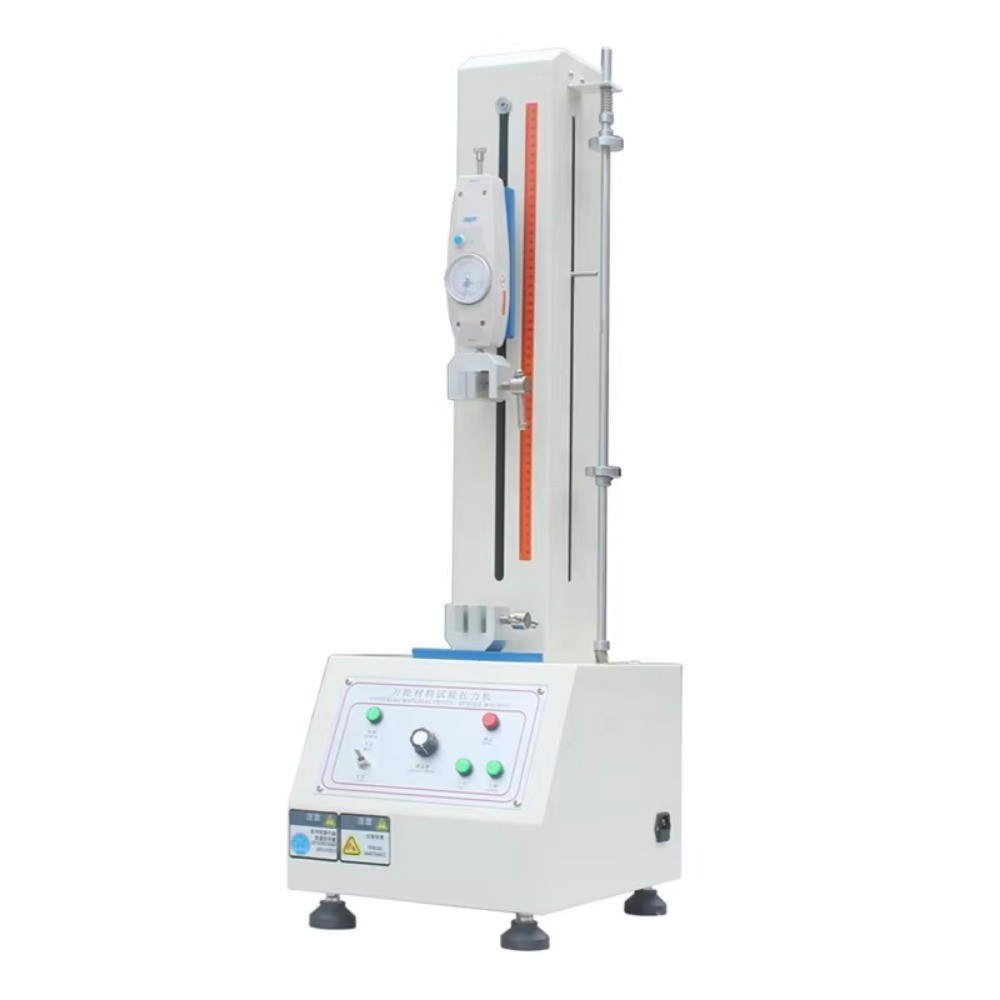

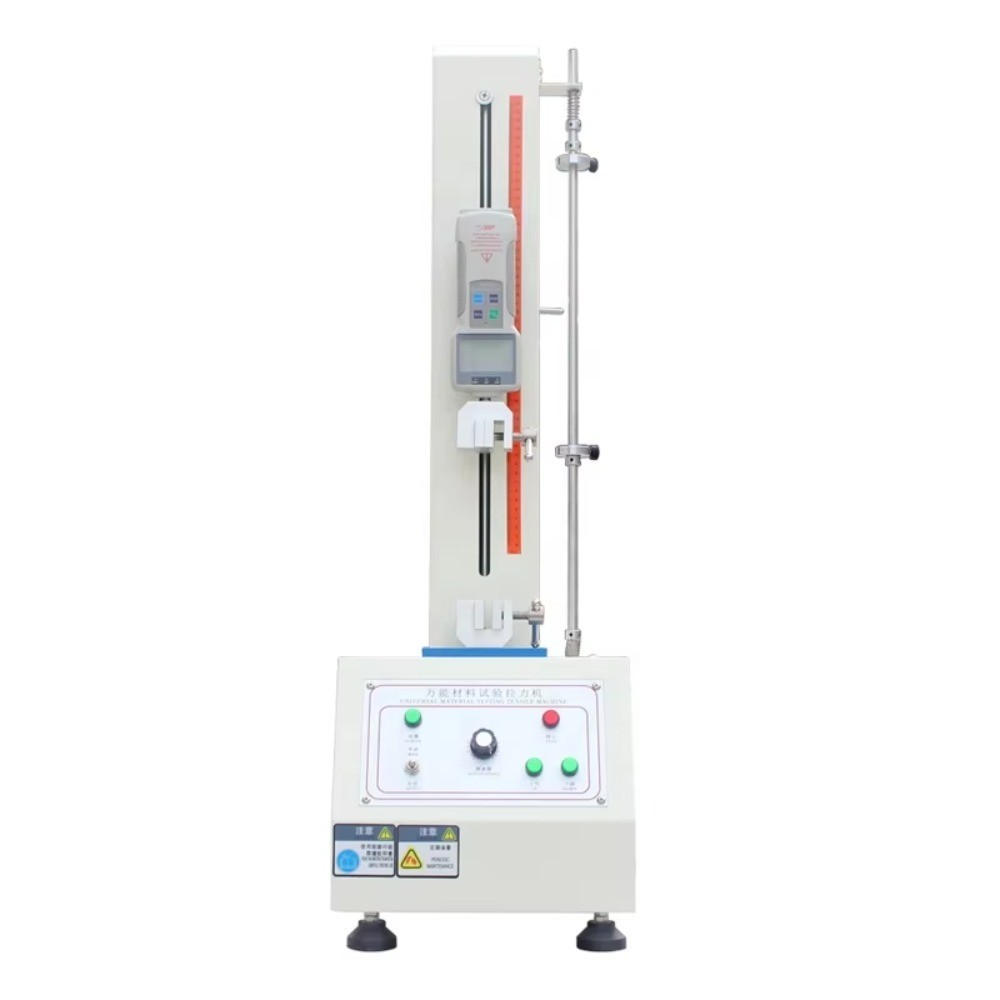

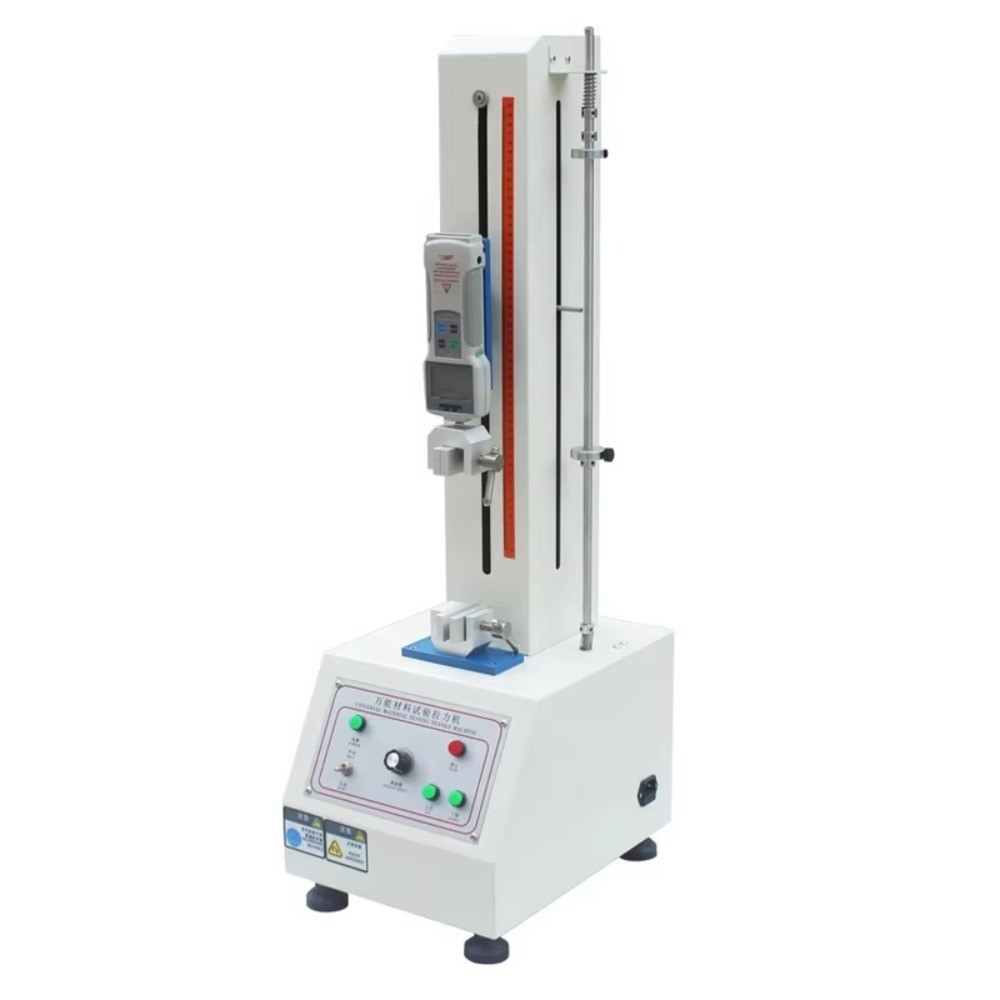

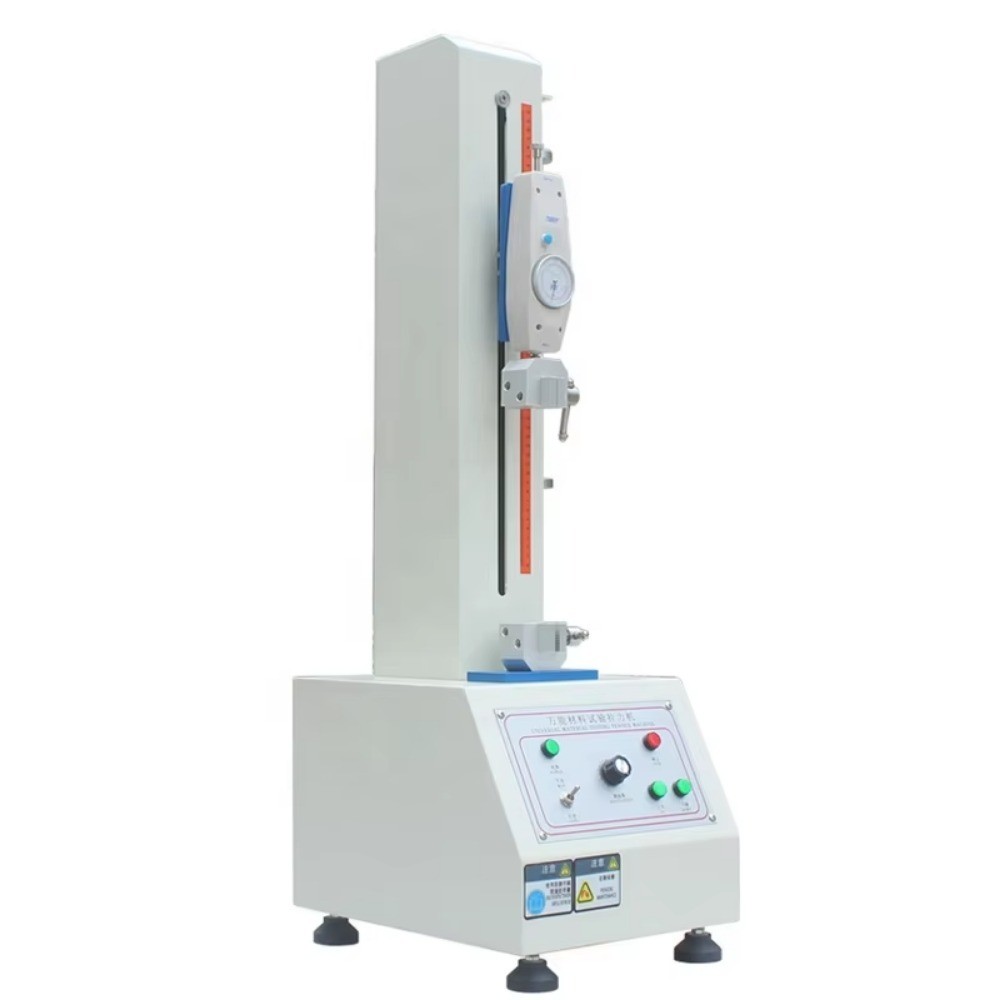

Tensile Strength Tester

Product Item : ZYS-6
Category： Tensile Testing Machine
Tensile Strength Tester
Tensile Tester
Product description：The tensile testing machine is mainly suitable for testing plastic sheets, tubes, paper, leather, plastic films and rubber, wires and cables, waterproof coils, wires and other materials, and can measu
INQUIRY

Product Introduction

The tensile testing machine is mainly suitable for testing plastic sheets, tubes, paper, leather, plastic films and rubber, wires and cables, waterproof coils, wires and other materials, and can measure tensile compression, bending and peeling, displacement, tearing, insertion force, tensile breaking force and other tests with different fixtures. The tensile testing machine is an ideal testing equipment for industrial and mining, commodity inspection and arbitration, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

Standard

GB7706 complies with JIS5701 and ISO9000 JIS-507-1, TAPPI-UM486, GB7706, ASTM d5264 standards.

Technical Data

Measuring Force Range	10 ~ 1000N
Test Range	350mm
Induction Mode	Push Tensiometer
Test Speed	5~300mm/min Adjustable (Customizable)
Power	AC Motor
Machine Size	560 × 345 × 1080mm
Weight	30kg
Power Supply	AC 220V Single Phase
