Wire Abrasion Tester

Product Item : ZYWT-700
Category： Other
Wire Abrasion Tester
Wear & Abrasion tester
Wire Abrasion Resistance Teste
Wire abrasion tester machine
Product description：This Wire Abrasion Tester is used to scrape the insulating surface of car wires. The device scrapes the insulating surface reciprocating along the specimen axis, and automatically stops when the scrap
INQUIRY

Product Introduction

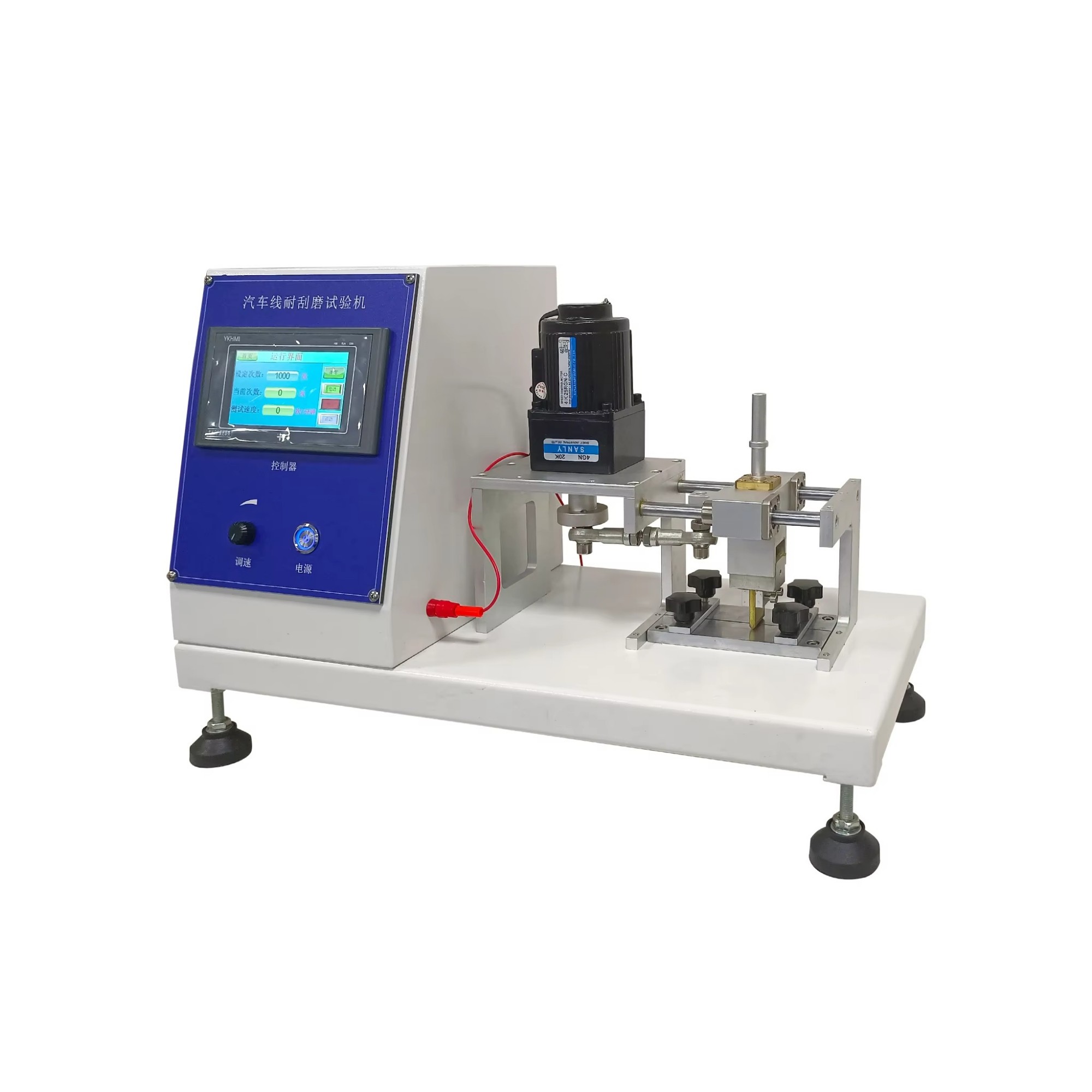

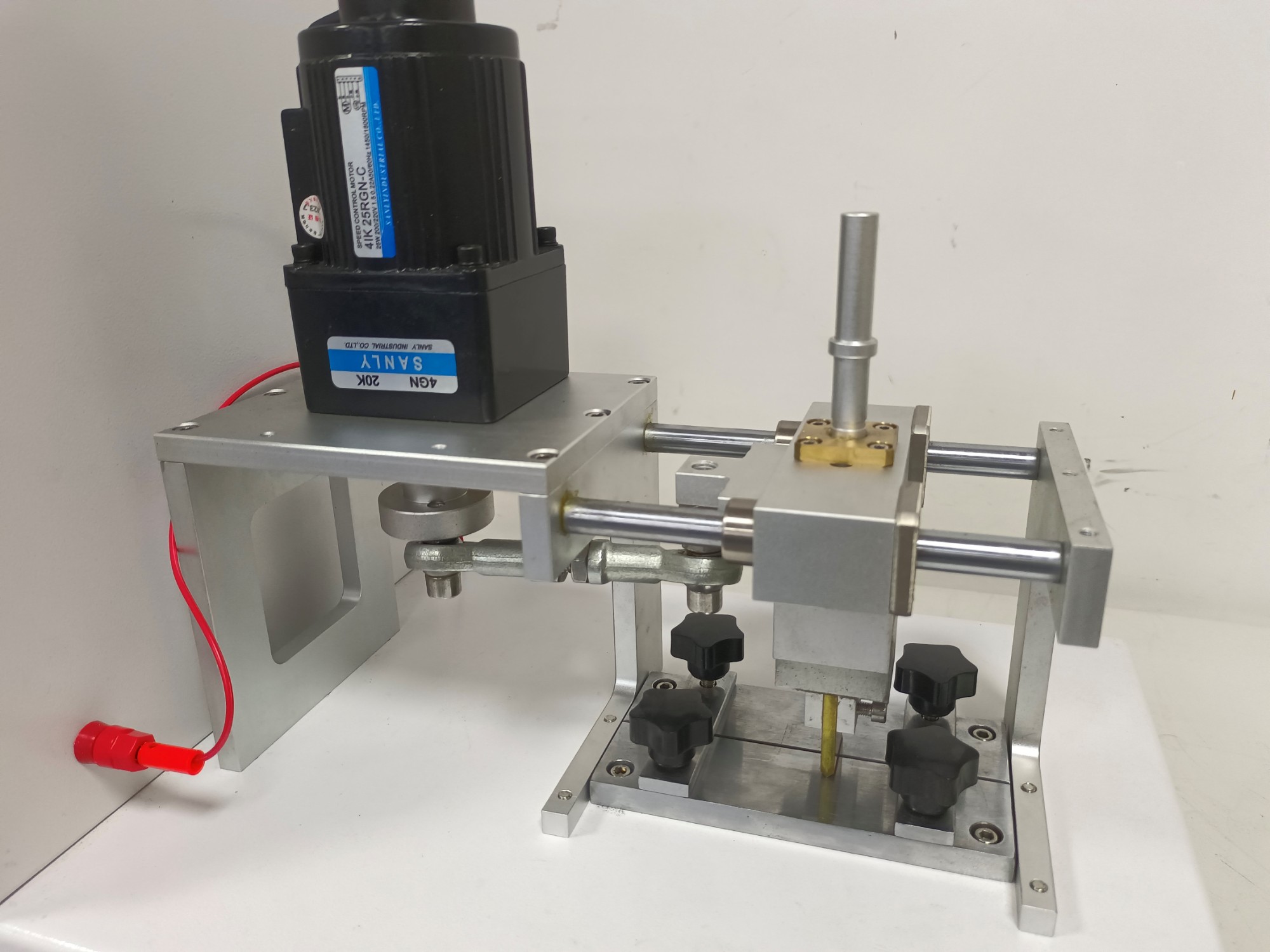

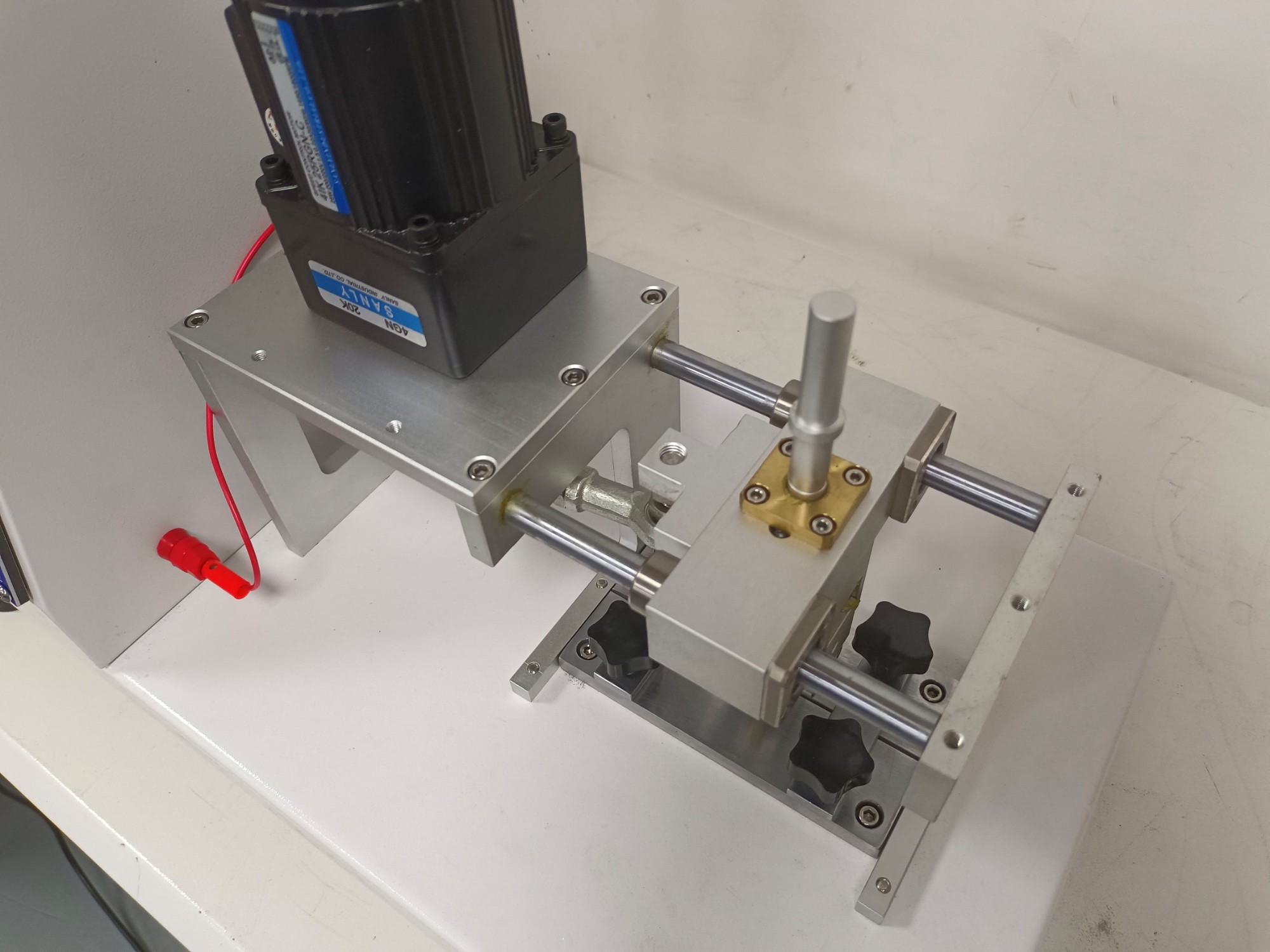

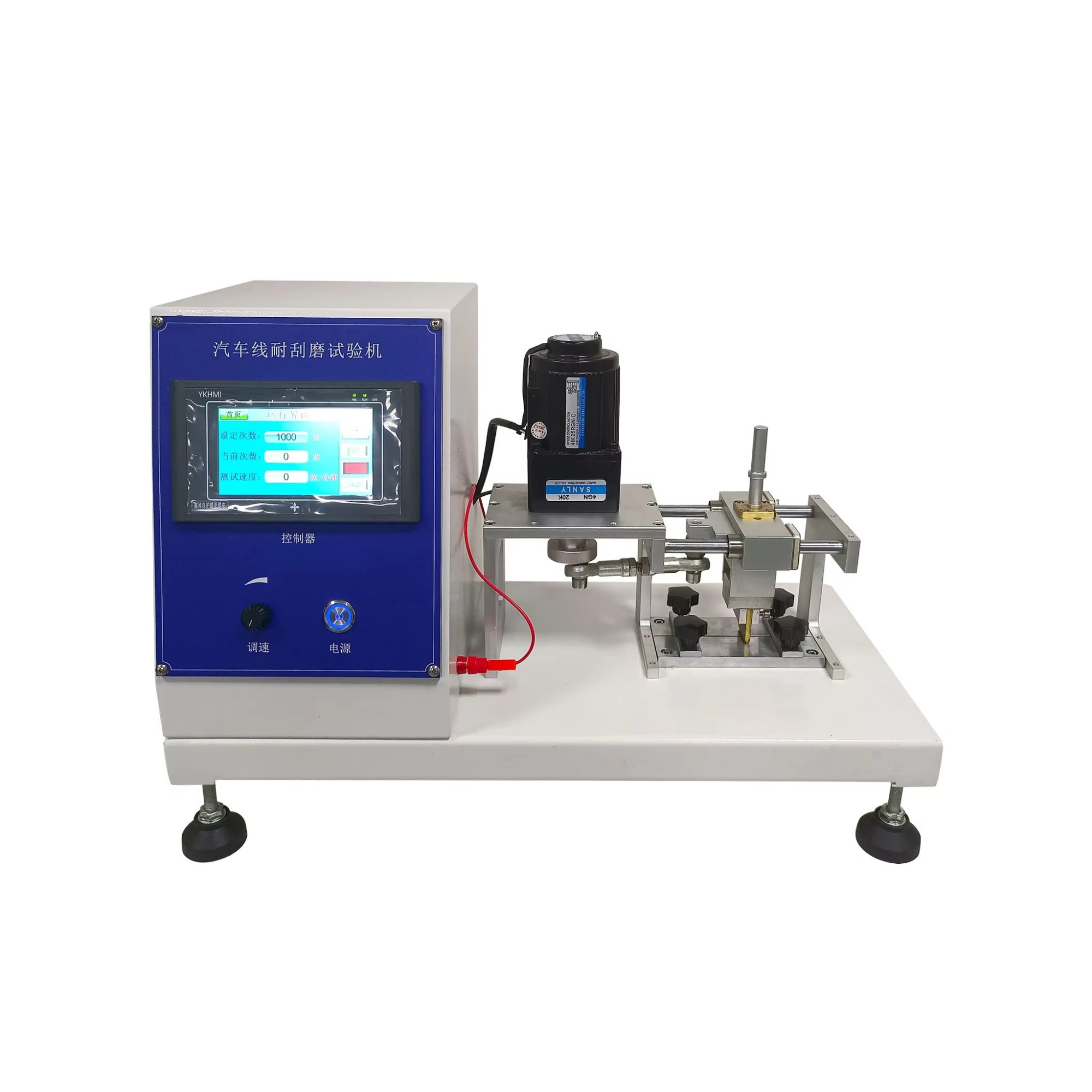

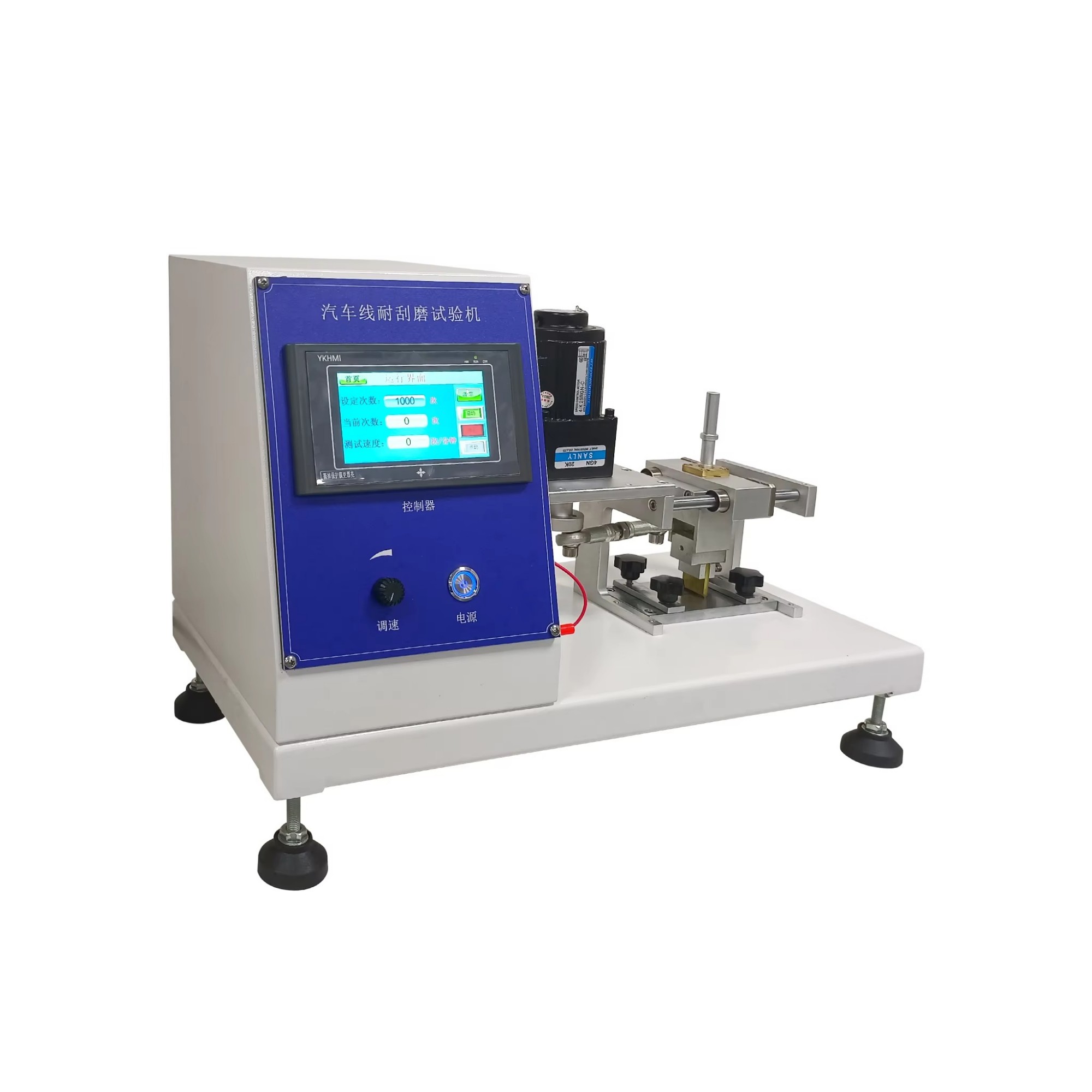

This Wire Abrasion Tester is used to scrape the insulating surface of car wires. The device scrapes the insulating surface reciprocating along the specimen axis, and automatically stops when the scraping needle penetrates the insulating contact conductor.

Standards

The testing machine complies with ISO6722, QC/T730, JB/T8139, JASO D611, DIN72551, VW60306 test standards.

Technical Data

Interior dimensions	Approximately. 460 × 300 × 350 mm (L× W×H)
texture	SUS304 texture
Measure distance	150-250 mm
test tube	Two 15W UV lamps
Test wavelength	345 nm
timer	LED display / 99 hours 59 minutes
Air circulation	A set of electric fan air circulation device
protection	Fuse overload protection
Machine size	650 × 400 × 45 mm (L× W×H)
weight	Approximately 15 kg
Nominal voltage	AC ~ 220V 50hz
