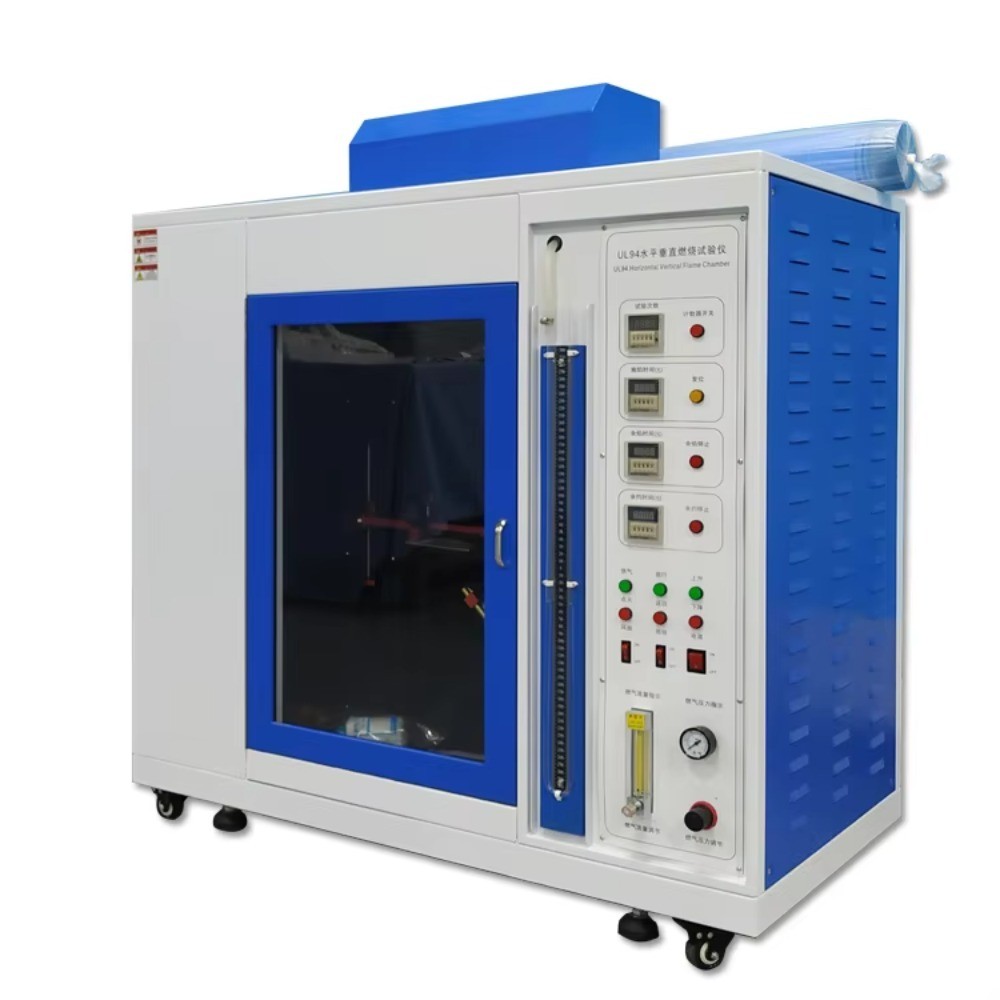

Flammability Test Chamber

Product Item : ECT-400
Category： Environmental Test Chamber
Flammability Chambers
Flammability Test Chamber
Product description：The flammability test chamber is designed for the flammability test of V-0, V-1, V-2, HB, 5V, HF-1, HF-2, and HBF grades. It is suitable for lighting equipment, low-voltage electrical appliances, hous
INQUIRY

Product Introduction

The flammability test chamber is designed for the flammability test of V-0, V-1, V-2, HB, 5V, HF-1, HF-2, and HBF grades. It is suitable for lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical appliances, power tools, electronic instruments, electrical instruments, electrical connectors and accessories. In the insulation, engineering plastics or other solid combustible materials industry.

Standards

UL94-2006，IEC60695-11-4，IEC60695-11-3，GB / T5169-2008，UL 94-2006，UL1581 \ UL13 \ UL444 \ UL1655 \ CAS ft-1，IEC 60695-11-4，IEC 60695-11-3，GB/ t5169-2008etc.

Working Principle

According to a certain height of the flame and a certain angle of the flame, the horizontal or vertical state of the test product is burned multiple times, the ignition, the duration of the combustion and the length of the combustion, etc., to evaluate its flammability and fire hazard.

Technical Data

model	ECT-400A	ECT-400B
standard	UL94, IEC60695-11.-4/10	UL94, IEC60695-11-3/20
Flame height	20±1 mm	40±2 mm
Gas flow rate	105±10 ml/min	965±30 ml/min
Interior chamber dimensions	≥ 0.5m3, with glass observation doors
The flame applies time	0 ~ 999.9 seconds, settable
Afterglow time	0 ~ 999.9 seconds, settable
Remaining burn time	0 ~ 999.9 seconds, settable
Burning Angle:	20°, 45°, and 90° (0°) adjustable
Burner size	Inner diameter Ø 9.5 mm, effective length 100 mm with air condition hole
Flame height	Adjustable from 20 mm ~ 175 mm based on test standards
Gas flow rate	Normal 105 ml/min
Flow accuracy	±1%
Alignment Method:	The motor drives the front and rear alignment splines
Control system	PLC + Digital Display/Touch Screen + Thermal Printer (Print test results.))
Gas type	≥ 98% methane/37MJ/m3 natural gas or coal gal
power supply	220V, 50HZ or customized
