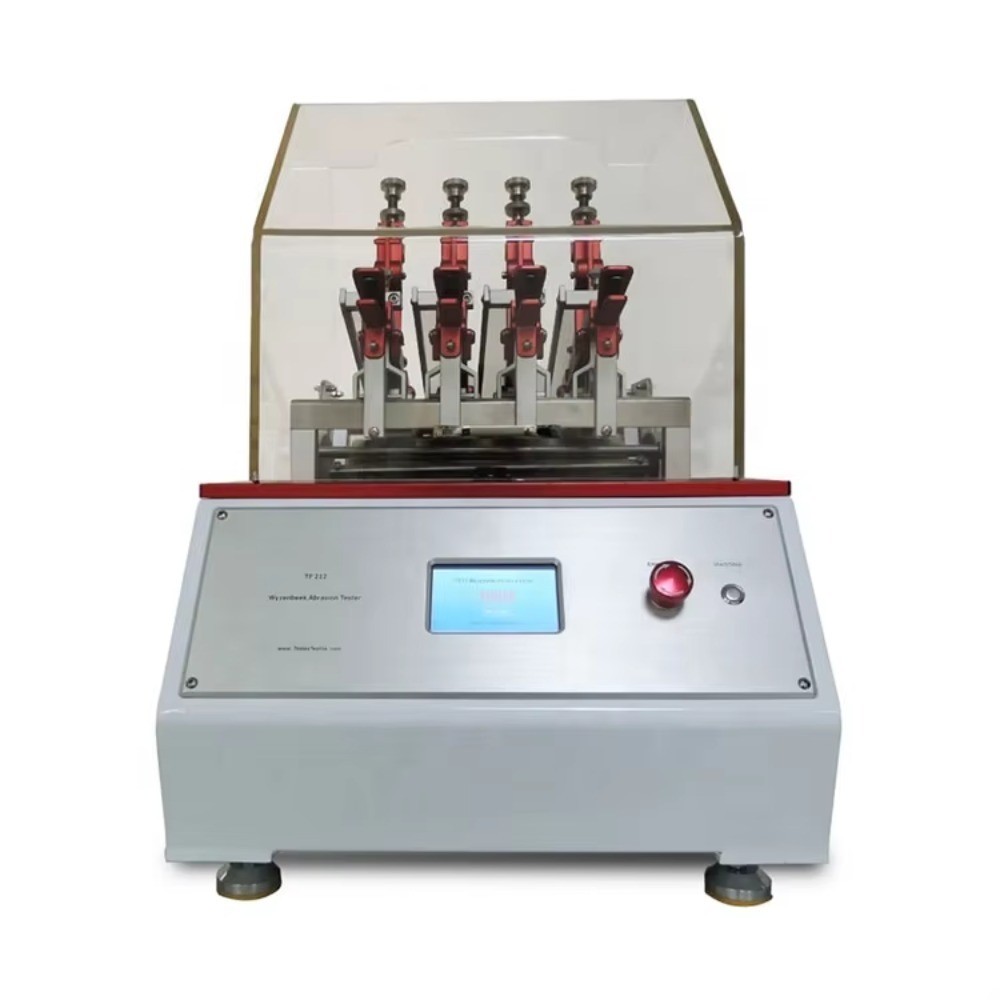

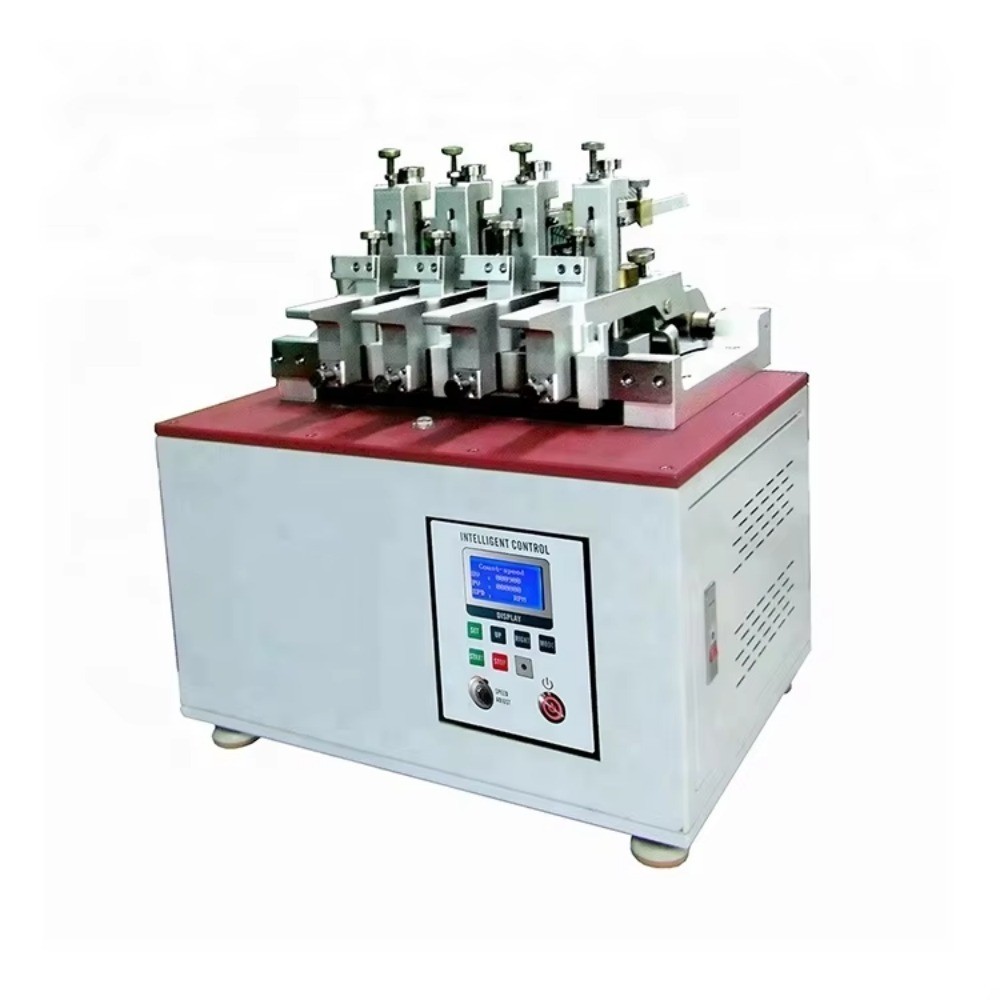

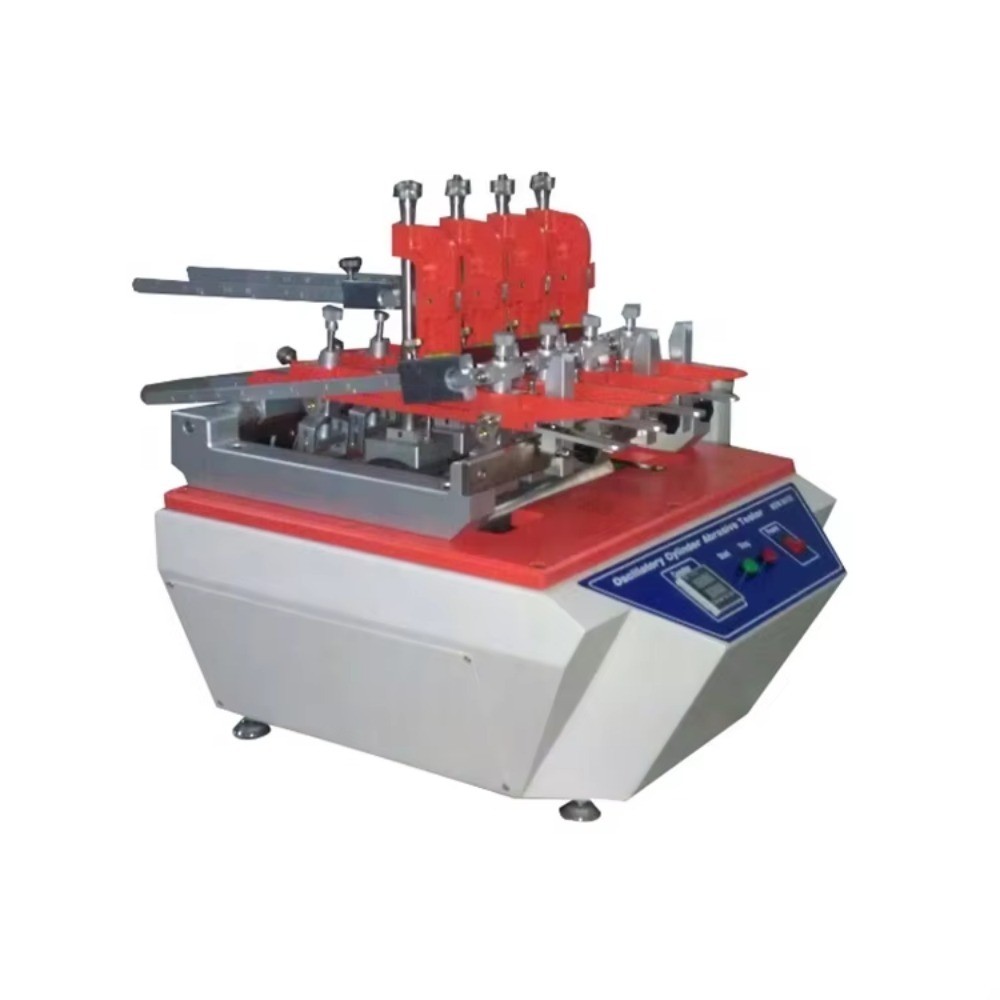

Wyzenbeek Abrasion Tester

Product Item : WAT-300
Category： Textile Testing Equipment
Wyzenbeek Abrasion Tester
Abrasion Tester
Product description：The Oscillating Wyzenbeek Abrasion Tester determines the abrasion resistance of fabrics. It complies ASTM d4157 Modern ergonomic design that determines the abrasion resistance of the fabric when rubbe
INQUIRY

Product Introduction

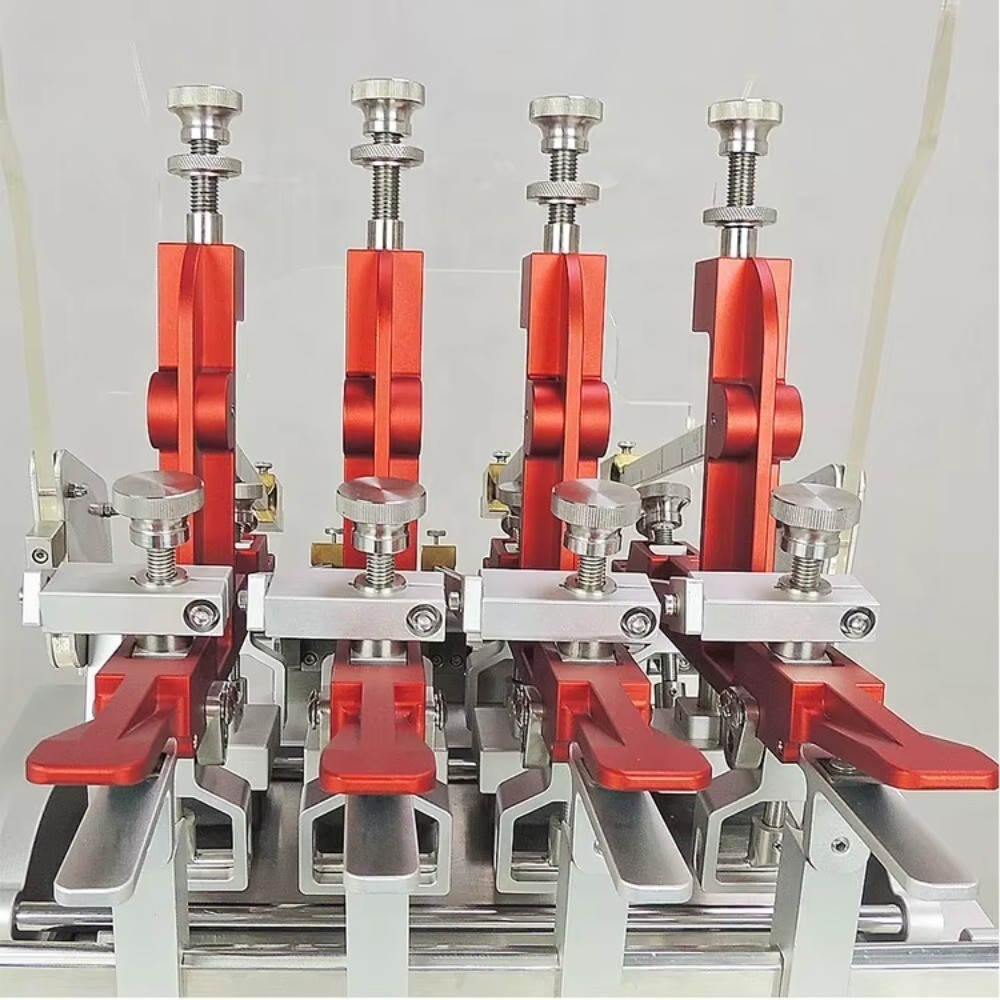

The Oscillating Wyzenbeek Abrasion Tester determines the abrasion resistance of fabrics. It complies ASTM d4157 Modern ergonomic design that determines the abrasion resistance of the fabric when rubbed against standard abrasives or wire mesh, with backward and forward movement surfaces at bends. Wyzenbeek abrasion testers are intended for fabric manufacturers in the automotive and furniture industries, which are dedicated to the American standard motor drive with 4 wear heads and an electronic digital counter to control the number of cycles.

Standard

ASTM D4157: Standard Test Method for Abrasion Resistance of Textile Fabrics (Oscillating Cylinder Method)

Product Feature

1. The robust mechanical components are made of aluminum and stainless steel.

2. Durable powder coating and anodized finish.

3. High-quality THK precision bearings.

4. Programmable counting controller with automatic stop

5. Adjustable canter and test speed control

6. Supply voltage variation, which must be specified at the time of purchase

7. High quality brushless motor

Technical Data

Model	WAT-300
Test station	4 groups
Test speed	90 ± 1 rpm
Wear platform arc	Arc: 76 mm Length: 300 mm
Wear stroke	76 ± 2 mm
Wear head	Bottom indenter 50*50 mm, curved R80 mm
Tension on the sample	4 lb force (17.8N), adjustable
Load the sample	3 lbs (13.4N), adjustable
Sample size	73*245mm
Akum cleaner	≤ 4cfm
Voltage	220V 50Hz
