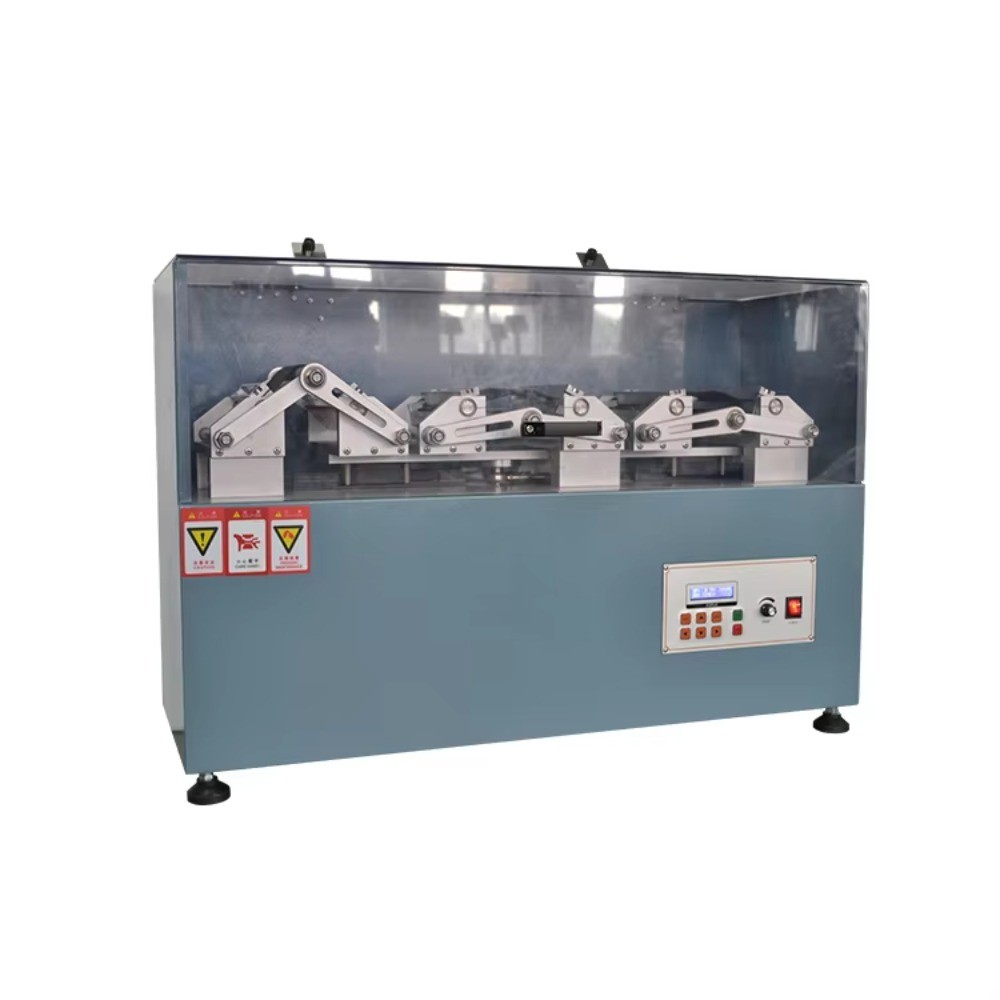

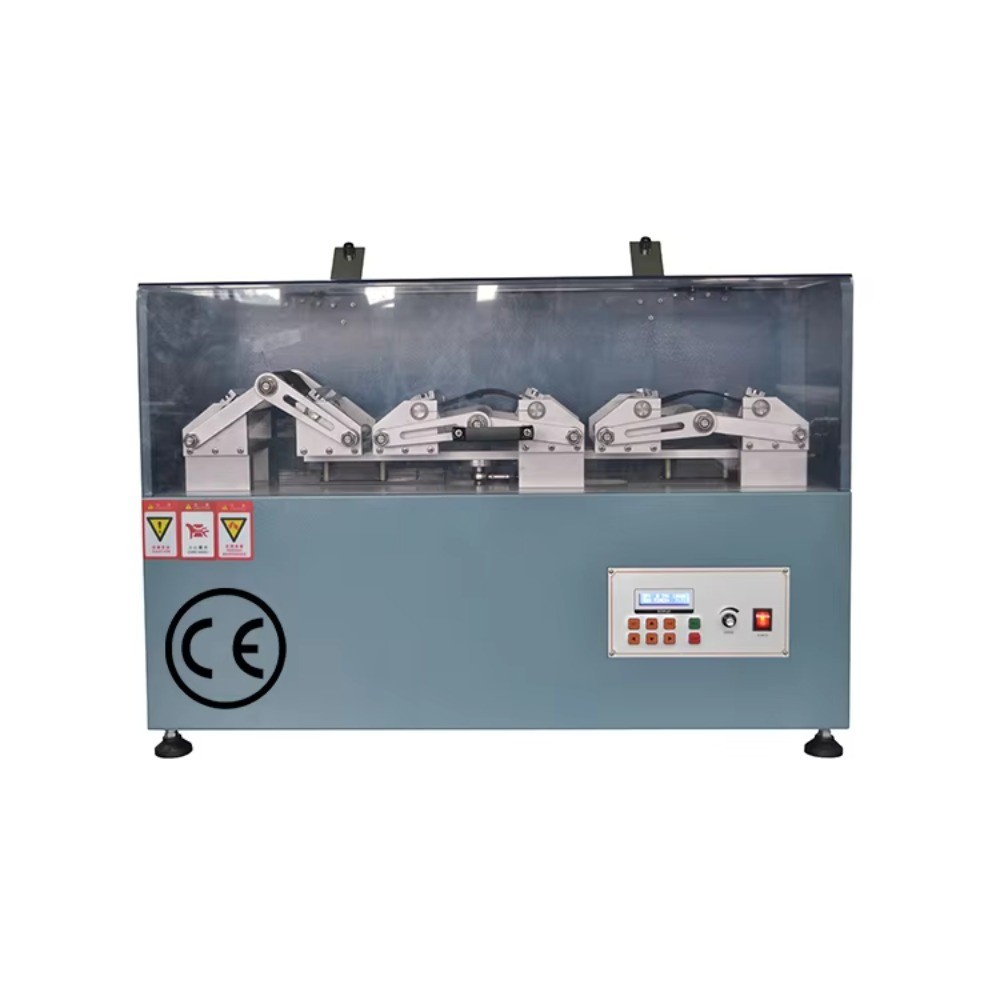

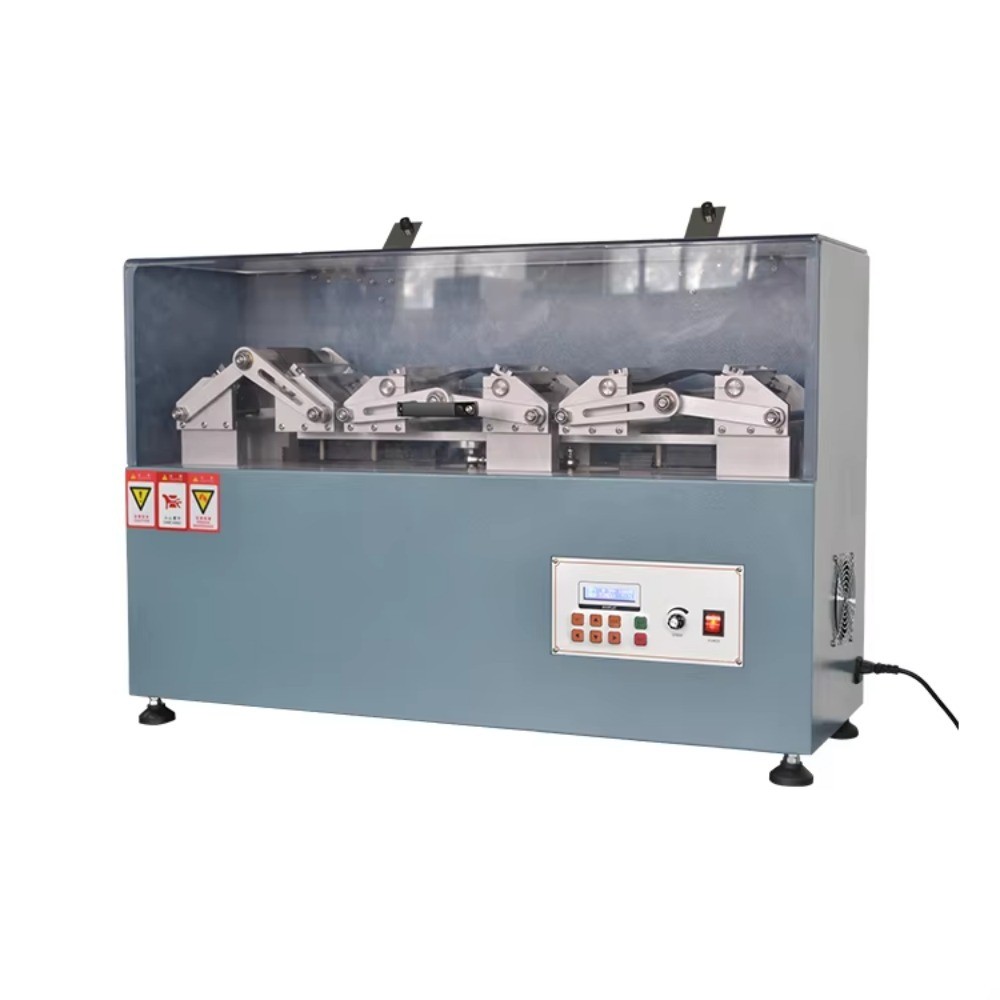

Sole Bending Resistance Tester

Product Item : ZYBT-290
Category： Other
Sole bending tester
bending tester
Sole Bending Resistance Tester
Product description：It is designed to test the service life of the sole after buckling. After a long period of roller bending, the sole may crack or crack. When using such shoe testing equipment, several holes are pierce
INQUIRY

Product Introduction

It is designed to test the service life of the sole after buckling. After a long period of roller bending, the sole may crack or crack. When using such shoe testing equipment, several holes are pierced at the place of maximum bending and then the ends of the sole are fixed, fixed at one end and movable at the other. During the test, the shaft is repeatedly raised, bent enough times, and its stretching stage is checked through a magnifying glass.

Standards

SATRA TM161, ISO 17707, ISO20344 section 8.4.2, ISO20347 section 5.8.4, AS/NZS 2210.2 section 8.4.2, ASTM-D1052，ISO5423/4643

Technical Data

Model	ZYBT-290
Test station	3 pieces
Bending angle	90 °
Bending speed	20 ~ 150 cpm
Handle width	144 mm
M Andre D parameter	30 mm
Movable fixture itinerary	41.5±0.5 mm
weight	Approximately 98 kg
impetus	220V, 50Hz or specified
