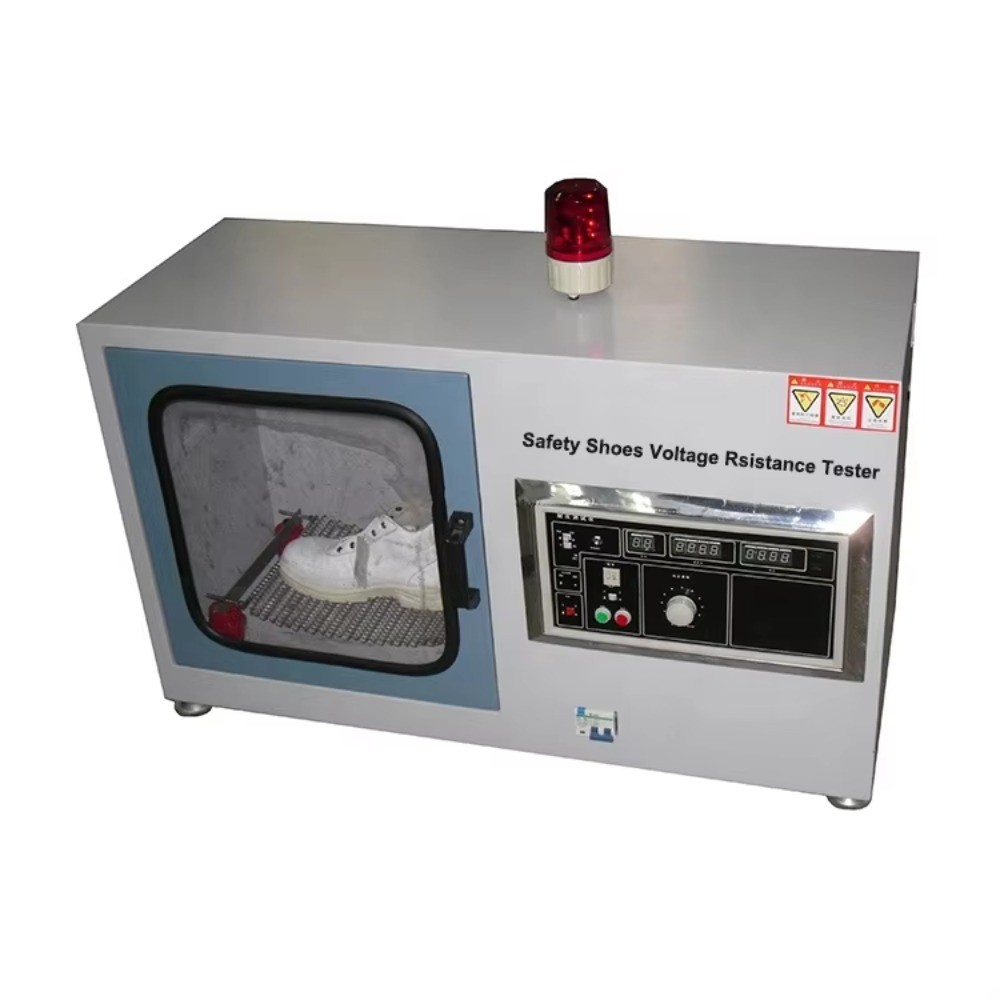

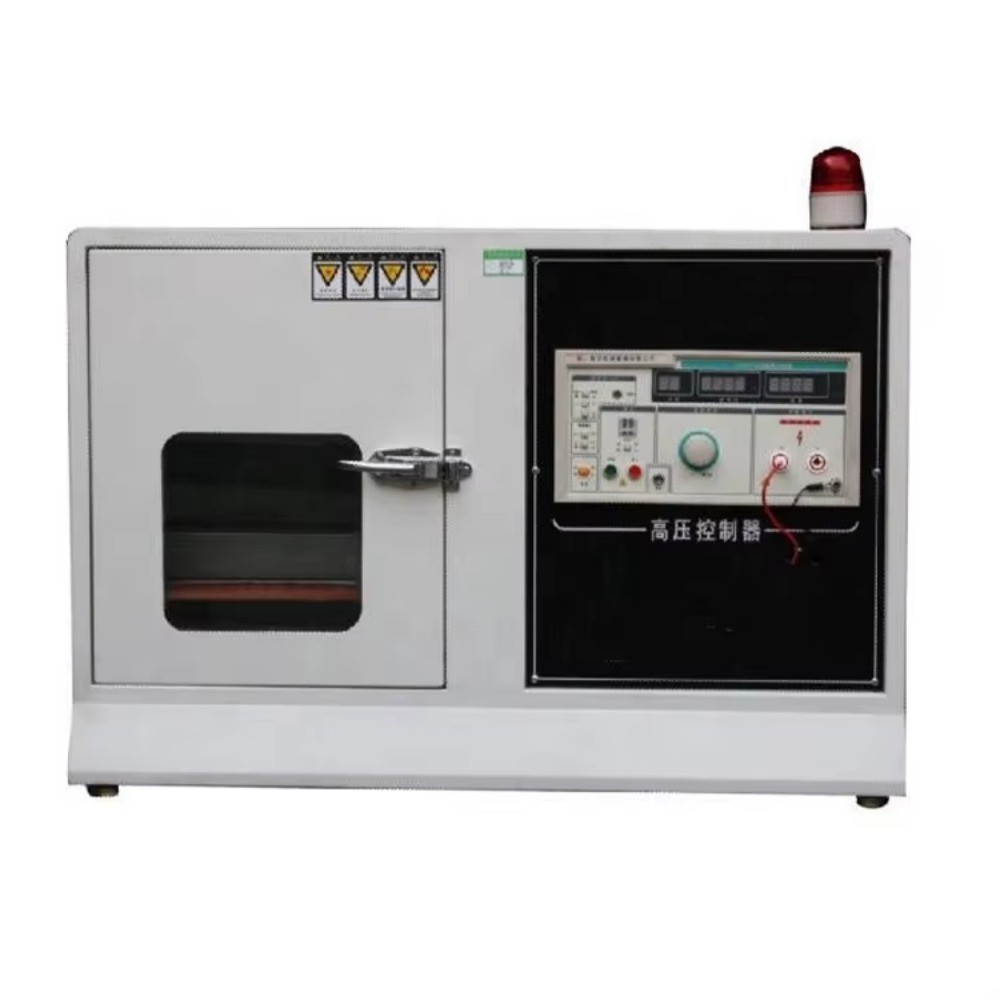

Safety Shoe Insulation Tester

Product Item : ZYIT-400
Category： Other
Safety Shoe Insulation Tester
Shoe Insulation Tester
Product description：Shoe insulation tester/shoe withstand voltage tester is to test whether the sole or insulation material can withstand the voltage value to know how much it can withstand the voltage.
INQUIRY

Product Introduction

Shoe insulation tester/shoe withstand voltage tester is to test whether the sole or insulation material can withstand the voltage value to know how much it can withstand the voltage.

Standard:

ANSI-241, CSA-Z195, GB12011, GB/T20991-2007, ISO8782, ISO20344,etc.

Working Principle:

During a specific test time, if the test sample does not break down, the value of the milliampere meter index (mA) is the leakage current value and the voltmeter's indicated value is (kv) is the voltage resistance value. Test conditions: 15 °C ~ 35 °C, 45% ~ 75% RH

Technical Data

Model	ZYIT-400
Test voltage	1kV/s to the specified voltage
capacity	0.5KVA
Input voltage	AC220V volts
Output voltage	AC 0-20kV (adjustable)

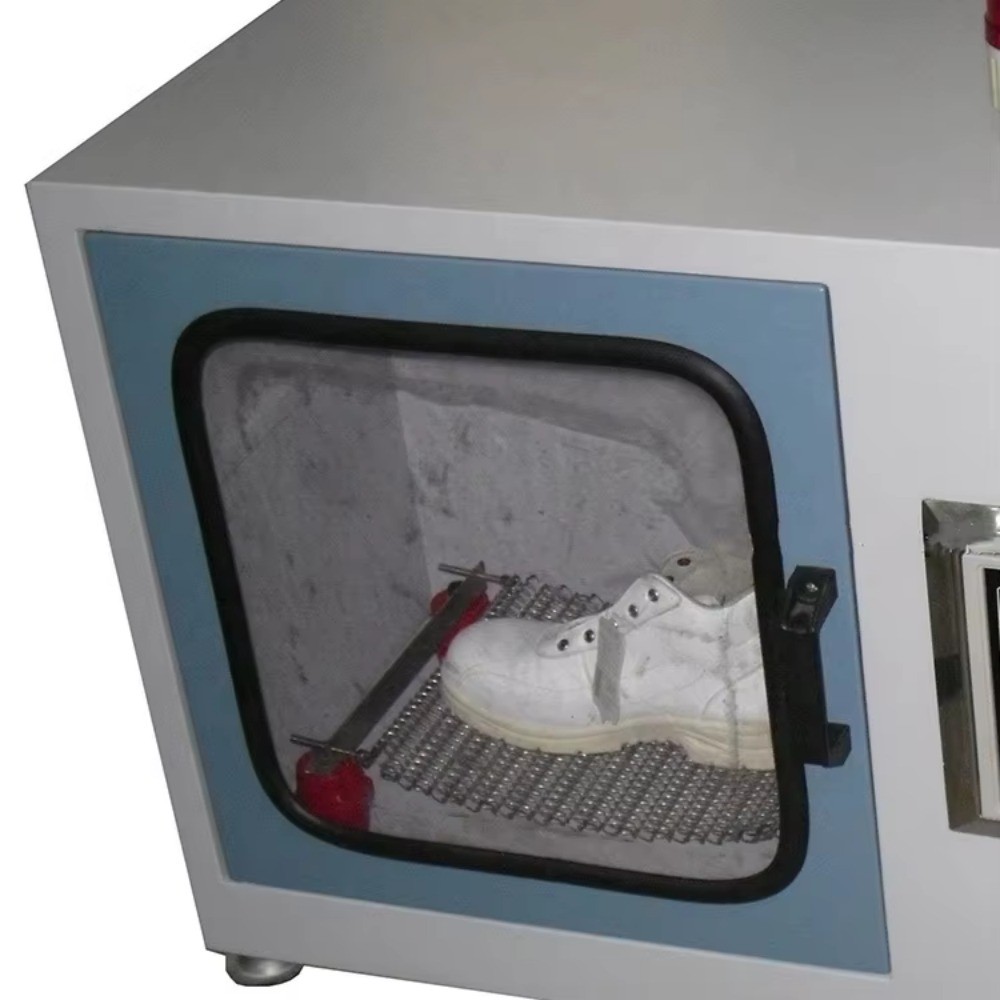

Conductive steel diameter	3 mm
Electrode (steel) layer depth	At least 30 mm
Metal Mesh (Template)	400 × 220 mm
Test space	59 × 37 × 55 cm
impetus	AC220V/50Hz or specified
