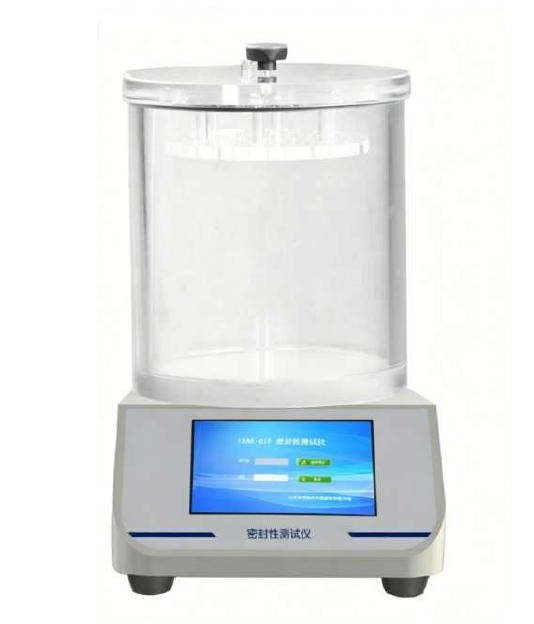

Sealing tester with Built-in air pump

The LEAK-01V sealing performance tester (with built-in vacuum pump) uses the negative pressure method for testing the sealing performance of packaging bags, bottles, tubes, cans, and boxes in industries such as food, pharmaceuticals, medical devices, daily chemicals, automobiles, electronic components, and stationery. It can also test the sealing performance of specimens after drop and pressure tests. The tests effectively compare and evaluate the sealing process and performance of packaging, providing a scientific basis for determining relevant technical indicators; it can also be used to test the sealing performance of certain packaging after drop and pressure tests.

Features :

1.         Built-in vacuum pump enables high-speed achievement of -98 kPa vacuum test conditions.

2.         A 7-inch high-definition color display facilitates user control and display of real-time data and curves.

3.         Dual test modes—conventional sealing and gradient (multi-stage)—quickly identify the critical value of sample leakage pressure.

4.         High-quality pneumatic components (valves, fittings) and high-precision pressure sensors are included.

5.         The vacuum chamber (test chamber) is made of aerospace-grade materials, resistant to yellowing, cracking, and aging; various specifications can be customized.

6.         Password login prevents unauthorized operation and potential damage; four levels of login and operation management permissions.

7.         A standard micro printer enables rapid printing of experimental reports.

8.         Dual power supply design ensures stable operation of the instrument by providing independent power to the measurement and control system and the execution system.

9.         Both vacuum degree and time can be preset; simply input the values to enter the test mode. Optional professional GMP computer software offers rich functionality, allows export of test data, supports GMP and electronic signatures, and meets pharmaceutical factory requirements.

Basic Application Areas

Basic Applications

* For sealing tests of paper-plastic composite bags and boxes

* For overall sealing tests of glass bottles, tubes, cans, and boxes

* For overall sealing tests of plastic bottles, tubes, cans, and boxes

* For overall sealing tests of glass bottles, tubes, cans, and boxes

* Extended Applications

* For sealing tests of pen refills, electronic components, and medical devices

Test Principle

* By evacuating the vacuum chamber, a pressure difference is created between the inside and outside of the sample immersed in water. The escape of gas from the sample is observed to determine the sealing performance.

* By evacuating the vacuum chamber, a pressure difference is created between the inside and outside of the sample. The expansion of the sample and the recovery of its shape after the vacuum is released are observed to determine the sealing performance.

Technical Parameters

Standards Applied:

GB/T 15171, ASTM D3078 (Other sealing test standards can be customized)

Configuration: Standard configuration: Main unit (built-in vacuum pump), mini printer, sealing container. Optional accessories: Vacuum container (other sizes can be customized). Note: The mini printer on this machine is thermal.
