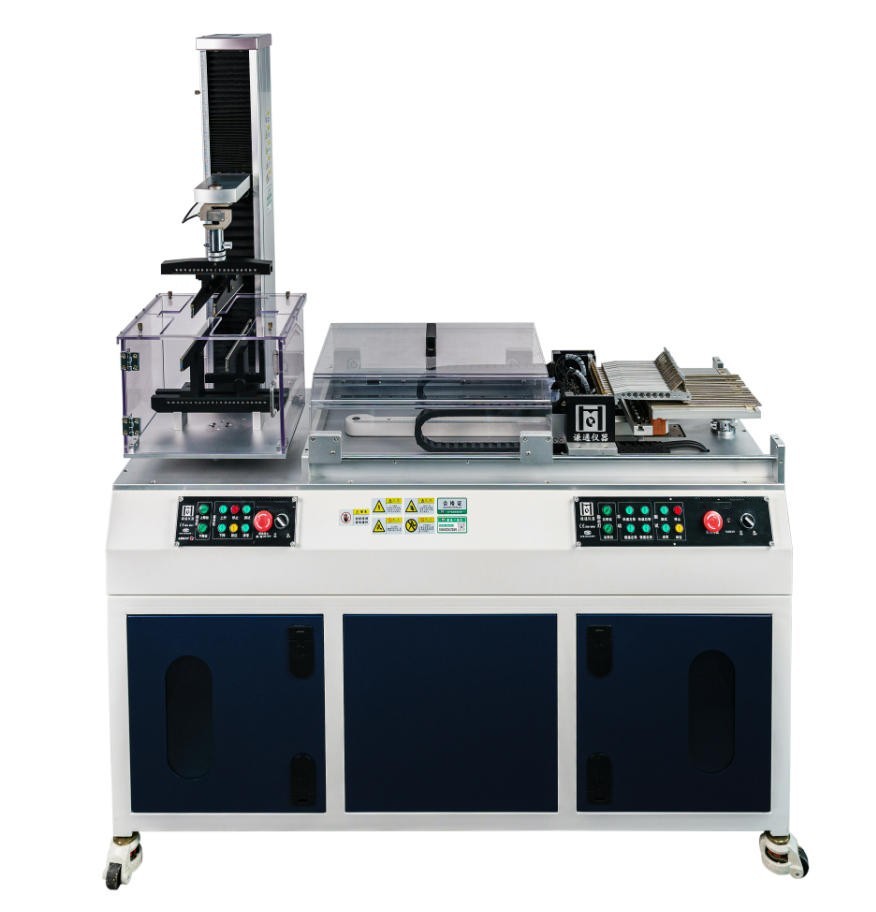

solar cell multi-channel tensile machine (20bb)

Product Item : ZYST-50N
Category： Other
Product description：The servo horizontal universal material testing machine (20 channels) is a testing machine specially developed and used for the solar photovoltaic industry. It can install 20 force sensors.
INQUIRY

1. Maximum test force: 50N;
2. Accuracy class of testing machine: 0.5;
3. Measuring range of test force: 0.2% - 100% FS;
4. Relative error of indicated value of test force: within ± 0.5% of the indicated value;
5. Resolution of test force: 1/± 500000 of the maximum test force (resolution of the whole process remains unchanged);
6. Relative error of displacement indication: within ± 0.5% of the indication;
7. Displacement resolution: 0.001mm;
8. Adjustment range of force control rate: 0.1-5% FS/S;
9. Relative error of force control rate: within ± 1% of the set value;
10. Beam speed adjustment range: 0.05-3000mm/min;
11. Relative error of beam speed: within 1% of the set value;
12. Control range of constant force, constant deformation and constant displacement: 0.5% - 100% FS;
13. Control accuracy of constant force, constant deformation and constant displacement: when the set value is less than 10% FS, it is within ± 1% of the set value; When the set value is ≥ 10% FS, it is within ± 0.1% of the set value;
14. Maximum stretching stroke: 450mm;
15. Effective test width: 230 * 230mm;
16. The battery chip clamp is applicable to 1-20BB battery chips of various main grid quantities, and can be applicable to battery chips of various sizes within 230mm * 230mm;
17. Overall dimensions of main engine (length × wide × Height: 1000 * 550 * 950mm;
18. Power supply: 220V 50Hz 400W;
19. Main engine weight: about 140kg.
