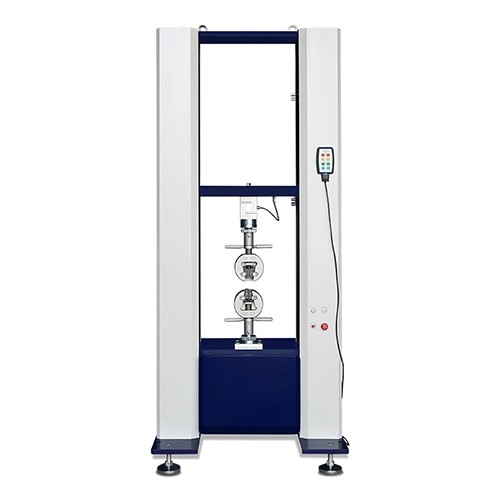

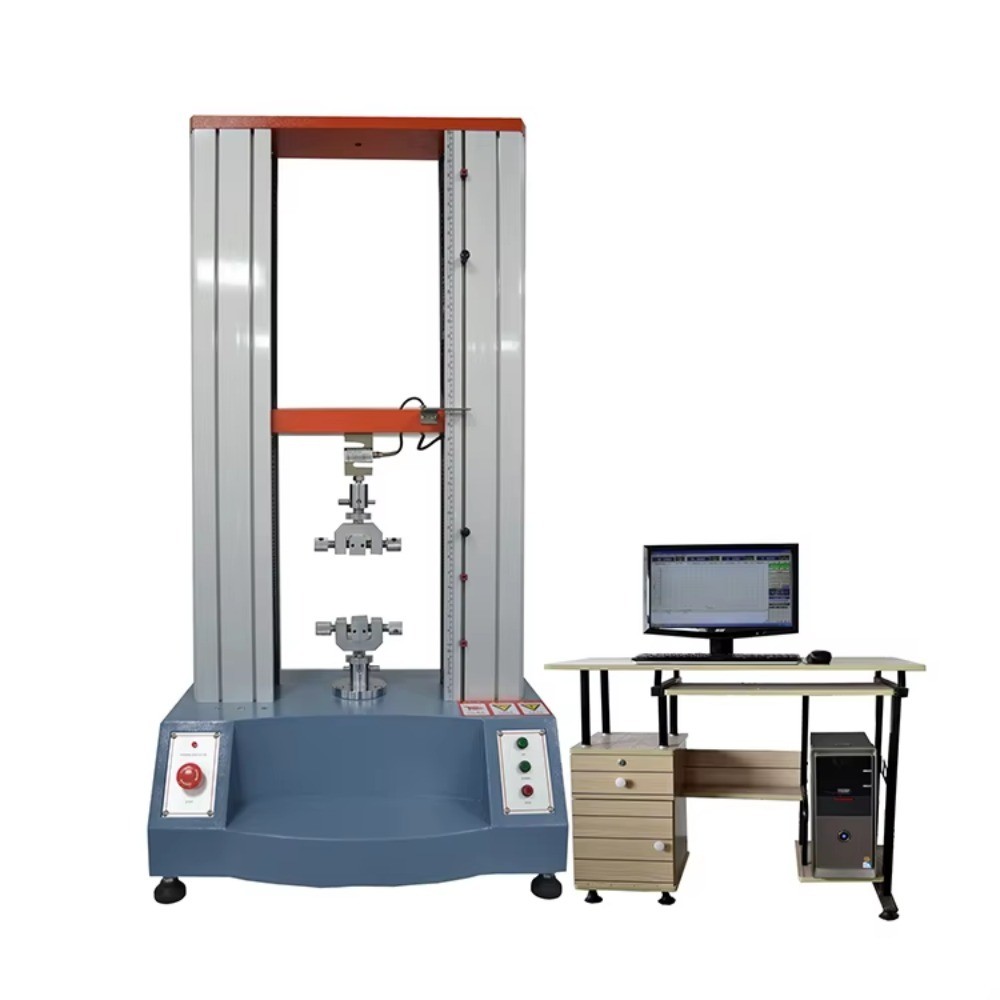

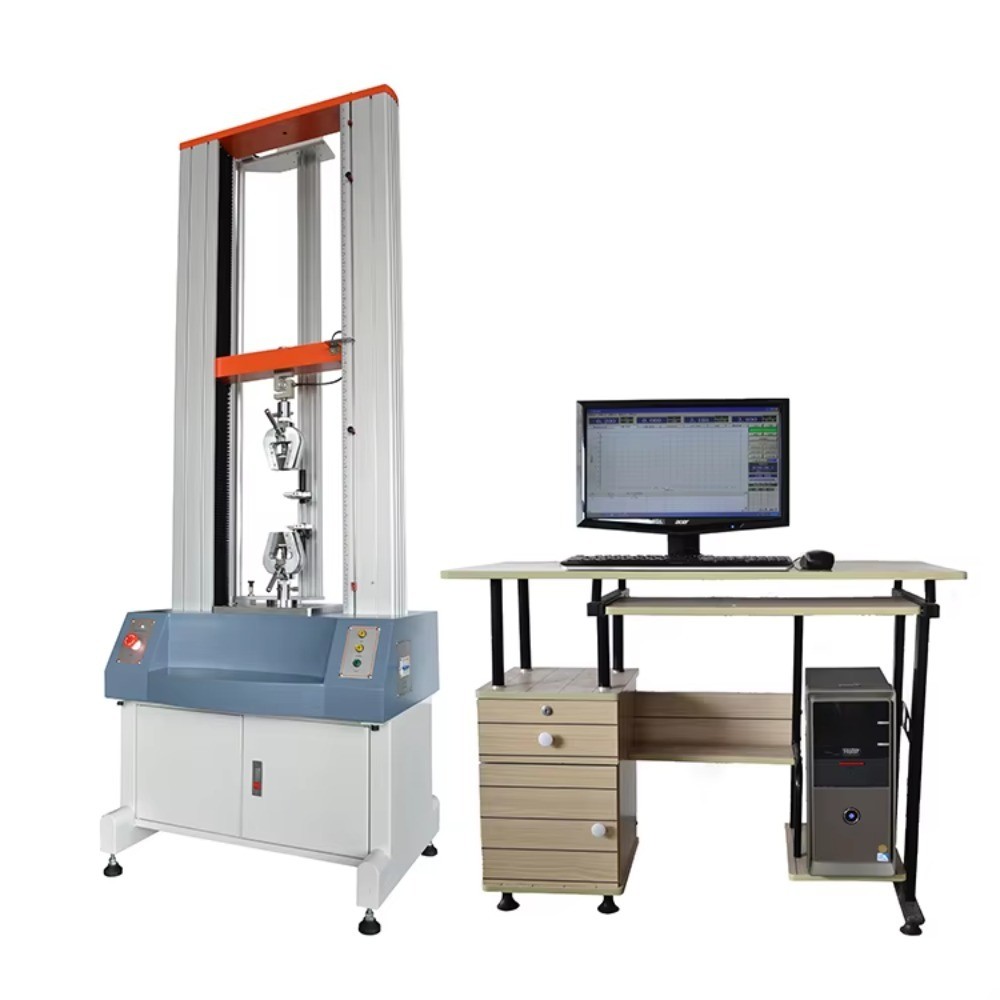

Double Column Tensile Tester Machine

Product Item : ZYS-11
Category： Tensile Testing Machine
Double Column Tensile Machine
Tensile Machine
tensile tester
tensile strength test
Product description：Tensile tester machine is essential test equipment in many types of physical testing laboratories and can be used to perform a wide range of tests. The different categories of tests that can be perfor
INQUIRY

Product Introduction

Tensile tester machine (also commonly referred to as "general-purpose testing machines" because many devices also operate in compression mode) is essential test equipment in many types of physical testing laboratories and can be used to perform a wide range of tests. The different categories of tests that can be performed include tensile strength, tear resistance, peeling, puncture, compression, shear, and three-point bending, as well as the evaluation of specific properties of a product part or assembly.

Technical Data

Max. capacity	5, 10, 20, 50, 100, 200, 500, 1000, 2000, 3000 kg
unit	G, KG, N, LB can be exchanged
Accurate grade	0.5 Level /Level 1
Display device	The computer is controlled
resolution	1/300,000
Effective accuracy	±0.2% (0.5 levels) or ± 1% (1level).
Maximum width	400 mm, 500 mm (or customized)
Max. stroke	800 mm, 1300 mm (optional)
Speed range	0.05-500 mm/min (adjustable).
motor	Servo motor + high-precision ball screw
Elongation accuracy	0.001 mm (rubber or soft plastic) / 0.000001 mm (metal or hard plastic or others).
impetus	AC220V, 50/60hz (customized).
Machine size	8005002200 mm

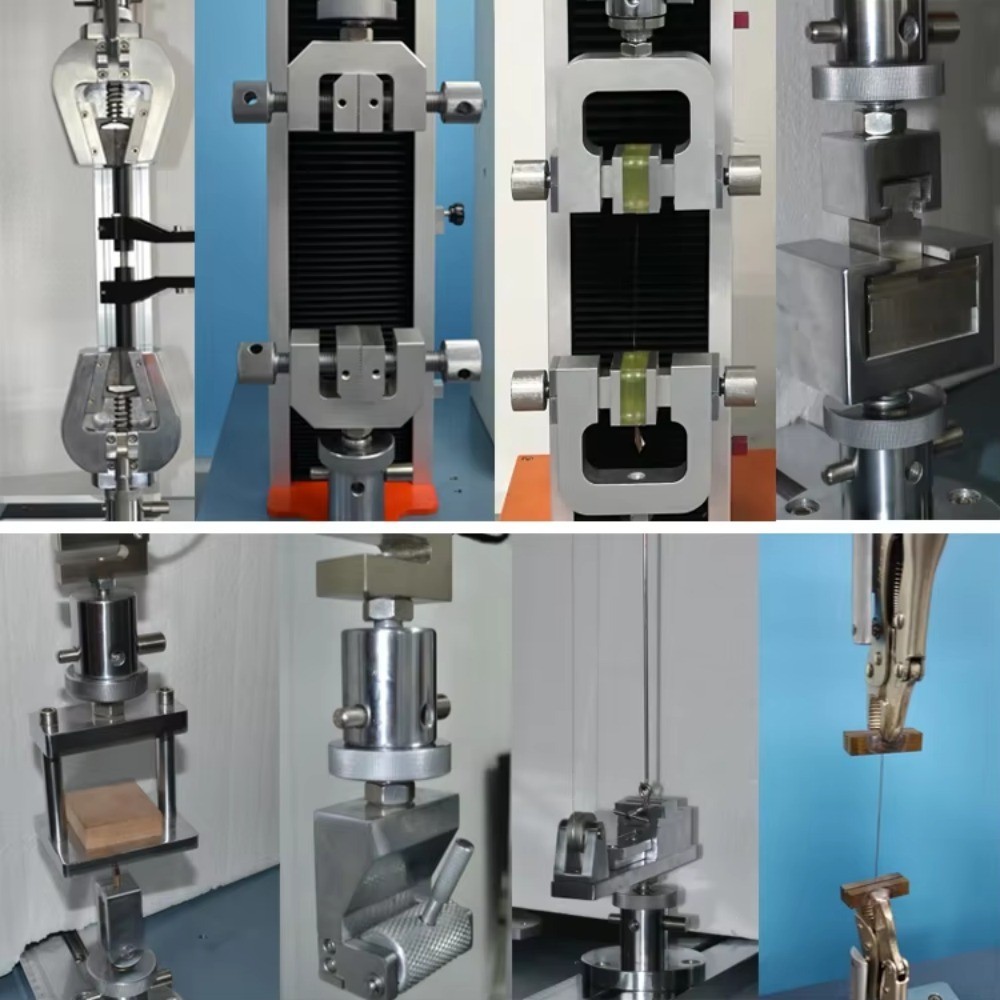

Standard accessories	Stretch fixtures, tool kits, computer systems, English software CDs, User manual
