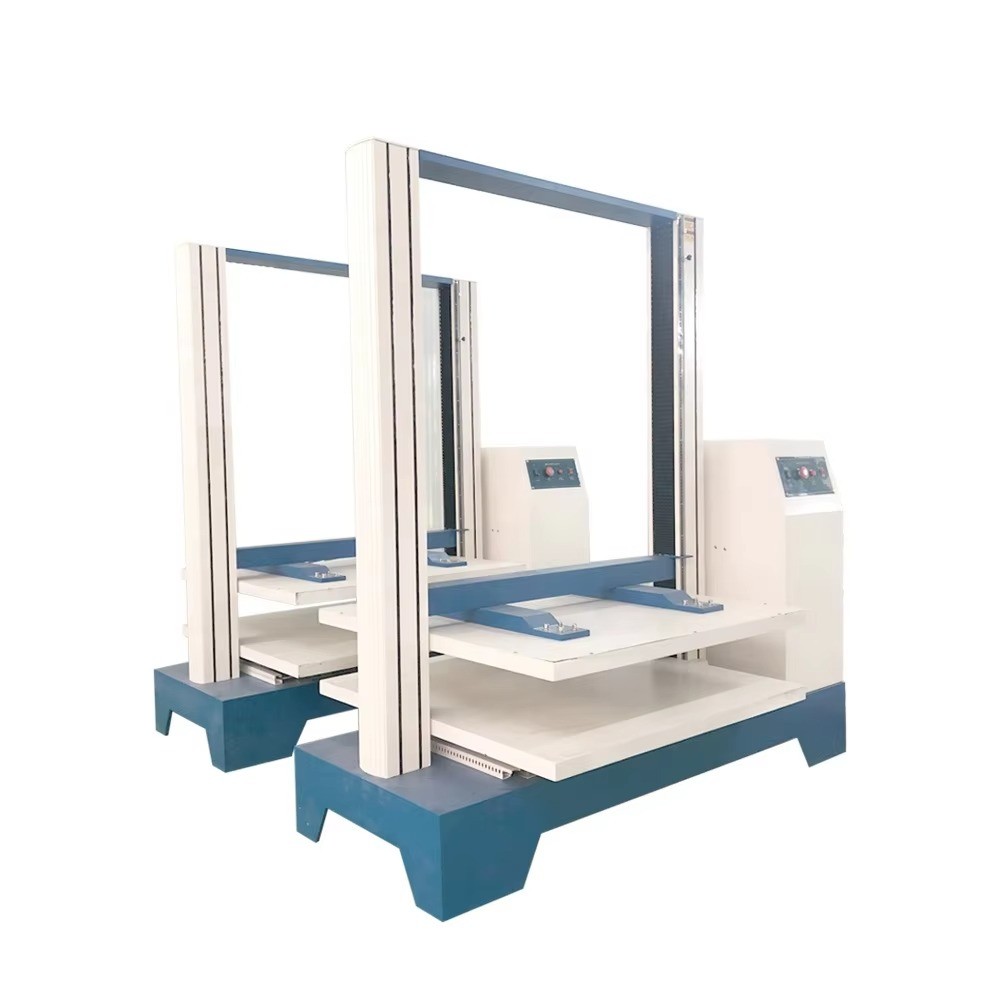

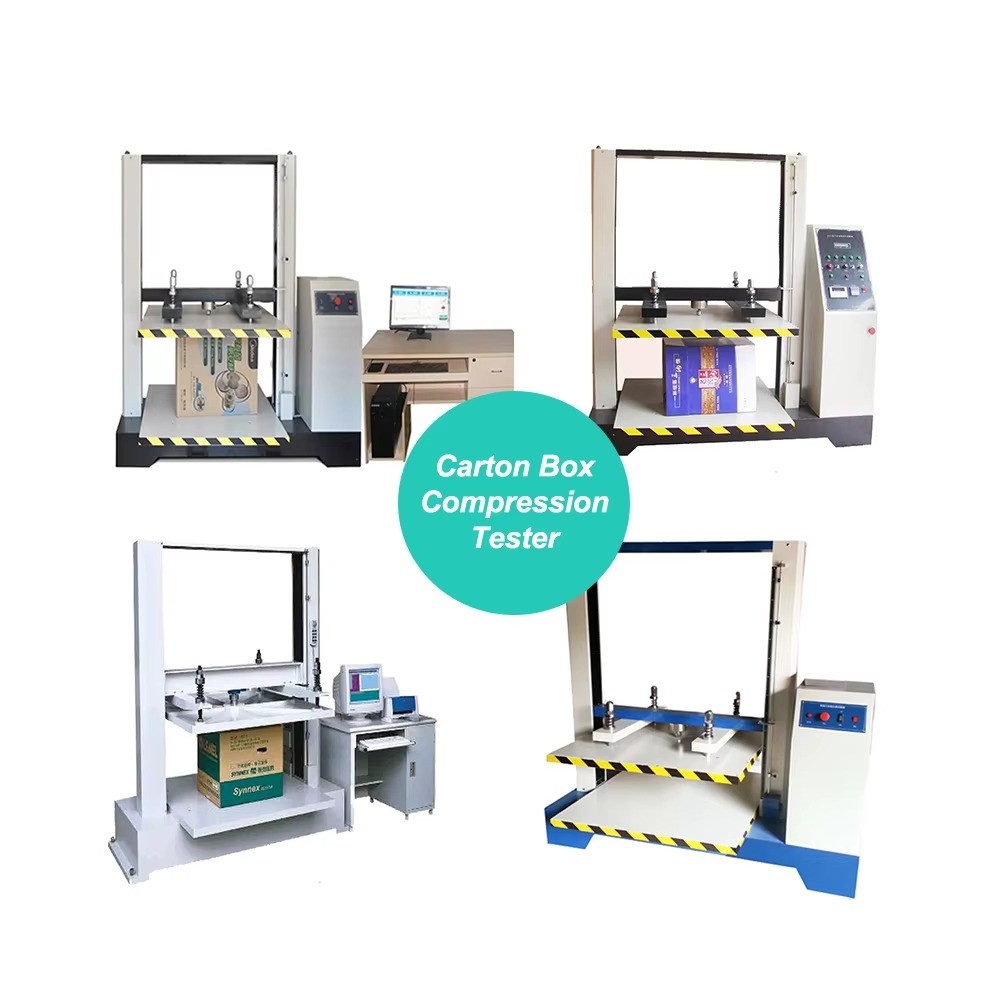

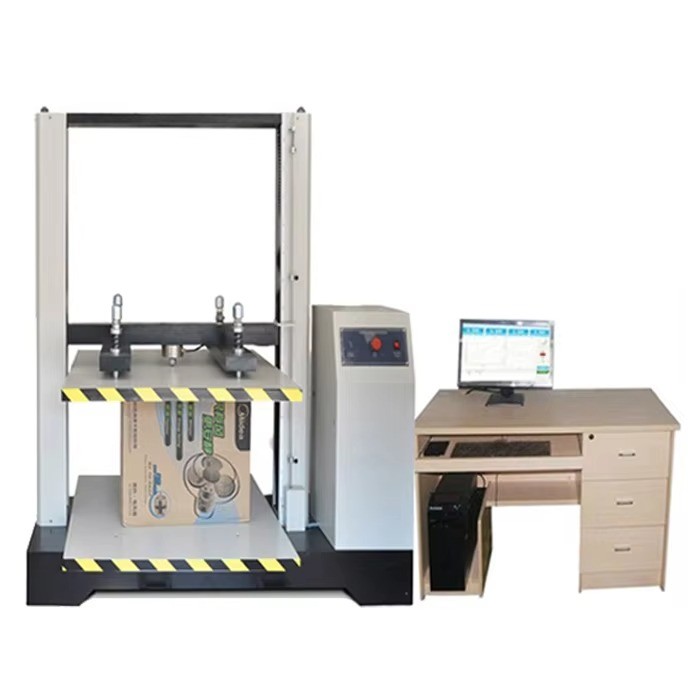

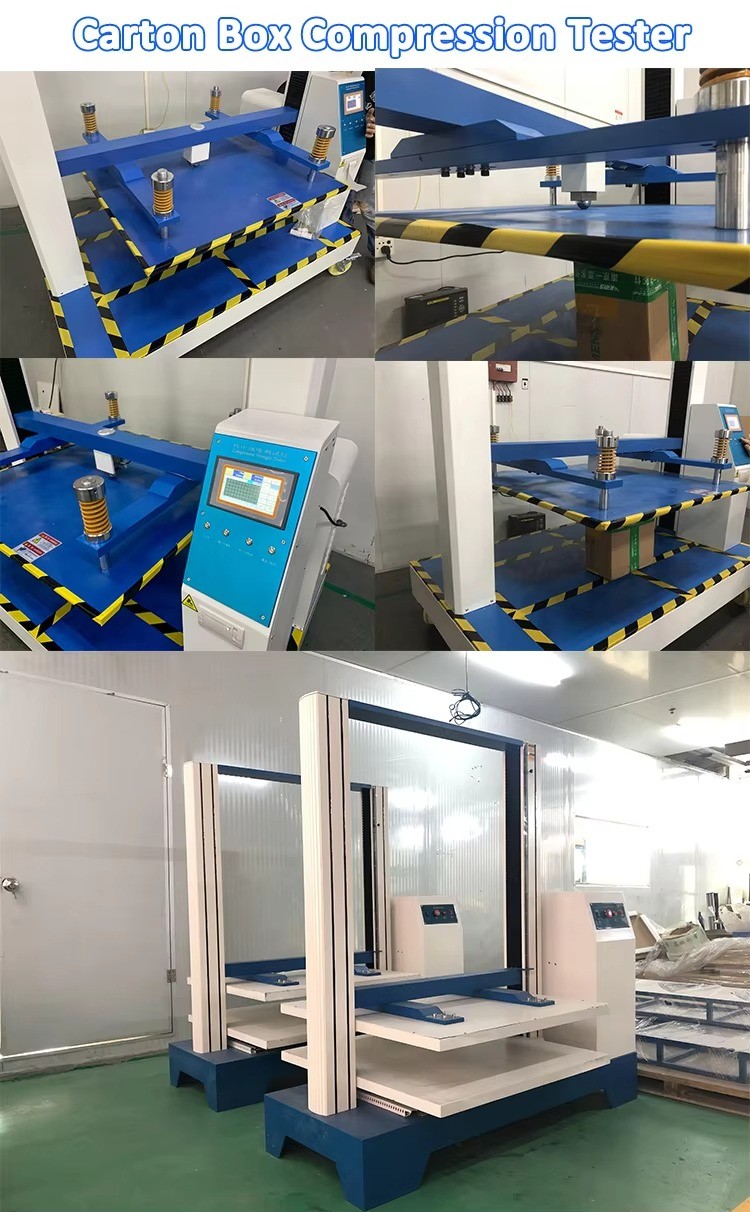

Carton Box Compression Strength Test

Product Item : CST-100
Category： Paper, Packaging & Print
Carton Box Compression Strength Test
Compression Strength Test
Compression Test
Product description：It is used for all kinds of packing boxes and containers pressure resistance, compressive strength test. Test results can be used as the important bases for factories determining the height of packing
INQUIRY

Product Introduction and Standards

It is used for all kinds of packing boxes and containers pressure resistance, compressive strength test. Test results can be used as the important bases for factories determining the height of packing boxes or designing the packing box.

Test Standards : TAPPI-T804, JIS-Z0212, ISO2872, NF H13-001, CNS 2236/3511

Technical Data

Capacity	100kg, 500kg, 1000kg, 2000kg, 5000kg or customize
Resolution	1/100,000
Correctness of force	Better than ±1%
Correctness of distortion reading	Better than ±1%
Effectual range of testing force	1~100%F.S
Unit	kgf,gf ,N,kN,lbf
Test space	1000*1000mm (can customize)
Space between platen	1000mm (can customize)

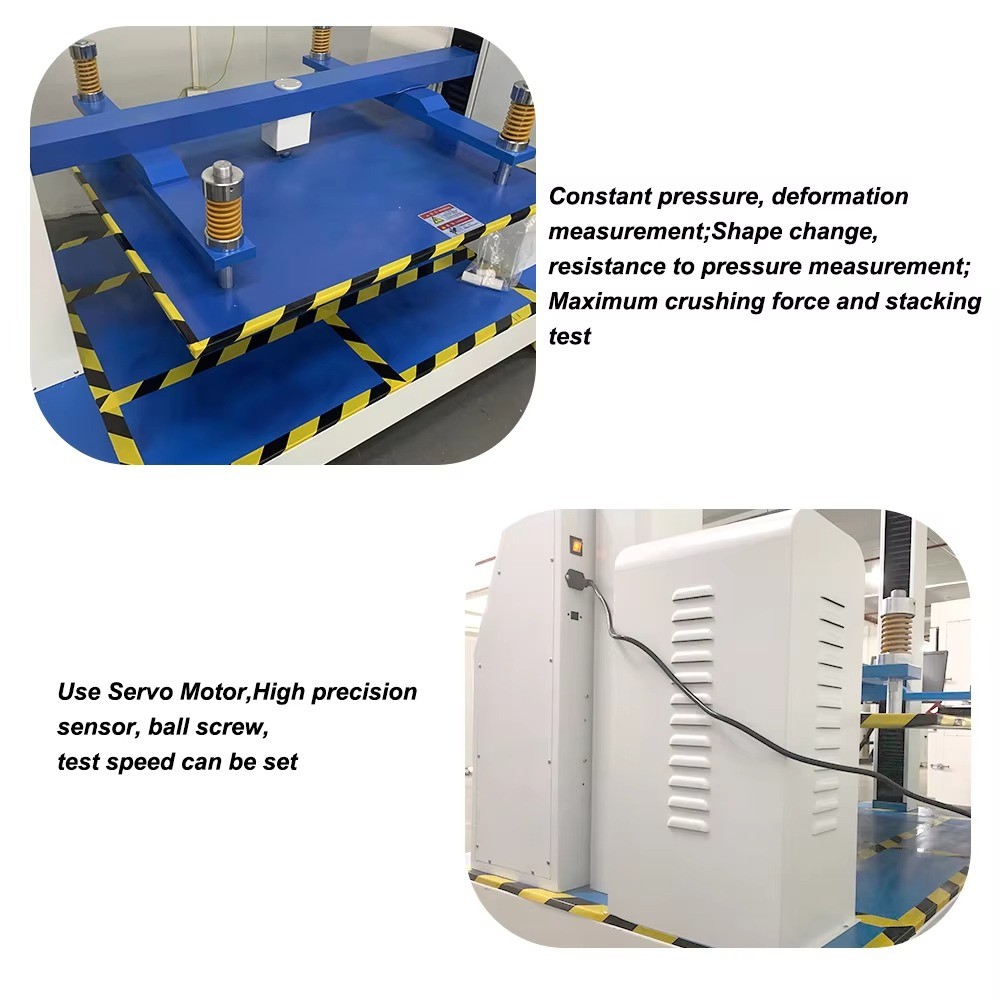

Drive System	servo system, precision ball screw, DC variable speed drive system
Test speed	0.1~200mm/min, keyboard inputting
Return speed	500mm/min
Stop mode	Set limits of security, an urgent stop key, programable force, and elongation the setting, specimen damage sensing
