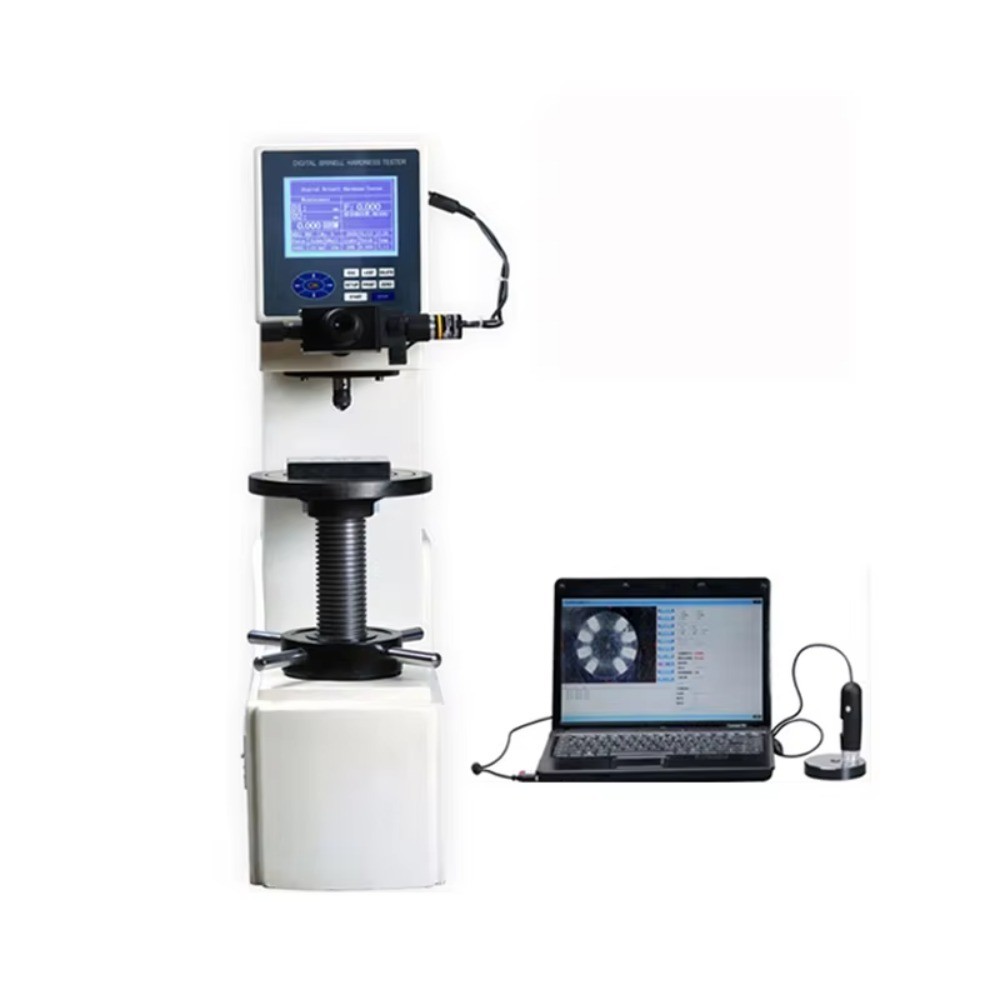

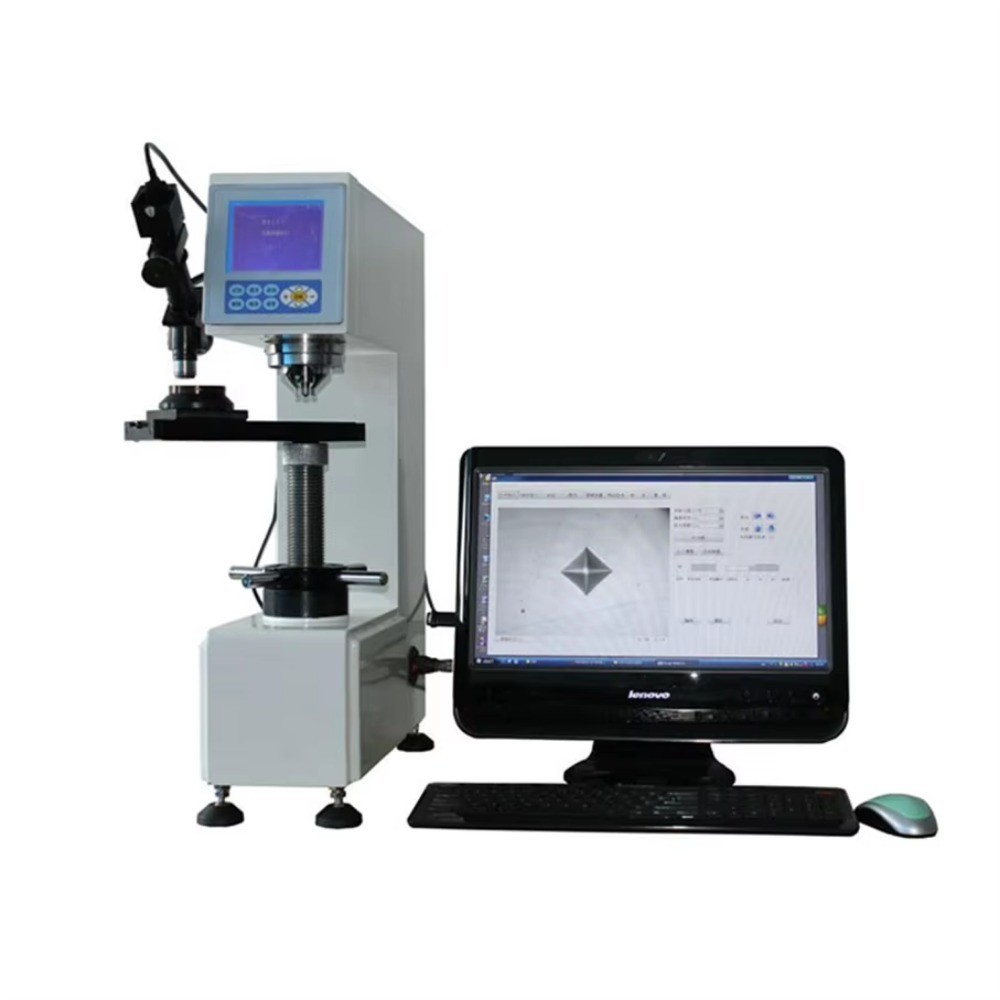

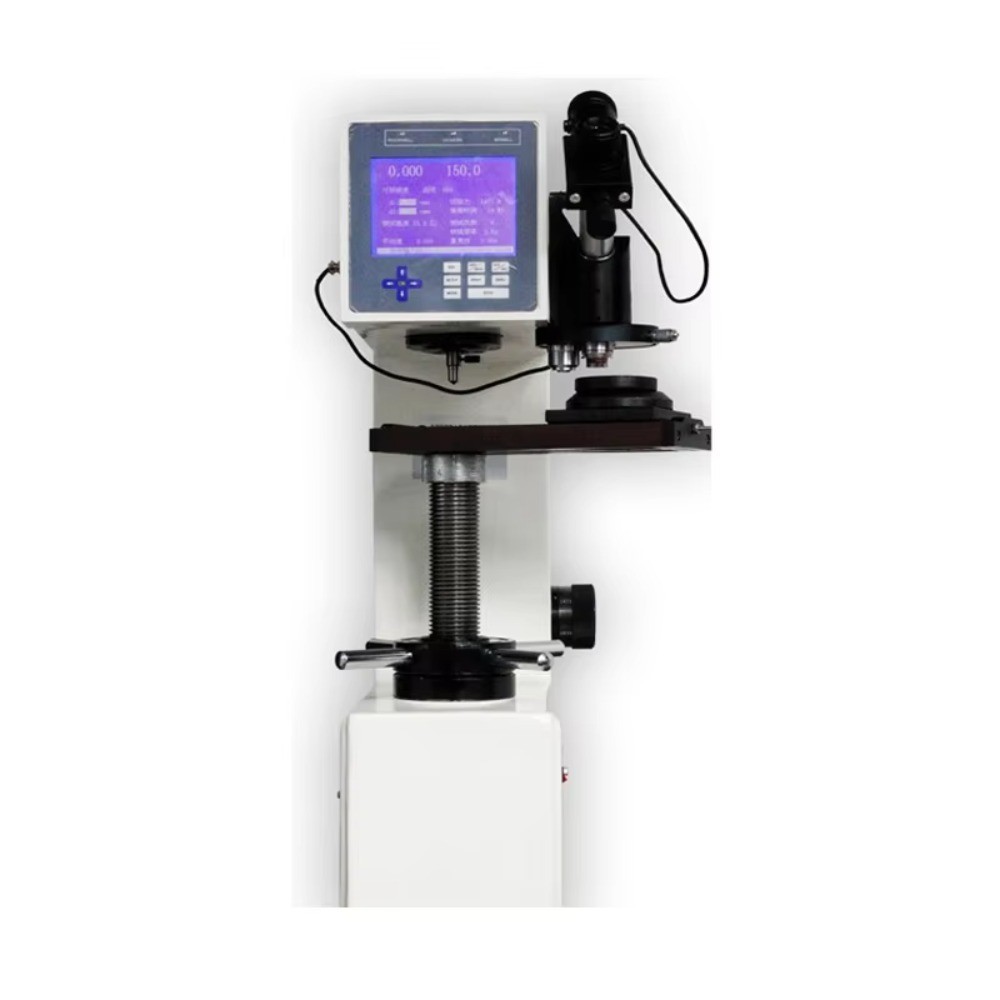

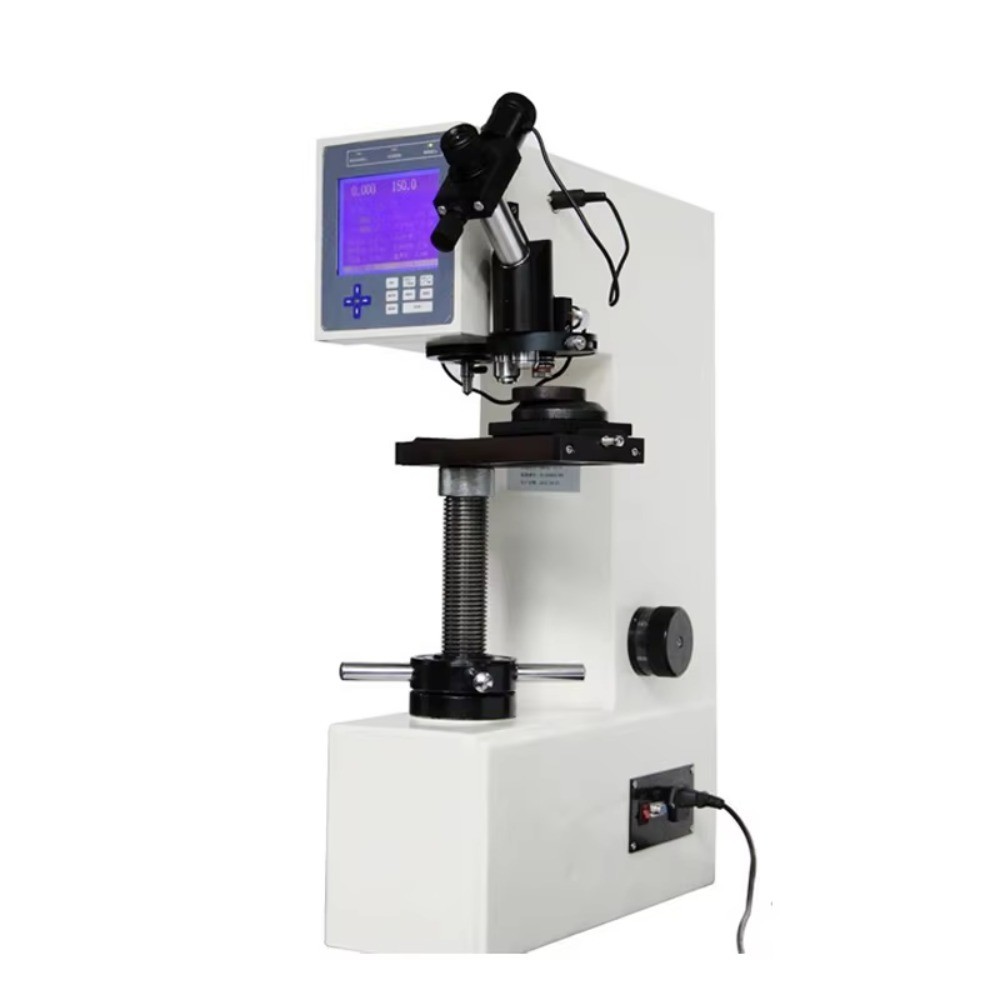

Rockwell Brinell Vickers Hardness Meter

Product Introduction

The hardness tester is mainly used for surface coating, steel, non-ferrous metals, ceramics, alloys, etc.; heat treatment, carbonization, hardening layer, nitriding layer; Small and thin parts, etc. Hardness tests, such as depth and gradient layers of carbonized and hardened layers.

Features

The backlight brightness can be adjusted in 20 levels

High-definition optical system

Diagonal length D1 and D2 encoder inputs to reduce manual reading errors

The objective lens and indenter can be automatically switched and precisely positioned

Test results and data processing can be output via printer.

Large 4-inch LCD display with menu structure

The testing process is automatic and easy to operate

Easy hardness scale conversion

Technical Data

Test Force

Conversion scale: Rockwell, Surface Rockwell, Brinell

Hardness value indication: large LCD screen display

Minimum unit of measurement: 0.125 & micro; m (with objective)

Test Microscope Magnification: 200X (Measured), 100X (Observed)

Data output: Printer internal

load control (applied force): automatic (loading, staying, unloading)

Maximum specimen height: 165 mm

Distance from the indenter to the outer wall: 130 mm

Power supply: AC220V+5%, 50-60hz

Carrying standard: GB/T4340.2 Chinese standard, JJG151 inspection rules

Net weight: approx. 45 kg
