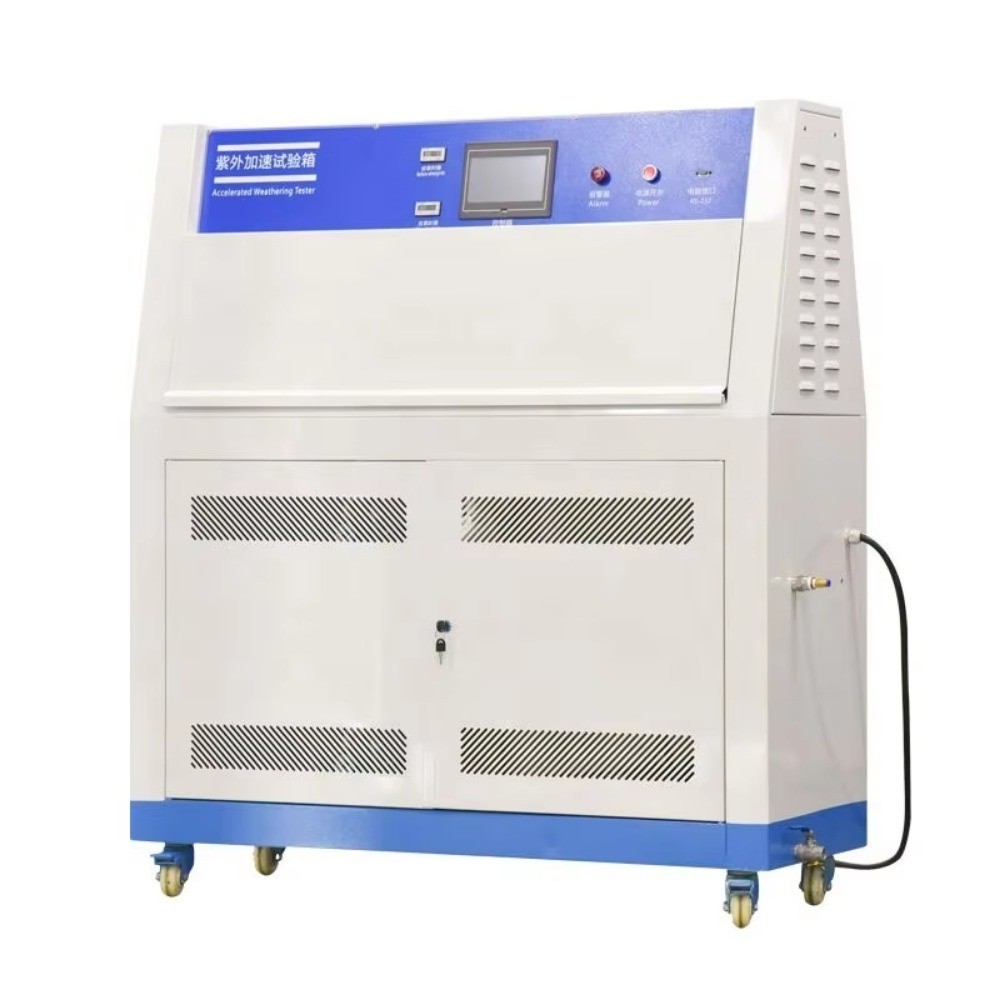

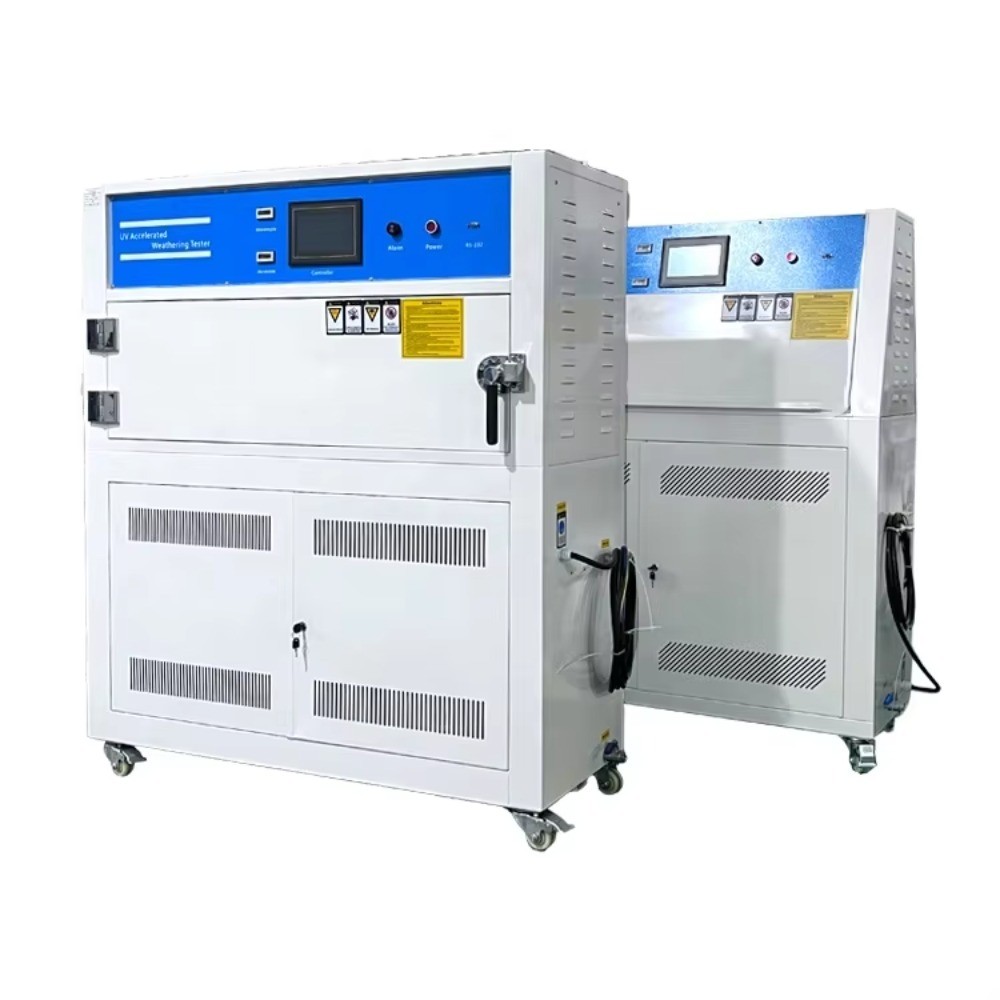

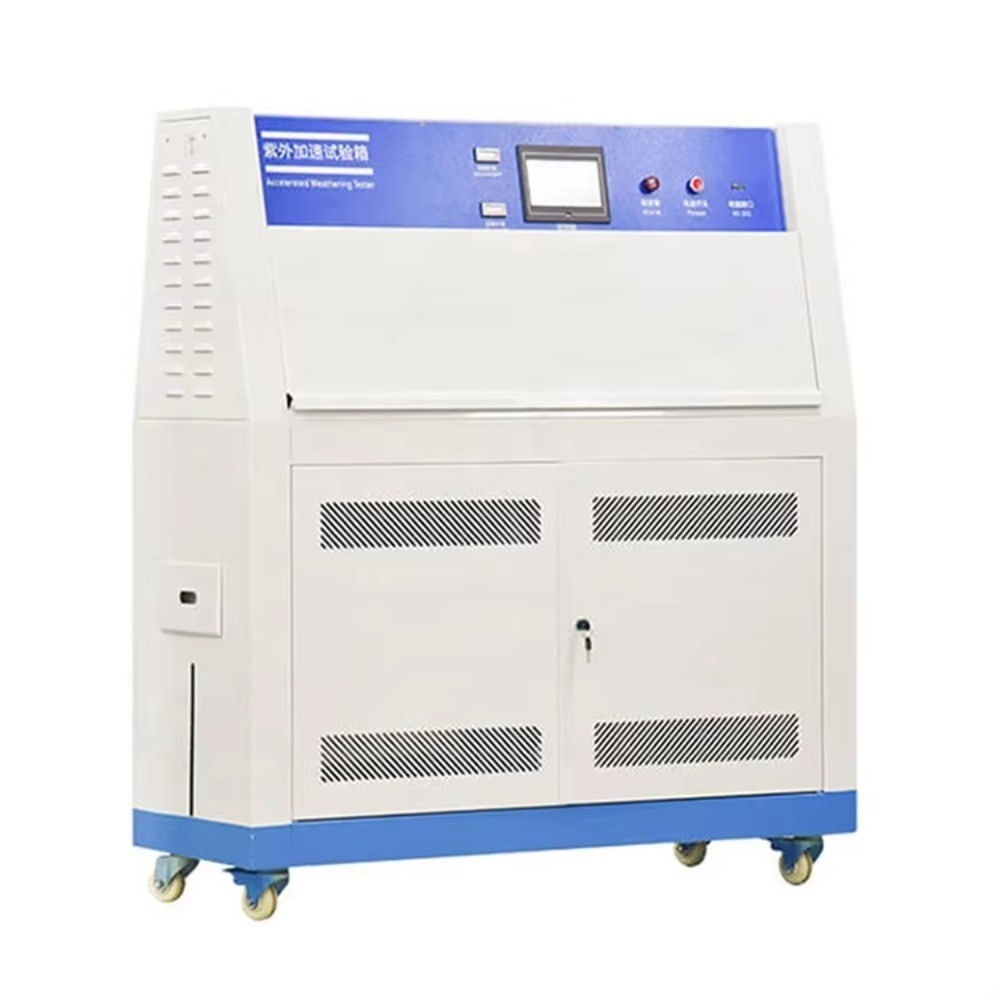

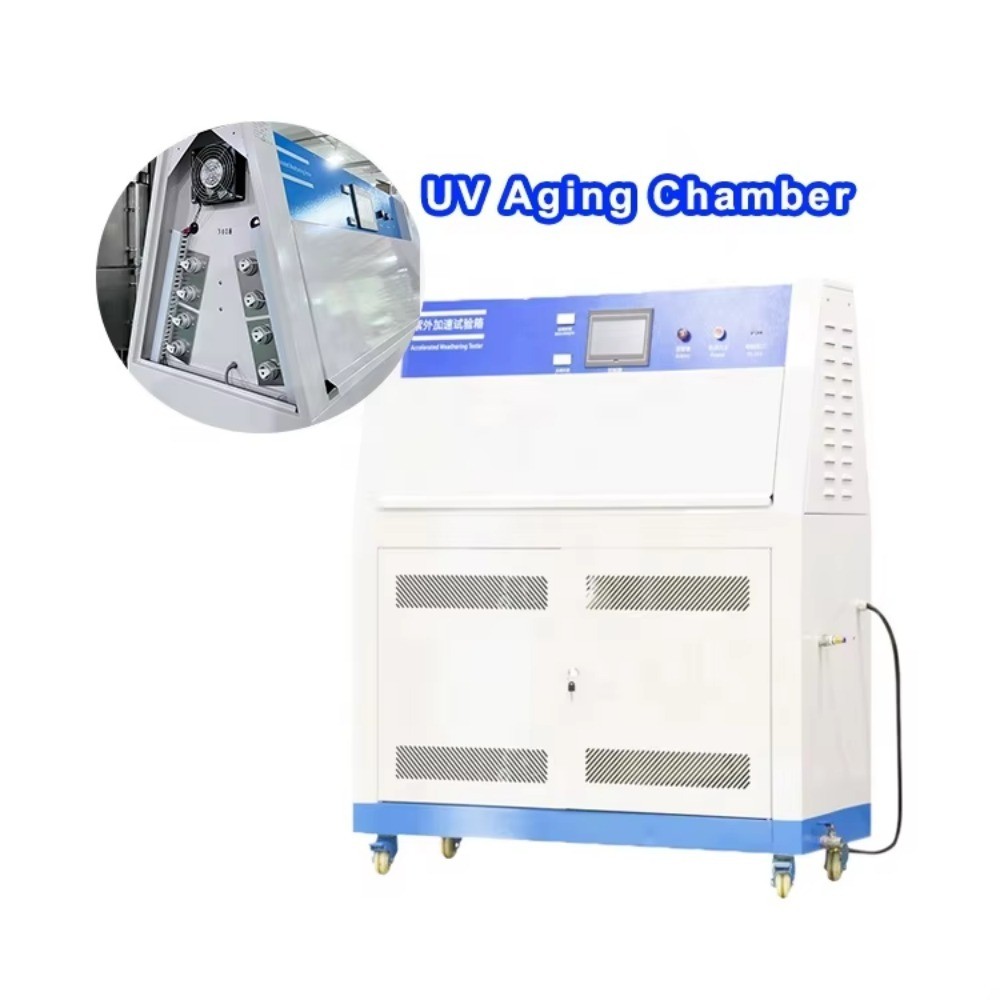

UV Aging Test Chamber

Product Item : UVC-48
Category： Environmental Test Chamber
UV Aging Test Chamber
UV Aging Test
UV Test Chamber
Accelerated Weathering Tests
Product description：It can provide reliable aging test data to make the exact prediction of products’ weathering fastness (aging resistance)., which is conducive to sift and optimize the formula. It is used in many indus
INQUIRY

Product Introduction and Application

It can provide reliable aging test data to make the exact prediction of products’ weathering fastness (aging resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine, etc.

Technical Data

Inside Dimensions (CM)	45×117×50
Outer Dimensions (CM)	70×135×145
Rate of Work	4.0(KW)
Temperature Range	RT+10℃~70℃
Humidity Range	≥95%R.H
Distance Between Lamps	35mm
Distance Between Samples and Lamps	50mm
Specimen Number	L150mm×W75mm, about 48pics
Ultraviolet Wavelength	290nm~400nm UV-A340,UV-B313,UV-C351(state clearly in your order )

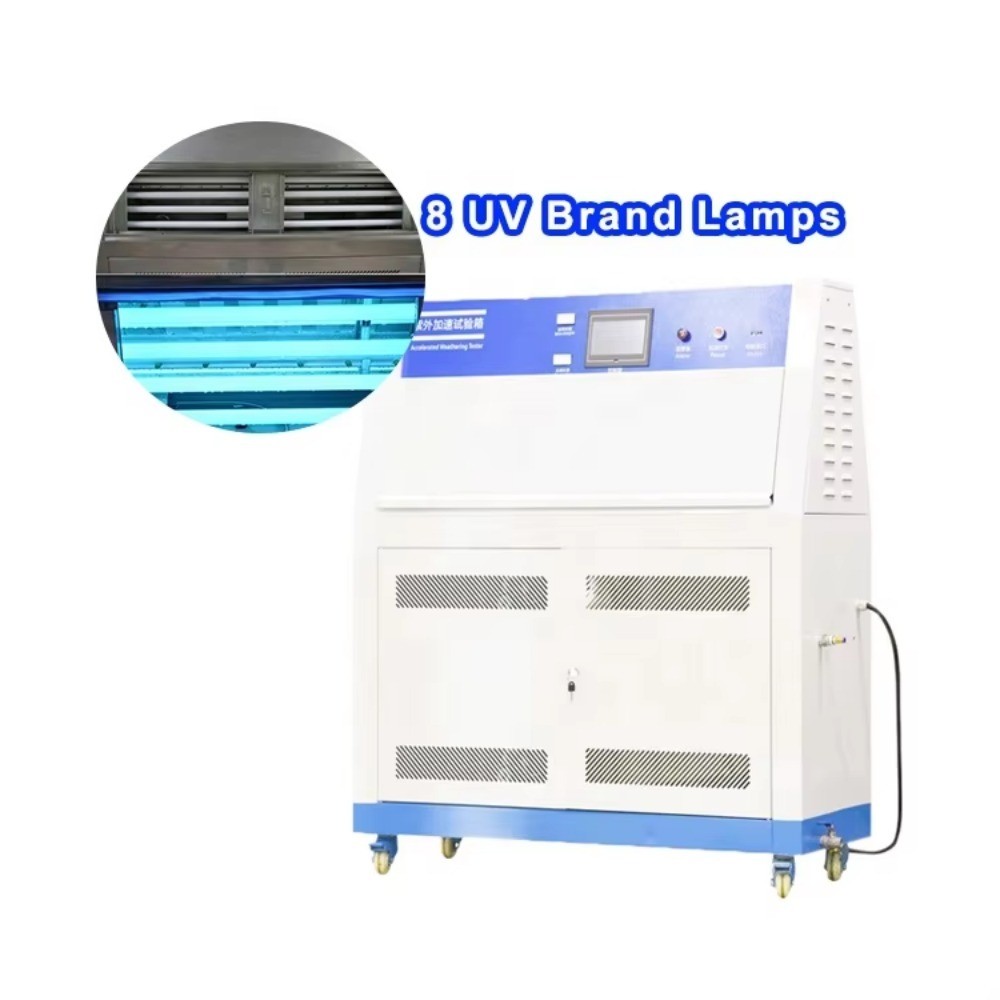

Rate of the Lamp	40W

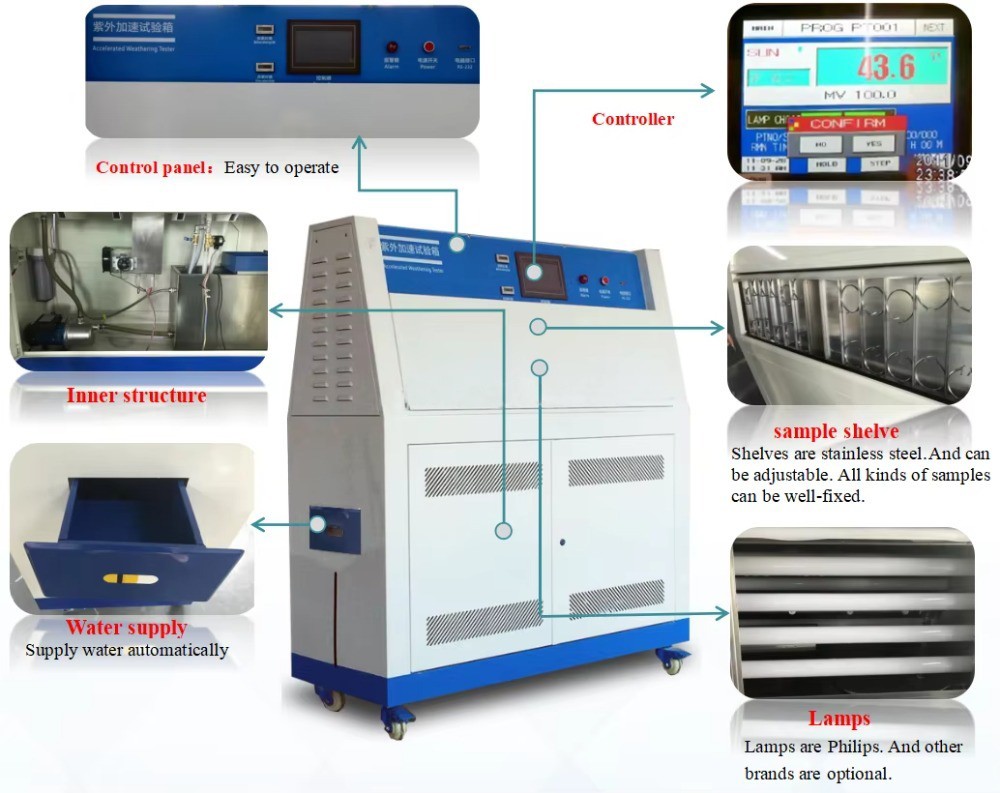

Controller	touch screen programmable controller
Condensation Humidifying System	stainless steel shallow evaporative humidifier
Blackboard Temperature	double metal blackboard meter
Water Supplying System	Humidification water supplying automatic control
Exposure Way	moisture condensation way exposure, light radiation exposure
Safety Device	leakage, short circuit, super temperature, water shortage and over-current protection
