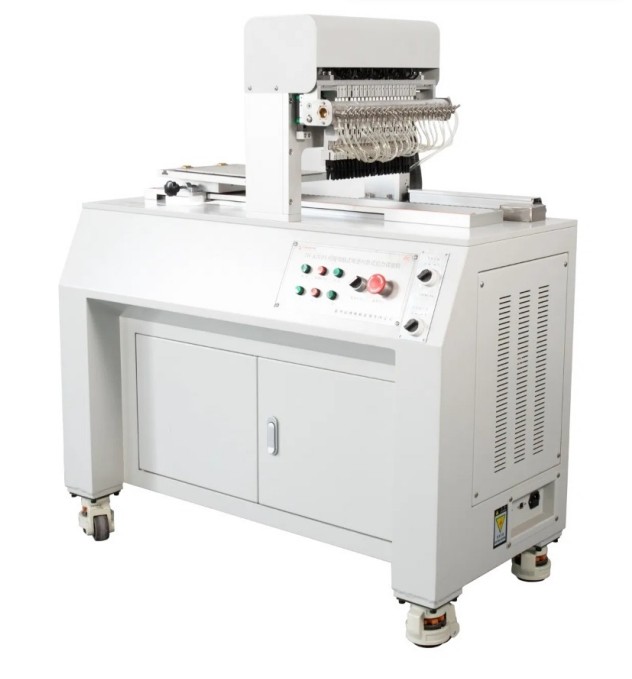

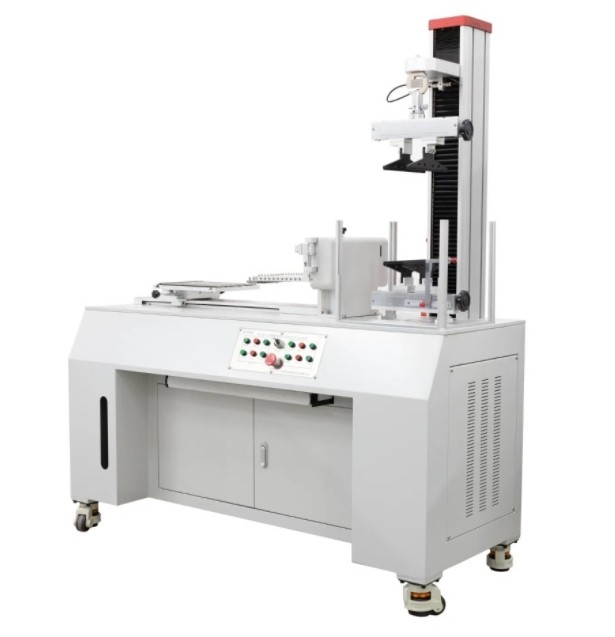

High-Speed Compound Material Tearing Tester with Large Effective Space

Product Item : ZHIYI-8210T
Category： Other
Product description：The testing machine is mainly used for testing solar PV modules, adhesive products and other material samples: Tensile,Stripping,Bending,Tearing and Other precision mechanical tests
INQUIRY

Model	ZHIYI-8210ST	ZHIYI-8210AT
Name	Servo computer composite cell tensile testing machine	Computer composite cell tensile testing machine
Capacity	10N 20N 50N 100N 200N 500N
Display mode	Computer display or (LCD display + computer display)
Power system	Imported servo motor + servo drive	Servo motor + servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level
Load range	0.2%-100%FS	0.2%-100%FS
Force error	Within±0.5%	Within±0.5%
Force resolution	1/±500000	1/±500000
Deformation ranger	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%
Deformation resolution	0.0001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%
Displacement resolution	0.0005mm	0.001mm
Force control rate adjustment range	0.01-10%FS/S	--
Force control rate accuracy	Within±1.0%	--
Deformation rate adjustment range	0.02%-5%FS/S	--
Deformation rate control accuracy	Within±1.0%	--
Displacement speed range	0.001-500mm/min	1.0-500mm/min
Effective test width	230*230mm
Effective space	560mm/700mm
Dimension	15005801722mm
Power	Single-phase 220V 1kW
Weight	about 80kg
