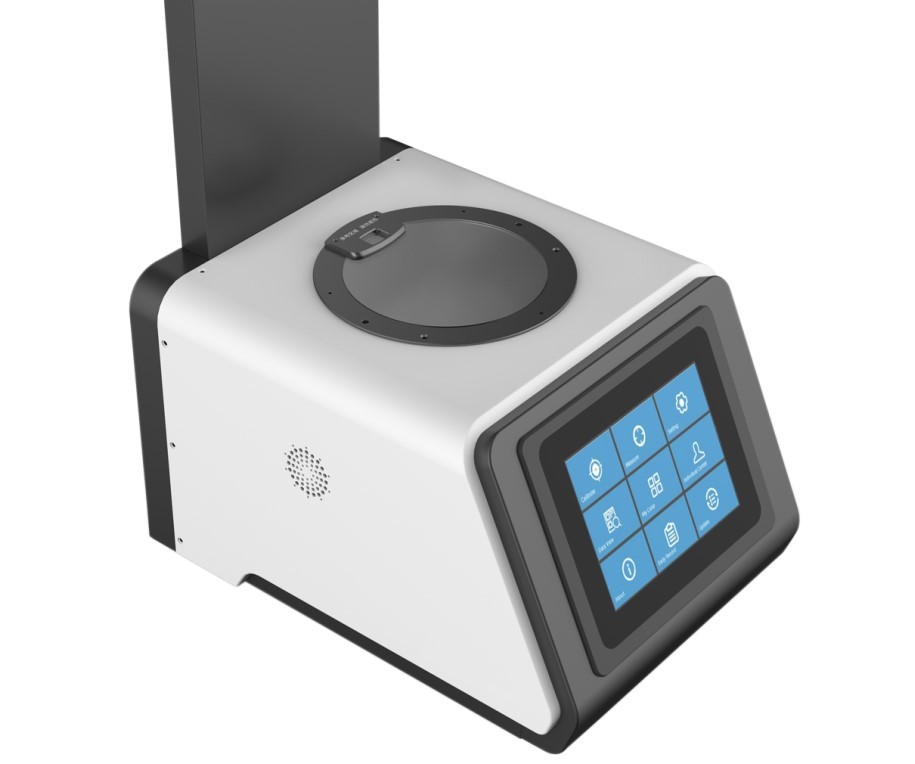

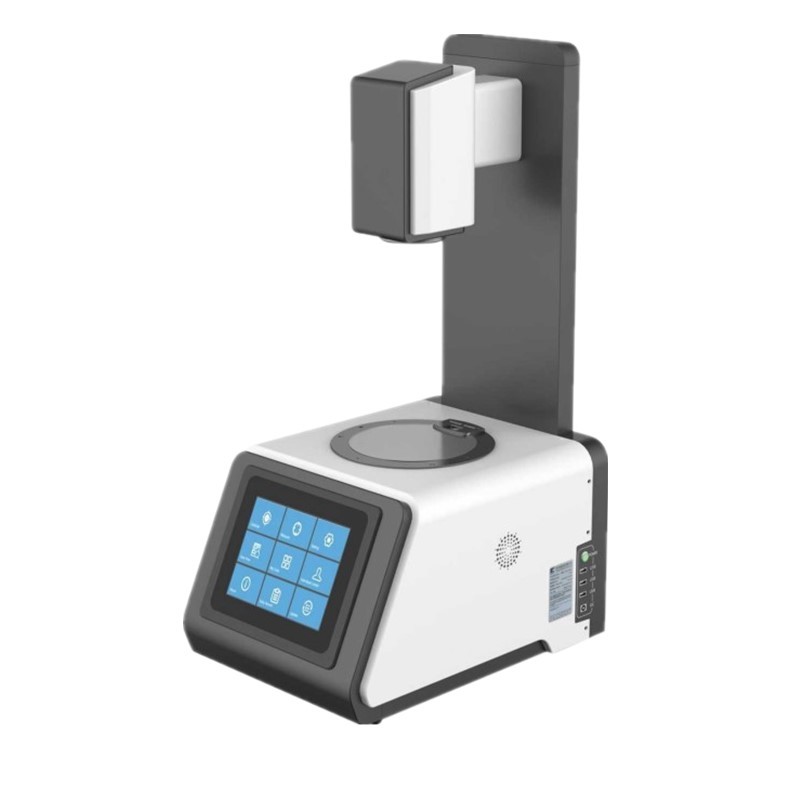

Laser Transmittance Imaging Analyzer for laser quality control

Category： Paper, Packaging & Print
Product description：All-round scanning of the transmittance of welded plastic parts, multi-point simultaneous detection to ensure comprehensive detection
INQUIRY

Product Features

Full-screen scanning: All-round scanning of the transmittance of welded plastic parts, multi-point simultaneous detection to ensure comprehensive detection.

Flexible settings: You can freely define the detection area and set the range of light transmission rate to meet different needs.

Automatic judgment: Automatically extracts the light transmittance and welding quality of the inspection area, and accurately judges OK or NG.

Multi-point testing: Suitable for multi-point testing of samples, effectively avoiding leakage.

Convenient operation: the test operation is simple and convenient, even non-

professionals can easily get started.

Extremely fast: Measurement is completed within one second, improving work efficiency.

Technical Parameters

Model	ZHIYI-1004
Wavelength	850nm, 905nm, 915nm, 940nm, 980nm, any wavelength can be selected
Transmittance range	0-100%
Single measurement time	＜0.9 seconds
Measurement repeatability	0.5%
Measurement accuracy	0.01%
Maximum measurement size	150*150mm
Maximum detection distance	250mm
Calibration method	Automatic calibration
Measurable parameters	Multi-point transmittance, maximum value, minimum value, average value, transmittance change curve over time, welding quality inspection
Measurement method	Vertical irradiation, multi-point comprehensive simultaneous detection
Computer	Built-in industrial tablet computer
Operating system	Win10
Optional accessories	Calibration certificate
