Home Products Paper, Packaging & Print Paper Cup Stiffness Tester

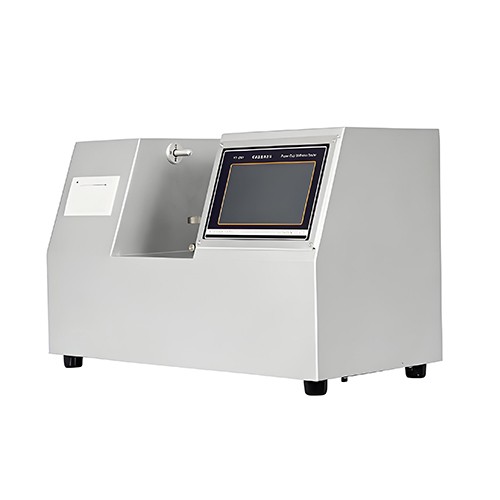

Paper Cup Stiffness Tester

Product Item : ST-200
Category： Paper, Packaging & Print
Paper Cup Stiffness Tester
Stiffness Tester
Product description：Paper cup stiffness tester is designed to test the stiffness of paper cups, paper bowls, paper buckets.
INQUIRY

Paper cup stiffness tester is designed to test the stiffness of paper cups, paper bowls, paper buckets.

Paper Cup Stiffness Tester Features

● The movable bench can be raised and lowered and locked, suitable for samples of different heights

● Cotex-M4 ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.

● Double measuring head structure design, more accurate test data

● The instrument has the function of automatically restoring the initial position over the range

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Test data can be exported to USB flash drive.

● The system and screen software can be upgraded through the network or USB flash drive.

● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.

● Test data can be uploaded to cloud server, and paper test data can be monitored in real time with QMS paper quality management system (purchased separately).

Paper Cup Stiffness Tester Technical Data

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz,100W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen,1024 x 600 resolution
4	Paper cup size	Measurable paper cup diameter：35～150mm，Paper cup height：15≤L≤180mm
5	Measuring range	0.2~50N
6	Resolution	0.01N
7	Indication error	±0.5％(Range 5%～100%)
8	Data storage	50 times test data
9	Data export	Export data to USB flash drive
10	Print	Built-in thermal printer
11	Communication Interface	USB、WIFI(2.4G)
12	Dimensions	560×275×350 mm
13	Net Weight	36kg
