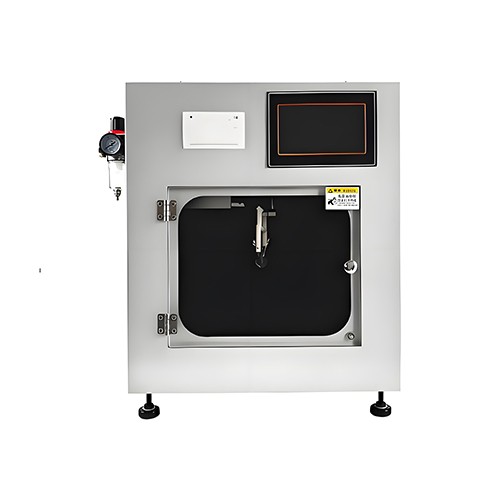

Tissue Paper Powder Drop Rate Tester

Product Item : DRT-10
Category： Paper, Packaging & Print
Tissue Paper Powder Drop Rate Tester
Tissue Powder Drop Rate Tester
Powder Drop Rate Tester
Product description：Tissue Paper Powder Drop Rate Tester is a toilet paper powder loss rate detection instrument developed according to relevant standards, which is suitable for all kinds of toilet paper. Working princip
INQUIRY

Tissue Paper Powder Drop Rate Tester is a toilet paper powder loss rate detection instrument developed according to relevant standards, which is suitable for all kinds of toilet paper. Working principle: fix the long end of the prepared specimen on the specimen clamp, start the instrument, stop after swinging for a certain time, and weigh the mass before and after swinging.

Tissue Pa[er Powder Drop Rate Tester Features

Tissue Pa[er Powder Drop Rate Tester Technical Data

NO.	Parameter items	Technical Indicators
1	Power supply	AC(100～240)V，(50/60)Hz，100W
2	Working environment	Temperature: (10~35)°C, relative humidity ≤85%
3	Display	7-inch IPS high-definition screen, 1024*600 resolution capacitive touch
4	Number of swings	(180±2) times/min (50~200 times/min)
5	Swing distance	(100±5)mm
6	Standard swing time	2min (0.1~60 minutes).
7	Weighing range	0~200g (excluding specimen holder)
8	Compressed air pressure	0.2~0.3MPa
9	Resolution	0.001g
10	Data storage	50 test data
11	Data export	Export data to USB flash drive
12	Print	Built-in thermal printer
13	Communication interface	USB、WIFI（2.4G）
14	Dimensions	570×320×630 mm
15	Net weight	34kg
