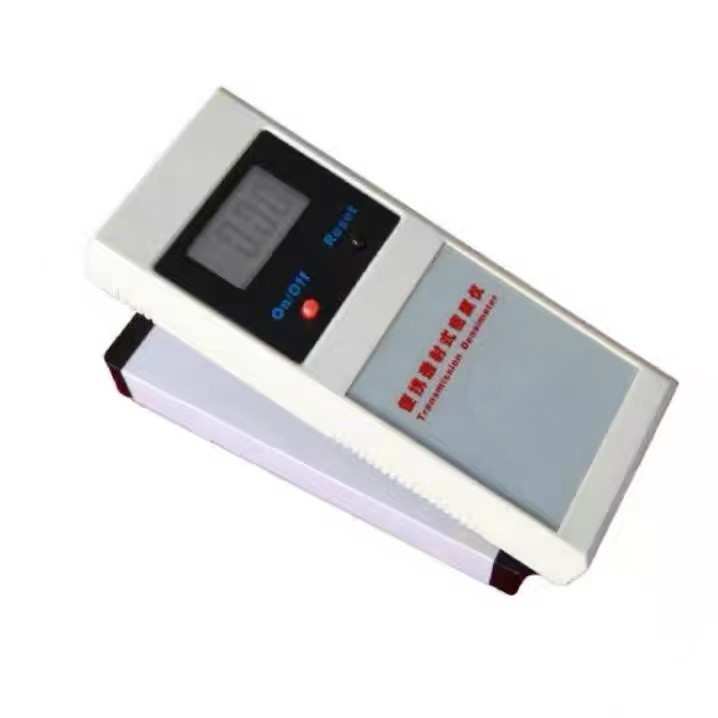

Portable Transmission Densitometer

Product Item : H-341
Category： Products
Transmission Densitometer
Densitometer
Dot area measurement
Product description：H-341 portable digital transmission densitometer is an instrument used to measure the amount of light passing through transparent materials (such as a film base) to determine the amount of light absor
INQUIRY

Portable digital transmission densitometer is an instrument used to measure the amount of light passing through transparent materials (such as a film base) to determine the amount of light absorbed by the surface. The instrument has the advantages of stable reading, simple operation and convenient carrying. It can be used in NDT, film, printing, packaging, etc. The instrument can be traced to the standard density film of China Academy of metrology. Each instrument is equipped with a calibration film for self- inspection.

Transmission Densitometer Technical Data

Measuring range	Density:0.00-5.50D Dot area Percentage:0-100%
Measurement area	ф2mm (aperture)
Measurement Geometry	Milky white glass diffuse emission type
Optical Structure	A light source（2856K） + V(λ) receiver
Stability of Reading	±0.02D or 1%
Repetition Precision	±0.01D
Error	0.0-3.5D 0.02D 3.5-5.5D 0.04D
Display	LCD Screen
Sampling time	0.5s
Length of measuring arm	145mm
Working Environment	Temperature 0-40℃ Relative humidity ≤85%
Power supply Time of continue working(battery)	Lithium battery or Power adapter 8 hours
Power	3W
Dimension (Length×Width×Height)	182 x 76 x 75mm
Weight	500g
