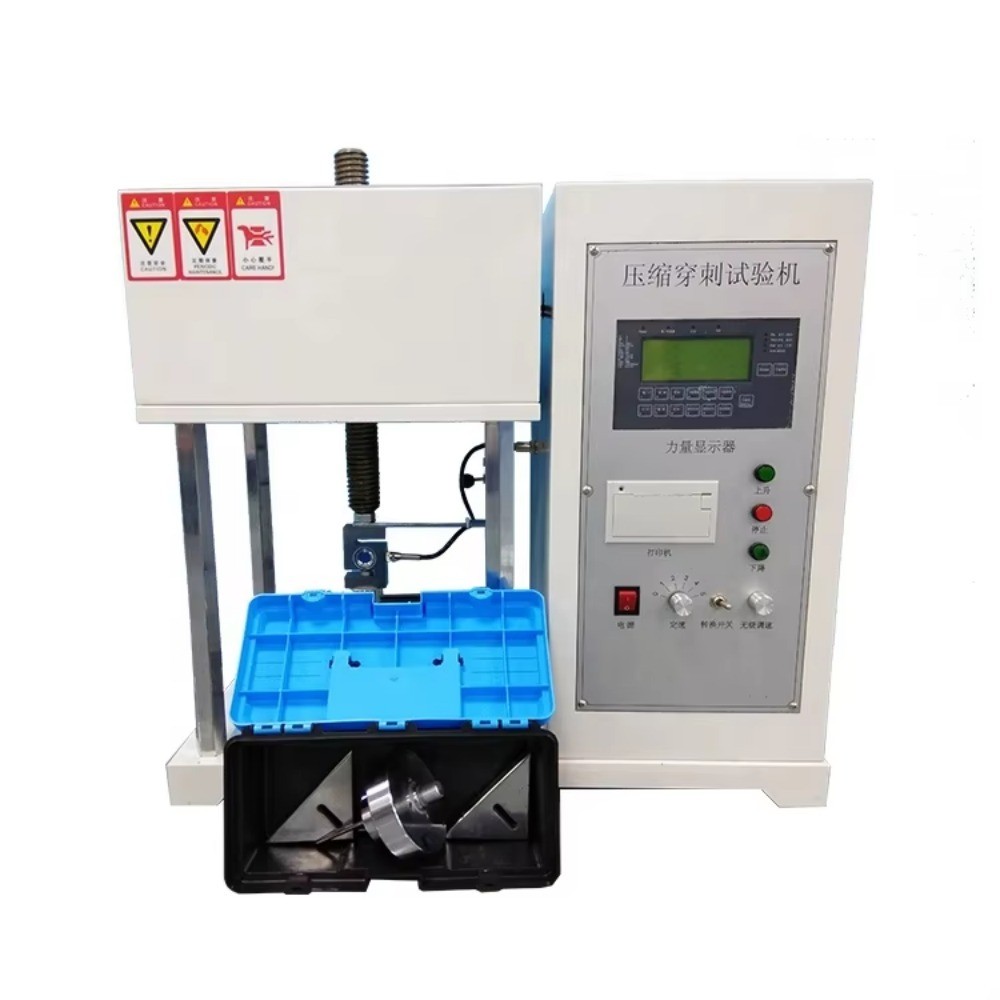

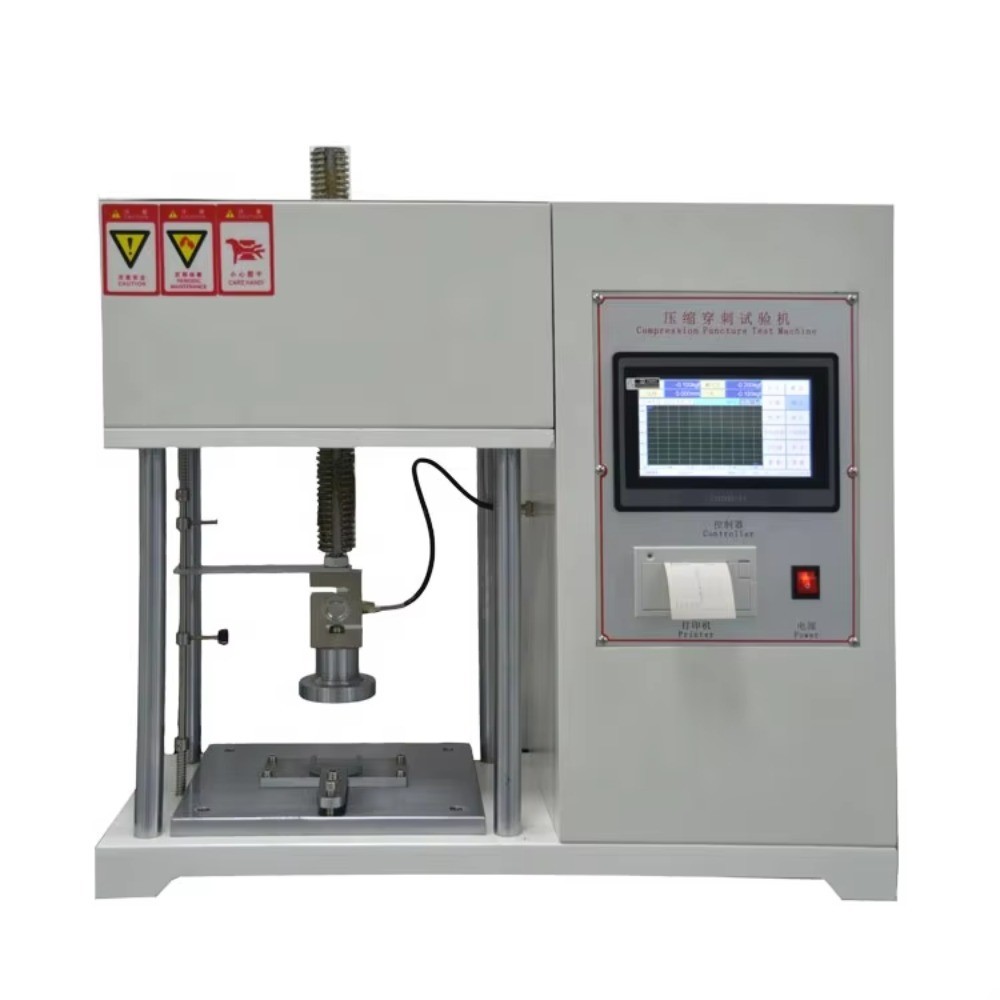

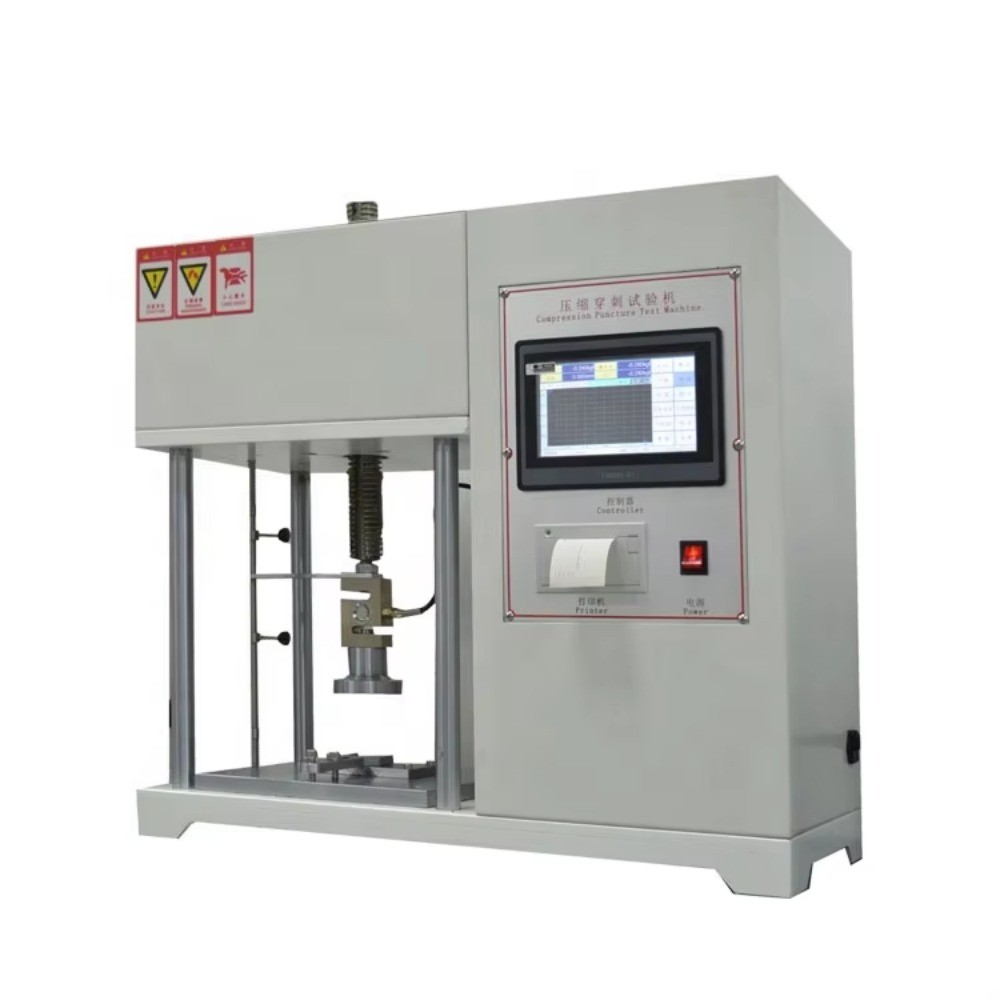

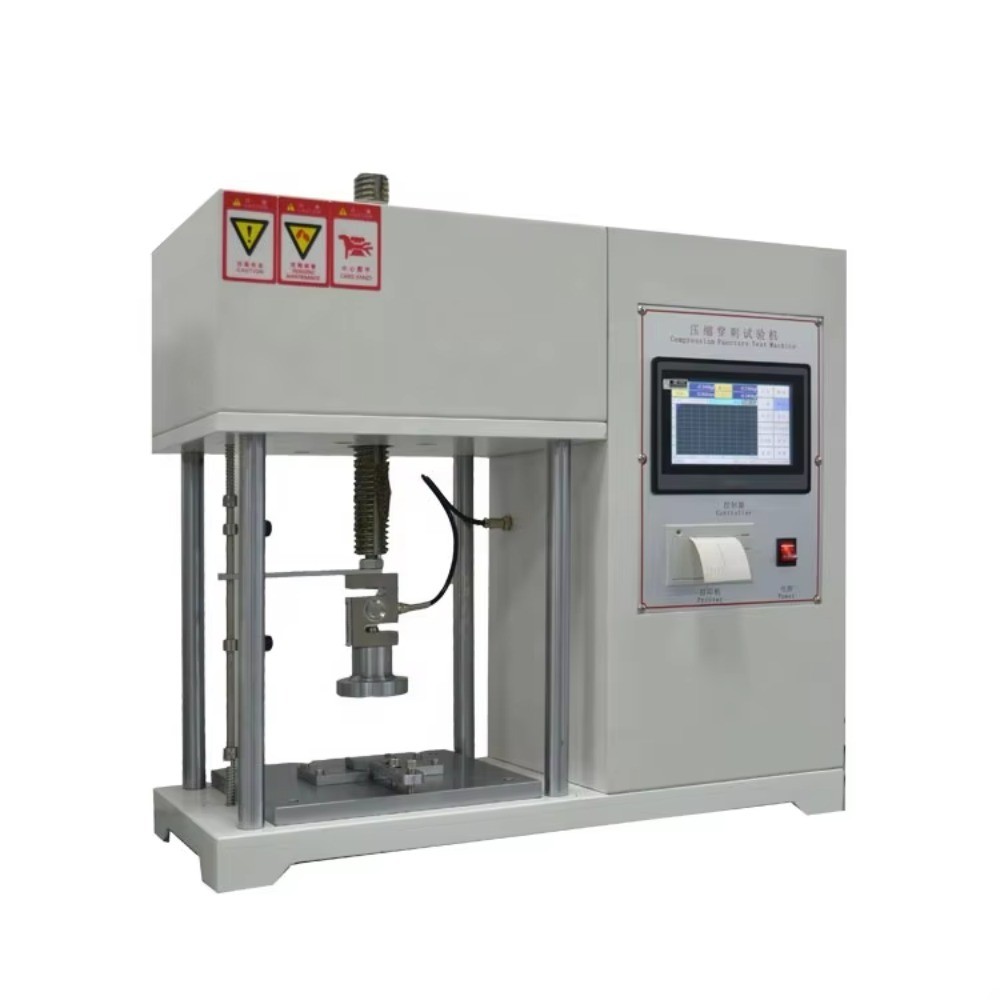

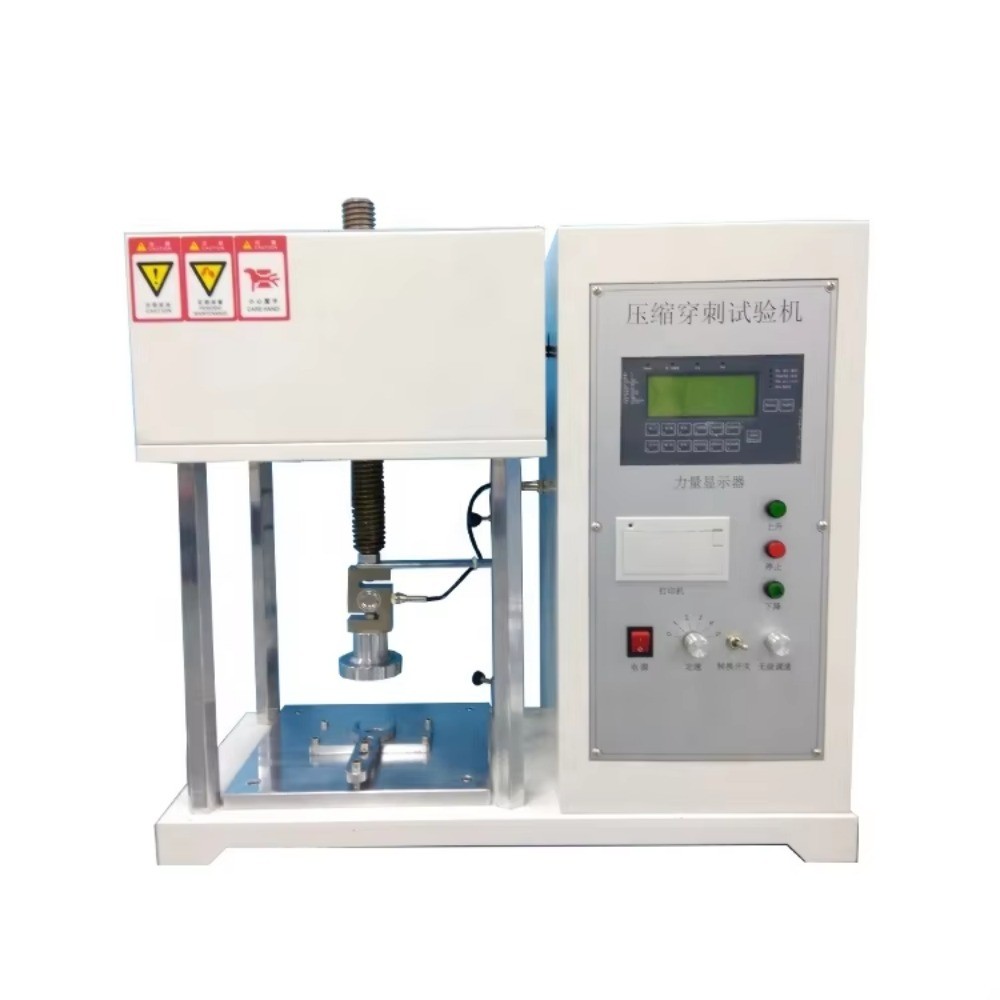

Puncture Resistance Testing Equipment

Product Item : PST-2000
Category： Other
Puncture Testing
Puncture Test
Puncture Resistance Testing Equipment
Product description：Puncture Resistance Testing Equipment detects the cranial compression resistance of shoes and the puncture resistance of steel plates to prevent injuries from poor quality shoes worn by workers in the
INQUIRY

Product Introduction

Safety shoe compression and puncture tester detects the cranial compression resistance of shoes and the puncture resistance of steel plates to prevent injuries from poor quality shoes worn by workers in the workplace. The test equipment can be adjusted arbitrarily according to customer requirements, and there are also 3 units of kg, N, lb can be switched arbitrarily, it also has a micro printer, you can print out the test results.

Standards

EN12568, ANSI, JIS, CSA, GB120171989, LD501994, ISO-20344, etc.

Woking Principle

1. Compression test: By using the corresponding standard pressure (EN standard: 15KN ± 0.1kN; By measuring the minimum height (i. e., the cylinder below maintains a safe height when pressing the toe cap at ANSI standard of 1000 ± 50LBS).

2. Puncture resistance test of steel plates: Evaluate the puncture resistance of steel plates by measuring the maximum force of penetration or whether the plate penetrates under a given force.

Technical Data

display	English display
Compressive strength	(EN)15 ± 0.1kn，(ANSI)1000 ± 50 ~ 10000 ± 501bs
Compression speed	(EN) 5 ± 2 mm/min, (ANSI) 501bs/sec
unit	kg, N, LB can be exchanged
resolution	1/10000
Maximum load	2000 kg
printing	Test results can be printed and queried
Other features:	You can set the date and time of the experiment; There are restrictions Protection and peak hold function with automatic shut-off
Platen hardness	(En) 60HRC
weight	150 kg
impetus	1Φ，AC220V，15A
