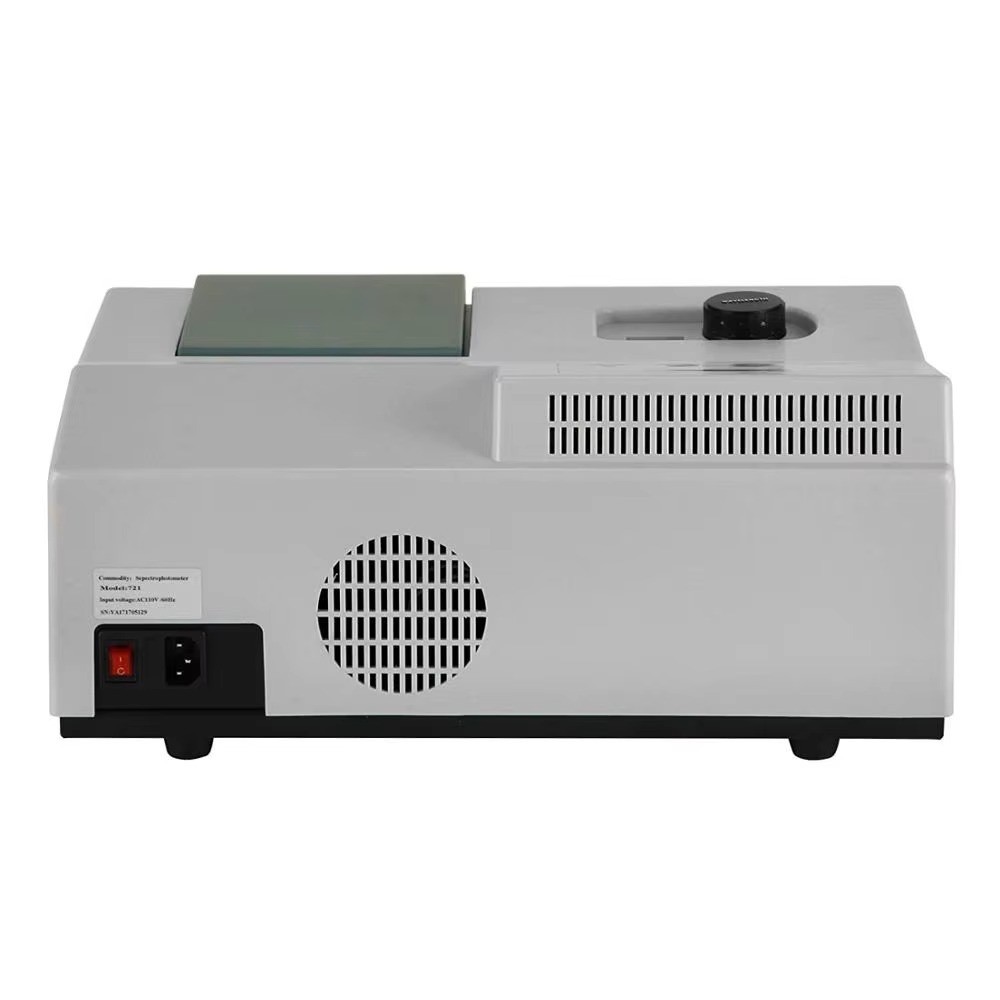

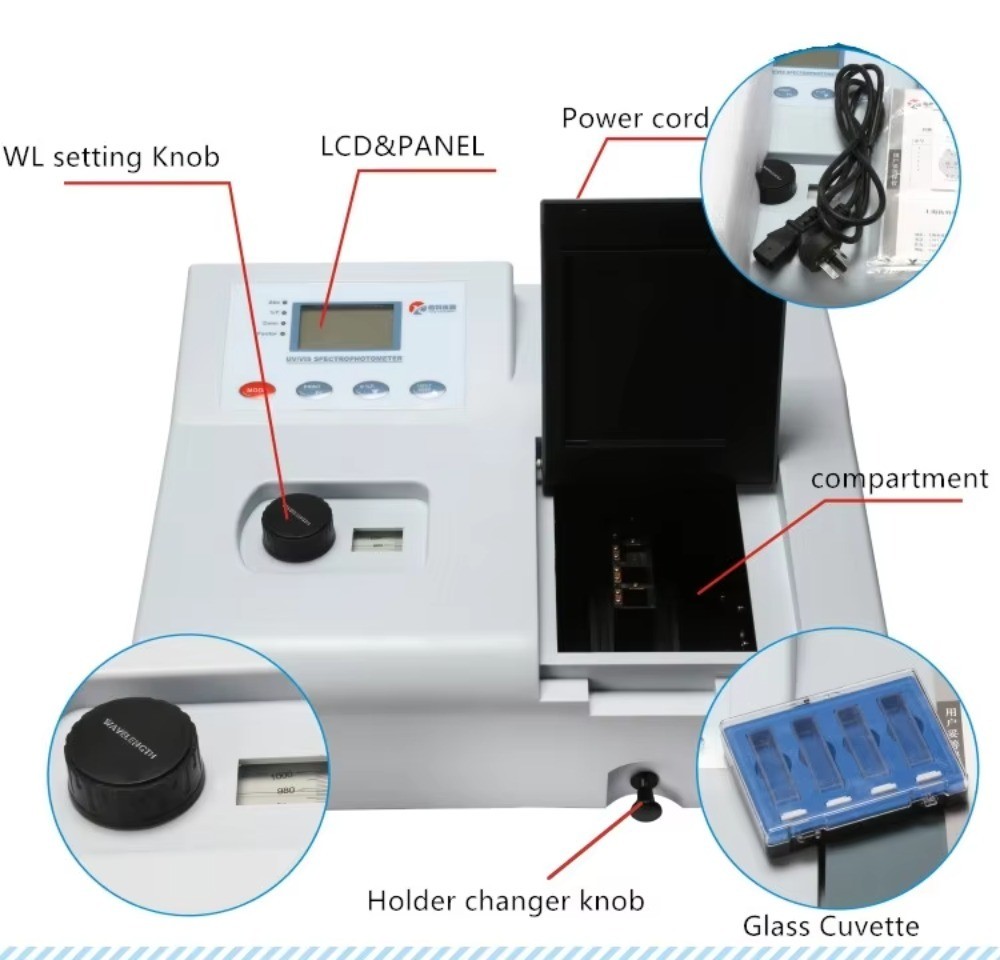

Single Beam Visible Spectrophotometer
- Product Item : ZY-UV721
- Category： Products
- Visible Spectrophotometer
- Single Beam Visible Spectrophotometer
- Product description：Product Feature 1. Single-beam spectrophotometer. 2. Wavelength is set manually. 3. Transmittance or absorbance is read directly on the LED display. 4. Measurement values can be transferred to a P
Product Feature
1. Single-beam spectrophotometer.
2. Wavelength is set manually.
3. Transmittance or absorbance is read directly on the LED display.
4. Measurement values can be transferred to a PC via the RS232 port for further analysis.
5. Low cost, making it an ideal tool for education or routine analysis.
Technical Data
|
Model |
V721 |
V722 |
UV752 |
|
Optical System |
Single Beam，Grating1200 line/mm |
||
|
Wavelength Range |
340-1020 nm |
320-1020 nm |
195-1020 nm |
|
Spectral Bandwidth |
6n, |
5nm |
|
|
Wavelength Accuracy |
± 3 nm |
± 2nm |
|
|
Wavelength Repeatability |
1nm |
||
|
Photometric Accuracy |
± 1% T |
± 0.5% T |
|
|
Photometric Repeatability |
0.5% T |
0.2% T |
|
|
Photometric Range |
0-200% T，-0.3A ~ 3A |
||
|
Stray Light |
0.5% T |
0.3% T |
|
|
Stability |
0.004 A |
0.002A |
|
|
Baseline Flatness |
± 0.002A |
||
|
Noise |
± 0.001 A |
||
|
Wavelength Setting |
Automatic |
||
|
Operating Mode |
T, A, C |
||
|
Light Source |
Tungsten filament lamp |
Deuterium-tungsten lamp |
|
|
Display |
4 LCD displays |
||
|
Detector |
Silicon photodiode |
||
|
Output |
RS-232 port |
||
|
Power |
AC 220V/50Hz or AC 110V/60Hz |
||
|
Dimensions |
420*350*200 mm |
||
|
Net Weight |
8kgs |
10kgs |
|
|
Shipping Dimensions |
520*450 * 320mm |
||
|
Gross Weight |
10kgs |
12kgs |
|
