XRF Spectrometer

Product Introduction

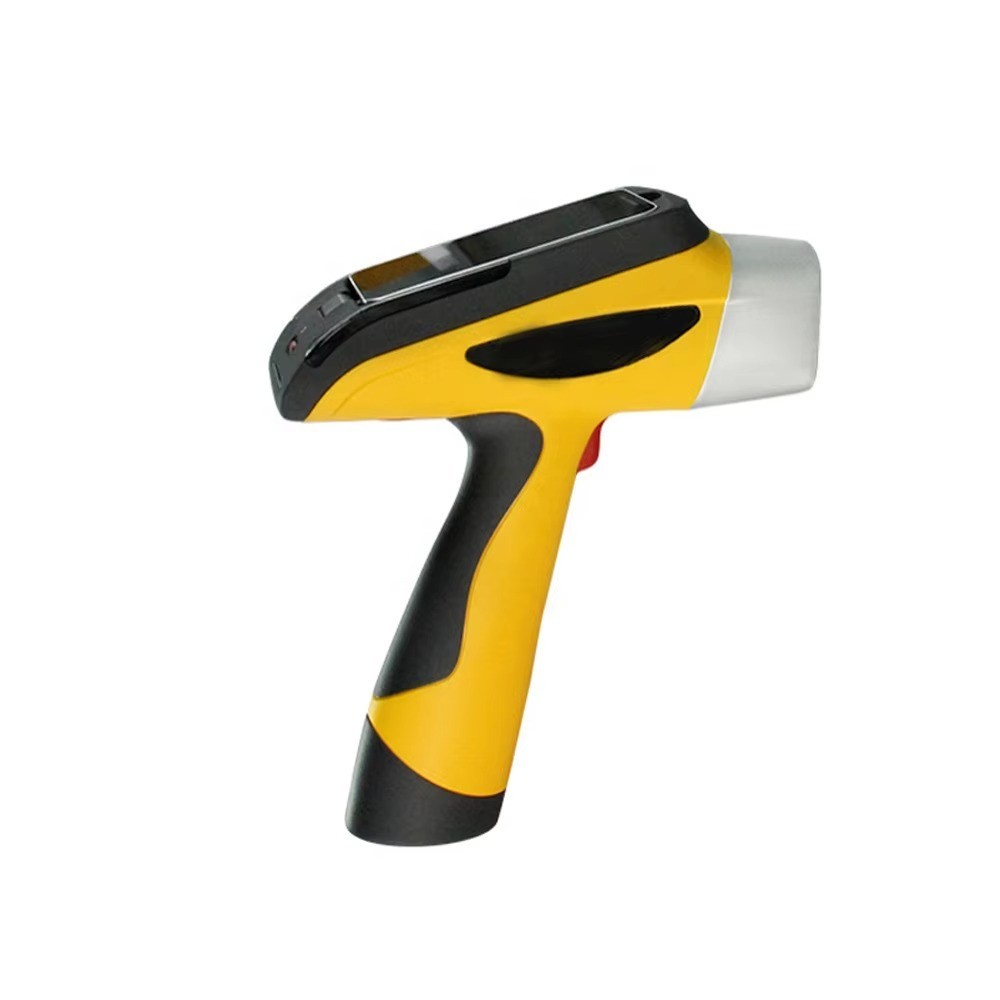

Our new generation of XRF handheld ore analyzer - XRF-300 plus is revolutionizing the field of analysis. The XRF-300 plus introduces the newer digital multichannel technology. Lower detection limit, better stability, wider range of application, and comparable performance to desktops. Its small size and convertibility make geological prospecting, multi-element exploration and analysis, and slag smelting simpler and easier.

Product Features

1. Personalize the work mode

Choose a variety of ore sample models and add unlimited models for free, and the working model can be customized according to customer needs.

2. Accurate definition of mining boundaries

The built-in GPS function helps to receive signals from satellites anytime and anywhere, and can record measurements of altitude, latitude and longitude at any time during the test, determine the geolocation information of the sampling point, and automatically save it as a test report.

It can draw ore distribution pictures through the obtained coordinate analysis data, quickly screen large areas, accurately grasp mineral deposits, determine mining boundaries, and improve production efficiency before finding bonanza areas.

Built-in Bluetooth function, when the instrument is paired with a Bluetooth printer, it can identify the key mining areas on site.

3. Discover the full value of the mine

High-definition camera function, more intuitive observation of detected veins and points, better management and control of the mining process, and detection of ore grade at any time. In the process of beneficiation, the raw ore, concentrate and tailings are analyzed quickly and accurately, providing a basis for value judgment for the determination of ore grade, mineral trade, processing and recycling

4. Environmental monitoring

Monitor and detect heavy metals in the soil around the mine, and evaluate the mine restoration environment to maximize the monitoring of the surrounding environment of the mine.

Product Advantages

1. Easier to operate

Lightweight, small size, ergonomic handle design, with special instrument cover, easier to grasp, more convenient to use in the field.

The 5-inch HD screen has 360-degree rotation, multi-point operation, and can be clearly displayed in any light.

Sealed integrated design, waterproof and dustproof, can be used continuously in harsh environments

No sample preparation is required, and the surface of the goods that need to be tested can be measured and analyzed directly. The instrument can take quick measurements with its handheld advantage and accurately test samples for long periods of time with its test block.

2. Better performance

Report results in under a second with targeted fast NDT and fast measurements. The performance is comparable to that of a desktop computer, and the test results are fast and accurate.

Simultaneously detect Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, in, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S, it can add elements customized according to customer needs.

With an ultra-low optical design, the instrument can operate without helium and can detect light elements that fully meet specific user needs starting from Mg.

3. Stronger battery

A large lithium battery with 27000mAh can be chosen: The battery lasts up to three days and is equipped with a communicator and car charger to ensure power. The built-in memory battery can continue to replace the battery power

4. Higher configuration

The four core components are a micro X-ray tube, a Fast-SDD detector (the world's best detector), a digital signal processor, and a micro multi-channel intelligent analysis module that can achieve the same accuracy as a benchtop.

Big data storage is composed of UHF memory and large-capacity storage space. Our new independently developed digital multi-channel technology ensures efficient mined spectrum counts of up to 500K cps per second.

Collimation filtration system, the combination of which can reach the limit of 12 groups, meets the testing requirements of different customers.

Built-in 500W pixel high-definition camera, you can observe the test position of the sample at any time, making the measurement more accurate.

5. Safer protection

Intelligent-Tricolor-Warning-System: 360-degree display without dead ends, designed by light-emitting diode, three-color light, light-emitting diode. The instrument status is indicated by different colors, with green light indicating power-on, red flushing indicating testing, and yellow flushing indicating equipment failure.

Triple safety protection function:

A: Automatic sensing, the instrument does not work without samples. No leakage radiation.

b: Thickening the test wall can effectively prevent scattering.

c: Safety shield can prevent the surrounding light matrix from scattering.

Safety-linkage-lock device protects your safety: If the software cannot control the instrument to shut down, it protects the final checkpoint.

6. More intelligent software

XRF-300 plus alloy analyzer is equipped with professional application software, specifically for the alloy industry; It is characterized by intelligence, high sensitivity, short test time and easy operation.

New knowledge - software is a key operation in two-mode design (user mode and expert mode). User mode is used to identify sample categories with one-click actions: Expert mode is used to add elements and add specific in-depth analysis of the operation curve.

Internal strength correction methods can correct deviations caused by heterogeneous samples of different geometries, densities, and structures.

7. Exclusive accessories

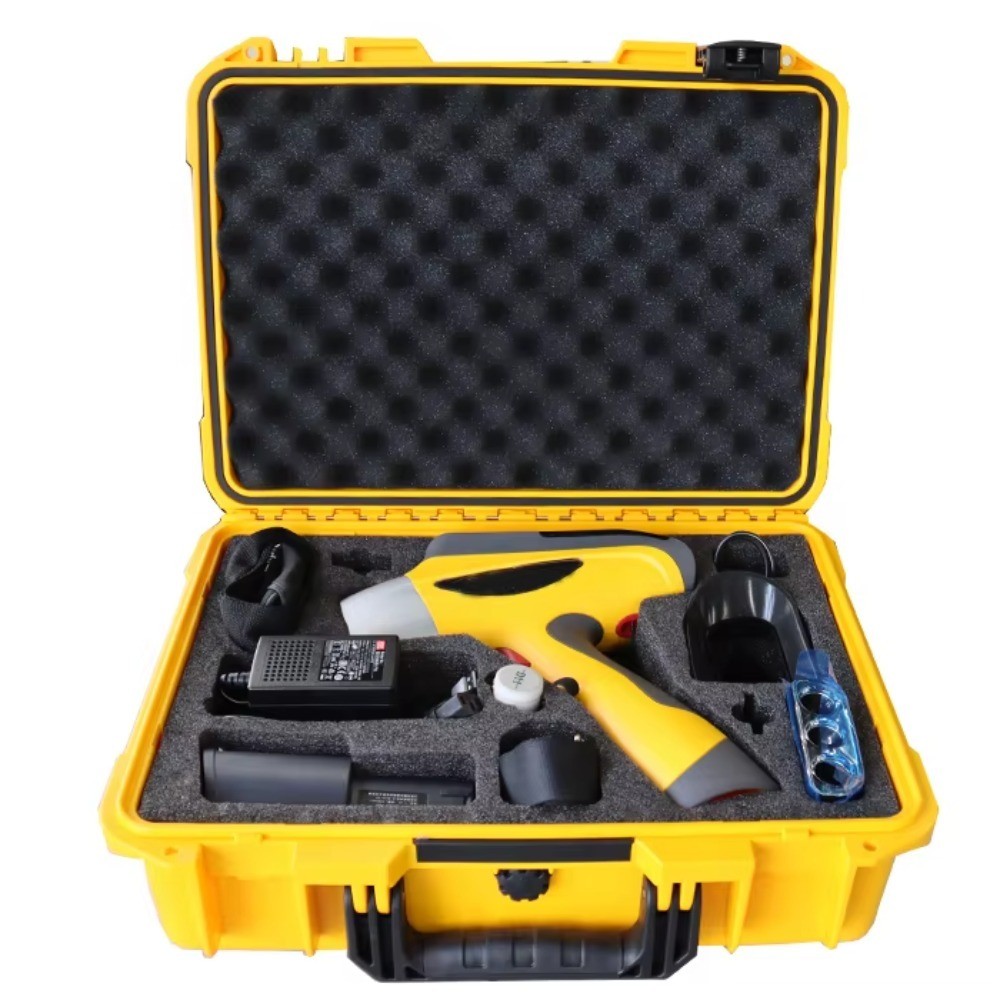

The high-strength protective box has three major functions: good moisture and shock resistance, and can be used as a rescue tool in an emergency.

A horseshoe battery: The battery capacity extends the test time by 3 times at 27000 mAh, and is used as a seat stand.

Enable on-site printing of data through portable Bluetooth printers

The 4-in-1 car charger can extend the charging time on site.

Technical Data
