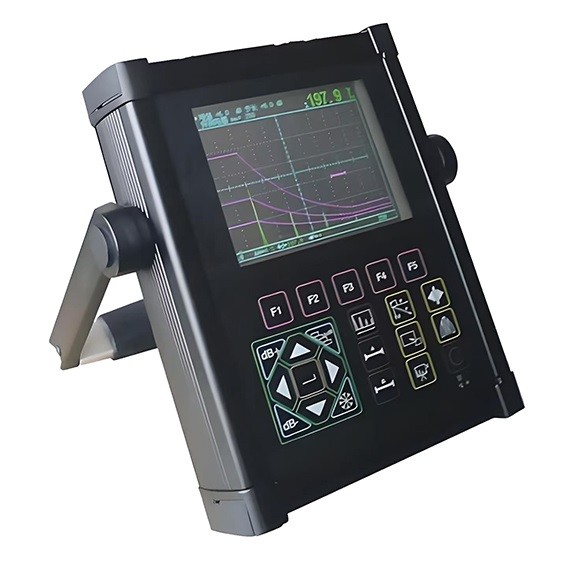

Ultrasonic Flaw Detector

Product Item : UFD10
Category： Metal Testing Instrument
Ultrasonic Flaw Detector
Flaw Detector
metal Ultrasonic Flaw Detector
Ultrasonic Flaw Detector,Flaw Detector
Product description：UFD-10 digital ultrasonic flaw detector can be quick and easy, noninvasive, accurate manner work piece internal faults such as cracks, weld, stomatal, trachoma, inclusions, folded and so on.
INQUIRY

UFD10 digital ultrasonic flaw detector can be quick and easy, noninvasive, accurate manner workpiece internal faults such as cracks, weld, stomatal, trachoma, inclusions, folded and so on.

UFD10 Digital Ultrasonic Flaw Detector Features
Automatic calibration of transducer Zero Offset and/or Velocity;
Automatic gain\PeakHold and PeakMemory;
Automatic display precise flaw location (Depth d\level p\distance s\amplitude\sz dB\);
Automatic switch three staff gauge ((Depth d\level p\distance s);
Ten independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 300 A graph and 30000 thickness value.
B scan;
RS232 port, communication with PC is easy;
The embeded software can be online updated;
Li battery, continue working time up to 8 hours;

UFD10 Digital Ultrasonic Flaw Detector Other Functions
Display freeze;
Automatic echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Dormancy and screen savers;
Electronic clock calendar;
Two gates setting and alarm indication;
High-speed capture and very low noise;
DAC\AVG\B Scan; Solid metal housing (IP65);
Automatically make video of test process and play;
Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
Powerful PC software and data can be exported to Excel;

UFD10 Digital Ultrasonic Flaw Detector Warranty

One year warranty

UFD10 Digital Ultrasonic Flaw Detector Standard Packing List

UFD10 Digital Ultrasonic Flaw Detector	1 PCS
Straight transducer	1 PCS
Angle transducer	1 PCS
Probe cable	2 PCS
Power Adapter	1 PCS
PC Software	1 PCS

UFD10 Digital Ultrasonic Flaw Detector Optional Accessories
Test block
Specifications:
Title Parameter Title Parameter
Measuring range(mm) 2.5 ~ 10000 Measurement mode single\dual\THRU
Vertical linearity error ≤ 2.5% Reject 0-80%
Horizontal linearity error ≤ 0.1% Pulse shift(μ S) -20 ~ +3400
Sensitivity margin ≥ 60dB Zero(μ S) 0.0 ~ 99.99
Dynamic scope ≥ 32dB Port type BNC
Resolution ≥ 40dB Operating temperature -20~50
Frequency range(MHz) 0.5 ~ 20 H× W× D(mm) 240× 180× 50
Gain(dB) 0 ~ 110 Weight(kg) 2.2
Velocity 1000 ~ 13000 -- --

UFD10 Digital Ultrasonic Flaw Detector Technical Data

Title	Parameter	Title	Parameter
Measuring range(mm)	2.5 - 10000	Measurement mode	single, dual, THRU
Vertical linearity error	≤ 2.5%	Reject	0-80%
Horizontal linearity error	≤ 0.1%	Pulse shift(μ s)	-20 -+3400
Sensitivity margin	≥ 60dB	Zero(μ s)	0.0 - 99.99
Dynamic scope	≥ 32dB	Port type	BNC
Resolution	≥ 40dB	Operating temperature	-20-50
Frequency range(MHz)	0.5 -20	H× W× D(mm)	240× 180× 50
Gain(dB)	0 - 110	Weight(kg)	2.2
Velocity	1000 - 13000	--	--
