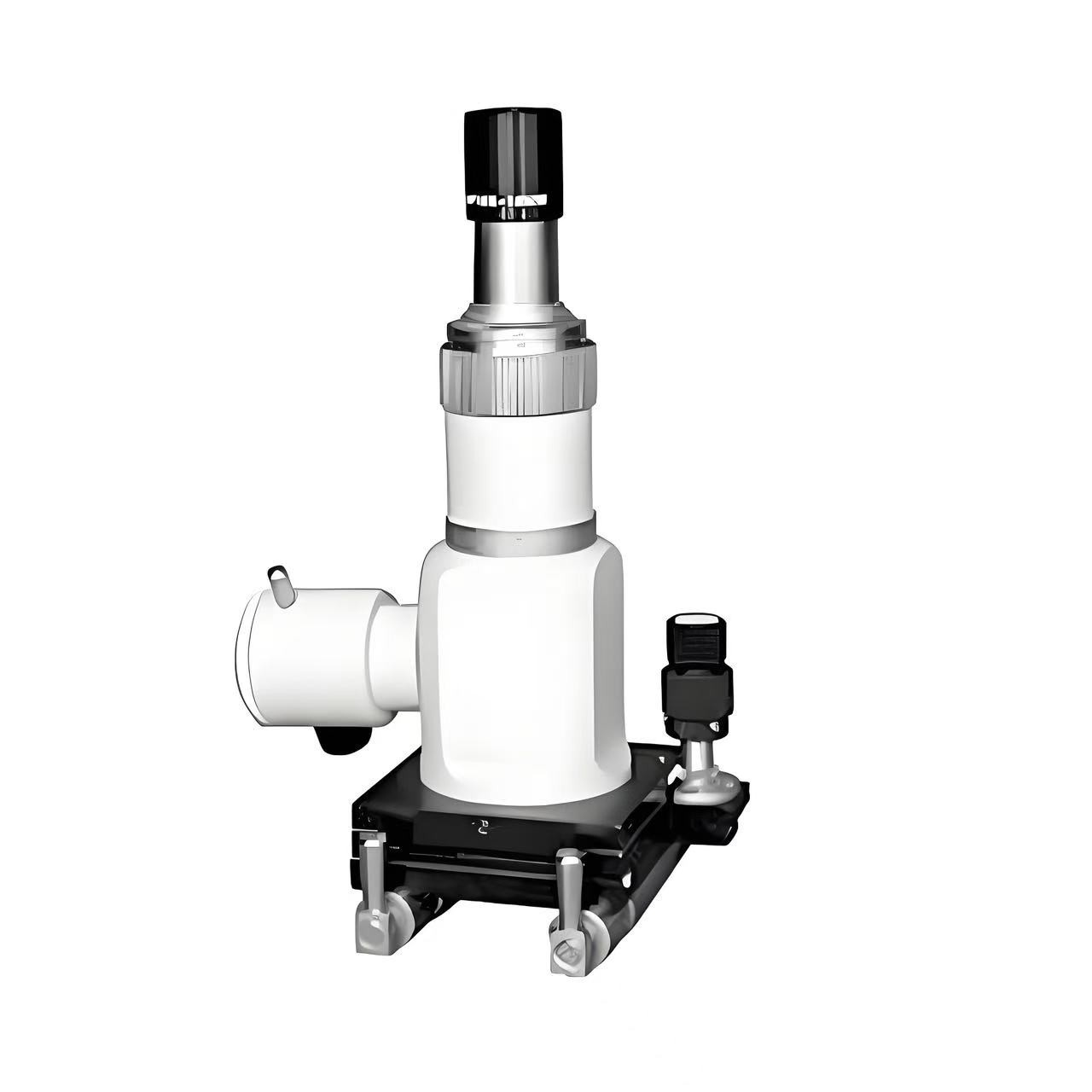

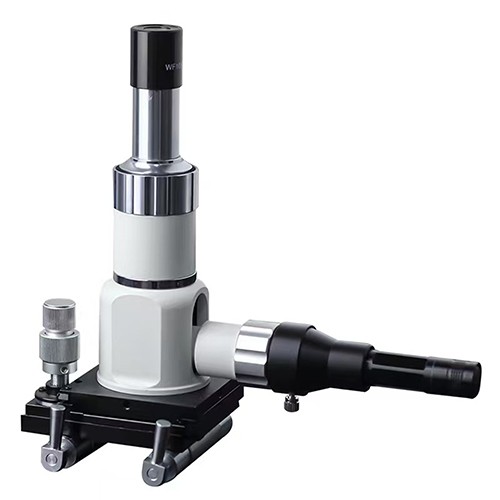

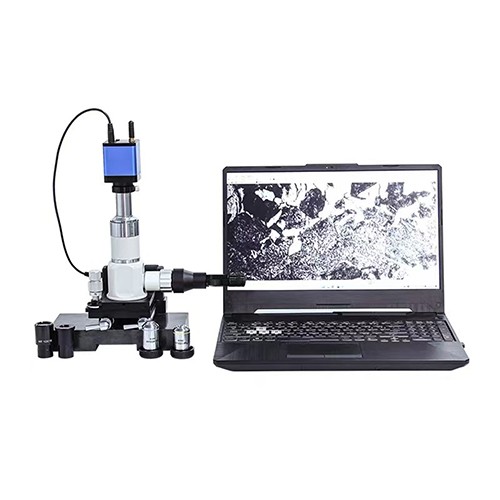

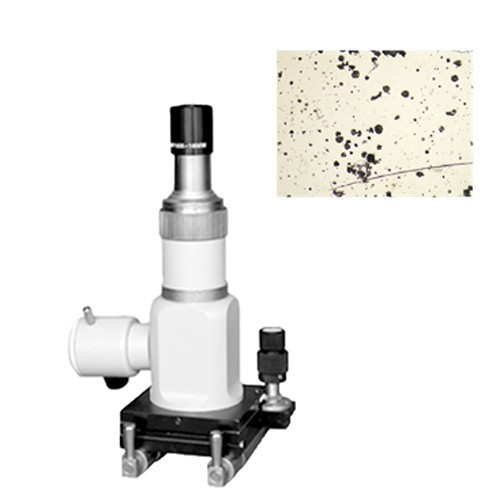

Portable Field Metallographic Microscope

Product Item : ZY-MM1000
Category： Metal Testing Instrument
Field Metallographic Microscope
portable metallographic microscope
metallographic microscope
field optical microscope
Product description：MM1000 microscrope is a self-contained portable metallurgical microscope ideally used for inspecting metallography of metals in laboratory or insitute. With fully handheld design and unique magnetic s
INQUIRY

Product Introduction

Portable metallographic microscopes ZY-MM1000 are suitable for on-site metallographic inspection and failure analysis of various large work pieces. They eliminate the need for cutting and sampling, allowing for direct grinding and polishing of the work piece, thus ensuring its integrity. The microscope base features a magnetic holder, allowing direct attachment to the work piece for on-site observation of the metallographic structure. Portable metallographic microscopes are applicable to industries such as aerospace manufacturing, machinery manufacturing, vehicle manufacturing, boiler and pressure vessel manufacturing and inspection, petrochemicals, railways, shipbuilding, power plants, equipment installation, large molds, safety inspection, quality supervision, and physical and chemical laboratories. They can also be widely used in factories and laboratories for casting quality assessment, raw material inspection, and the study and analysis of the metallographic structure of processed materials.

Product Features

1. Compact and precise optical structure for clear and stable images.

2. Magnification 100×—400×, flat achromatic metallurgical objective lens.

3. Reflective vertical illumination source (LED).

4. Gear-type 10mm X and Y axis moving platform.

5. Dedicated mechanical on/off magnetic base, suitable for various workpiece surfaces.

Technical Data

Model	ZY-MM1000
Eyepiece	Wide‑field WF10X (Φ18 mm)
Objective	LWD Plan Achromatic Objective (No‑coverslip) PL L10X/0.25 LWD Plan Achromatic Objective (No‑coverslip) PL L20X/0.40 LWD Plan Achromatic Objective (No‑coverslip) PL L40X/0.60
Eyepiece Tube	Straight monocular tube
Total Optical Magnification	100‑400X
Illumination System	Aspheric condenser, LED lamp, adjustable brightness
Focusing Mechanism	Coarse‑fine coaxial focusing; fine‑focus graduation value: 2 μm, with locking and limit device
Grinder	Mini variable‑speed grinder: speed 5000～37000 rpm, equipped with 80#‑700# grinding bits
Electromagnetic Base	Magnetic attraction: 25 N/cm², equipped with magnetic‑force switch
Weight	3.5 KG
Packing Case	Aluminum alloy case: 475×280×160 mm

Packing List

Description	Qty
Microscope with Aluminum alloy carrying case	1 unit
On‑off Magnetic Base	1 unit
Eyepiece, WF10X	1 pc
Objective Lens PL10×	1 pc
Objective Lens PL20×	1
Objective Lens PL40×	1 pc
