Inverted Metallographic Microscope

Product Item : ZYMM-5400
Category： Metal Testing Instrument
Inverted Metallographic Microscope
Product description：Inverted Metallographic Microscope is widely used in materials science, metallurgy, mechanical manufacturing, and other fields for metal material quality inspection, microstructure analysis, and failu
INQUIRY

Product Introduction

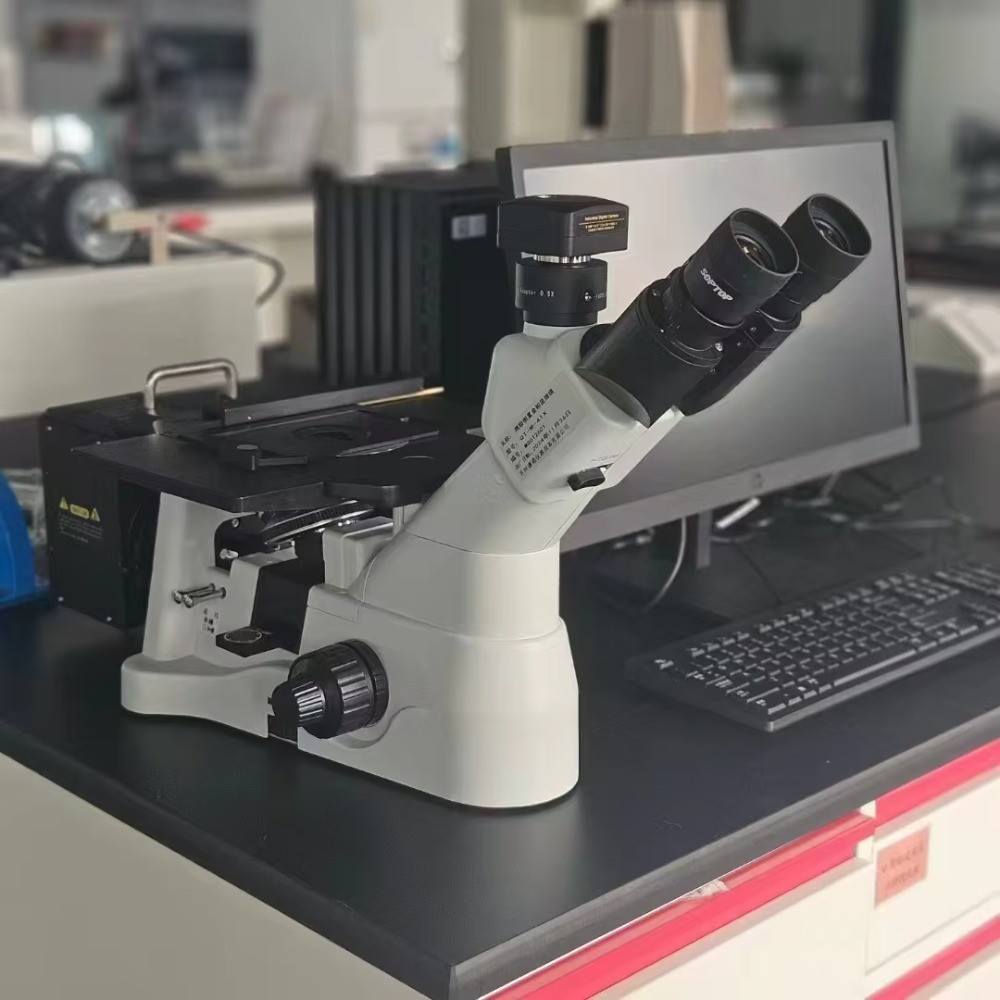

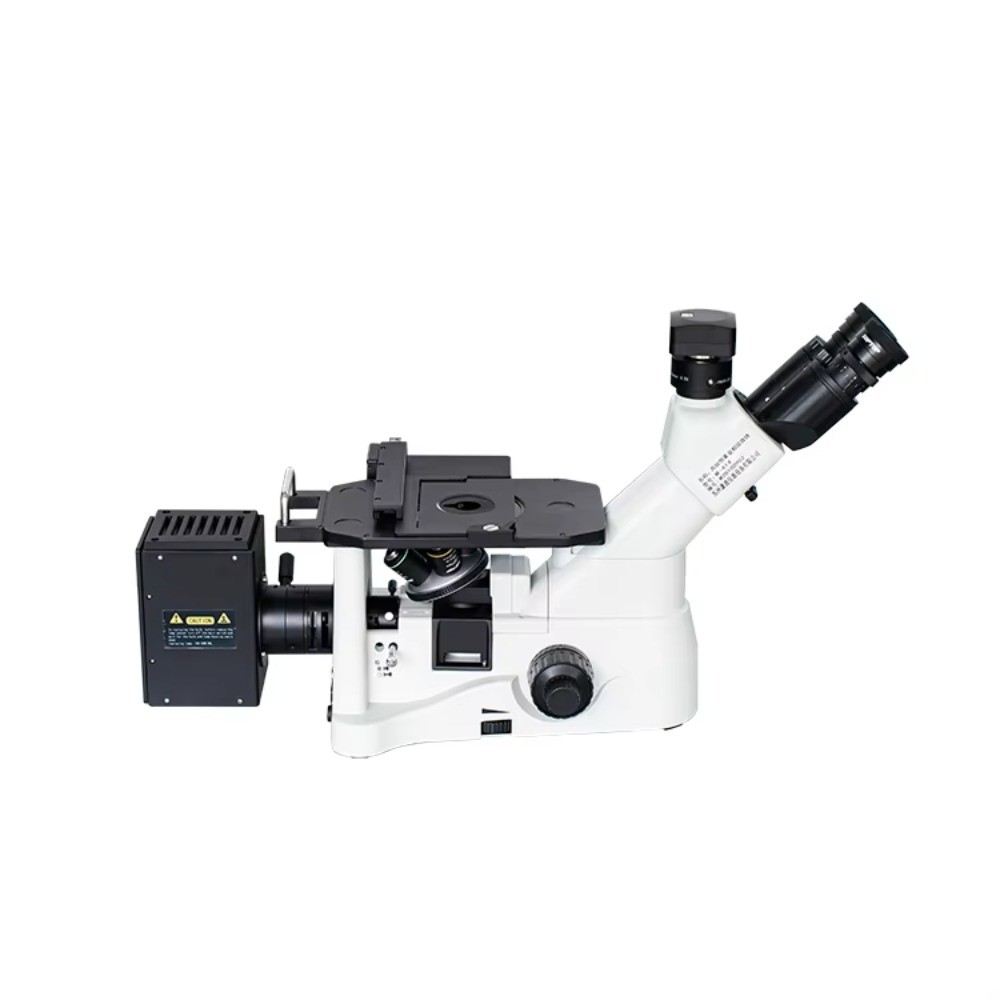

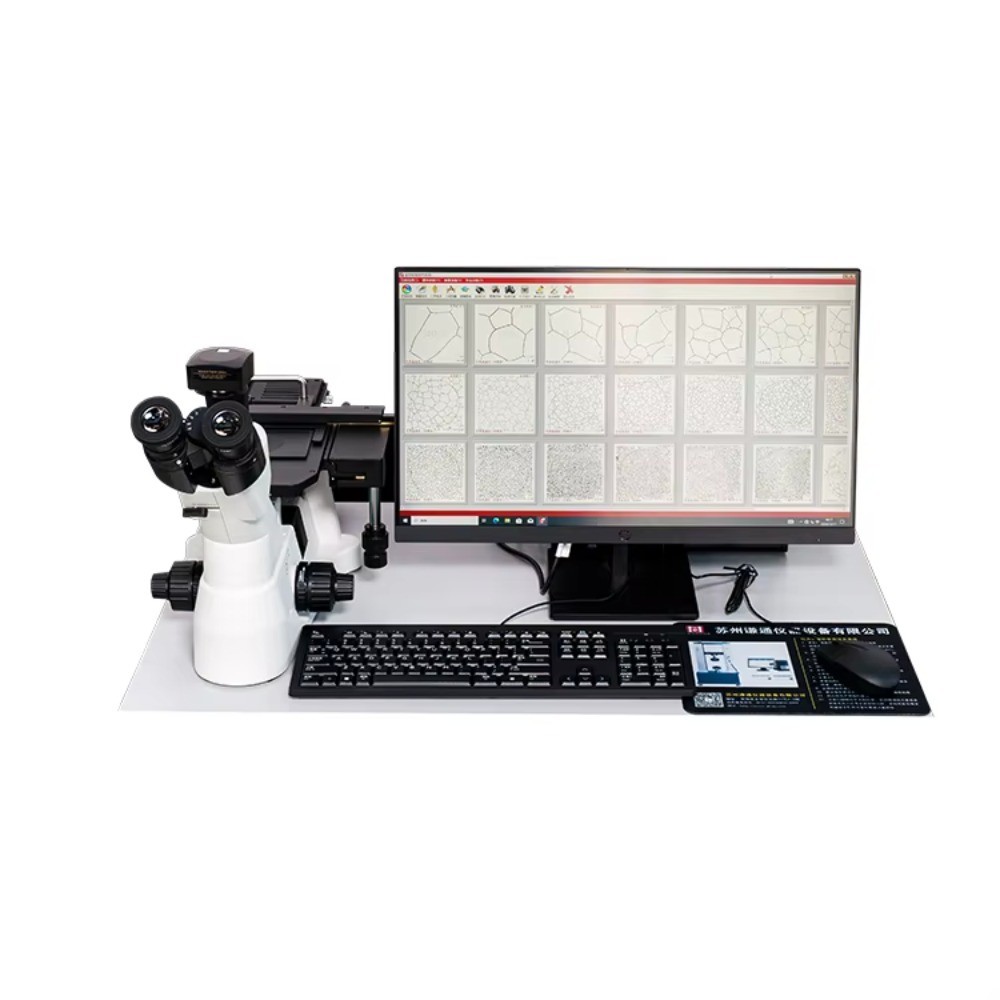

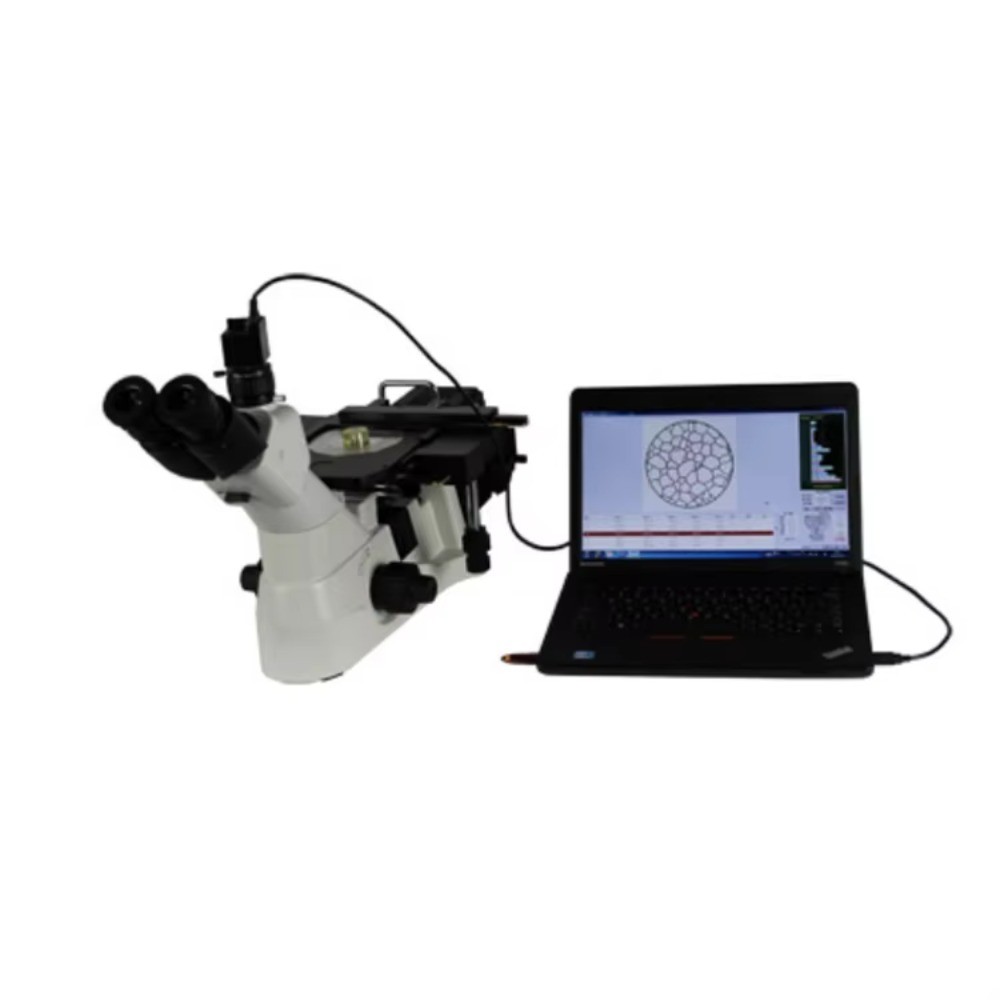

Inverted Metallurgical Microscope, a special type of metallurgical microscope that, by inverting the positions of the objective lens and the stage, allows for high-magnification observation of the microstructure (such as grain size, phase distribution, and inclusions) of the surface or cross-section of materials such as metals and alloys.

Application

It is widely used in materials science, metallurgy, mechanical manufacturing, and other fields for metal material quality inspection, microstructure analysis, and failure analysis, helping to determine the correlation between material properties (such as strength, toughness, and corrosion resistance) and microstructure.

Technical Data

Model	ZYMM-5400
Interpupillary distance adjustment range	54-75 mm
Voltage	90V-240V
Fixed platform dimensions	160 mm * 250 mm
Magnification	50X, 100X, 200X, 500X adjustable (standard configuration 10X eyepiece)
Light source	Reflective Cora illumination system (12V 50W halogen lamp), adjustable brightness
Power/Weight	220V 50Hz / 8 kg

Packing List

Optical System	Infinity Optical System (CSIS)	1
Observation Tube	Butterfly-shaped binocular tube, 30° inclination, interpupillary distance 48-76 mm	1
Wide Field Eyepiece	10X/φ20 mm	1
Wide field eyepiece	10X/φ20 mm (with reticle)	1
Infinite Working Distance Plan Objective	LPL 5 ×，N.A 0.13，WD24.23	1
	LPL10 ×，N.A 0.25，WD18.48	1
	LPL20 ×，N.A 0.40，WD8.35	1
	LPL50 × n.A 0.70，WD1.95	1
	LPL80 × n.A 0.8，WD0.85	Optional
	LMPlan FL 100X(干)N.A 0.85wd3.00	Optional
Objective Turret	Four-hole converter	1
Storage Table	Mechanical stage, 180 × 155 mm area, 50 mm × 50 mm travel range, 0.1 mm vernier scale	1
Focusing Mechanism	Coaxial coarse and fine focus adjustment, 12 mm travel, 0.2 mm per revolution, 2 μm graduation, coarse adjustment with adjustable tension	1
Polarizing Device	Polarizer, analyzer	1
Light Source	5W LED long-life lamp	1
Camera Connection Port	0.5x C-Mount interface	1
