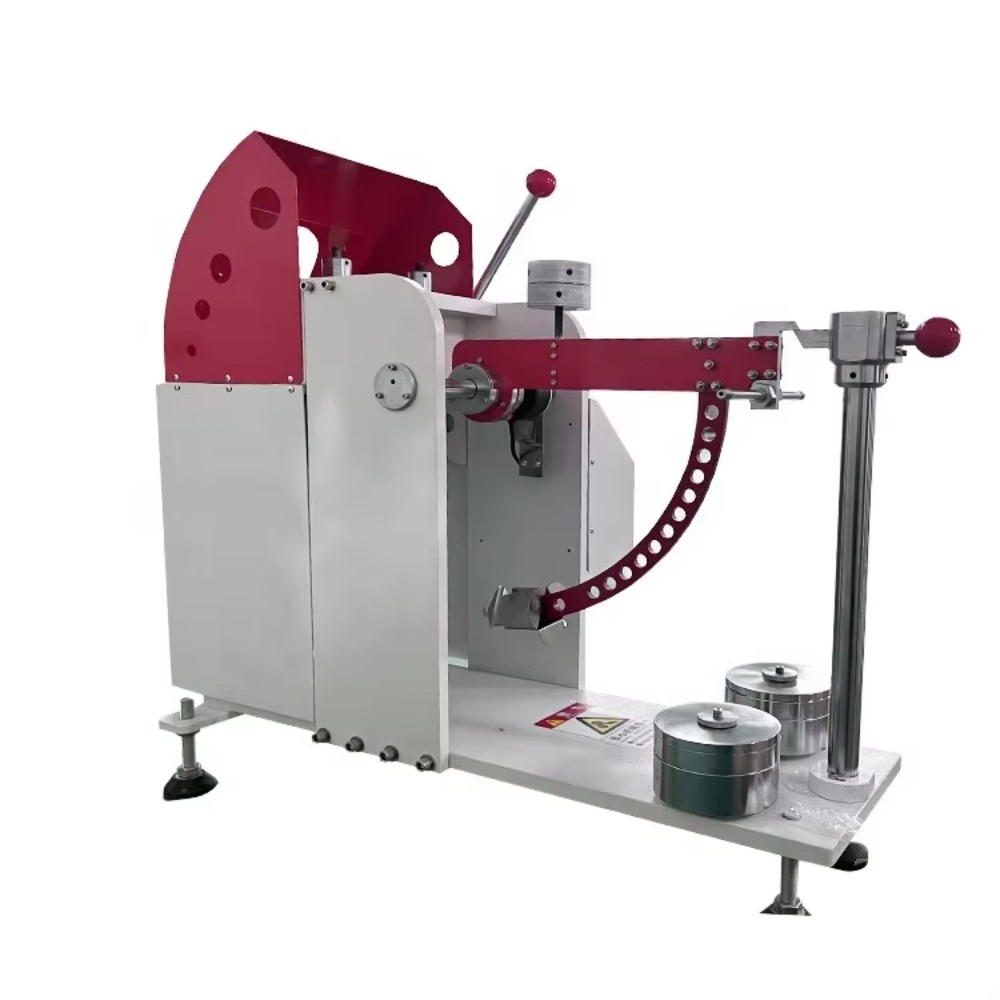

Puncture Resistance Tester

Product Item : ZYPS-48
Category： Paper, Packaging & Print
Puncture Resistance Tester
Puncture test
Puncture Strength Tester
Product description：The puncture test determines the board's resistance to penetration by sharp and solid objects. It is the dedicated equipment for corrugated cardboard. Its parameter conforms to the related regulation.
INQUIRY

Product Introduction and Application

The puncture test determines the board's resistance to penetration by sharp and solid objects. It is the dedicated equipment for corrugated cardboard. Its parameter conforms to the related regulation. It has the characteristics of swift compaction, handle resetting automatically and safety protection, the testing result is high precise and reliable. It is the necessary equipment for the paper-making factory, research and quality supervision department.

Product Features

1. LCD touchscreen

2. Microcomputer intelligent control

3. Data can be displayed in real time

4. Stable and accurate operation

5. Compact and beautiful structure

Technical Data

Measuring Range	(1-48) J
Indication Error	Ruler A: ±0.05J; Ruler B:± 0.1J; Ruler C: ±0.2J; Ruler D: ±0.5J (within the limit range 20%~80% at each measurement)
Pointer Friction	<0.25J
Pendulum Shaft Friction and Air Resistance	>120 times (Measured by the swing frequency of arm swing)
Triangular Pyramid	Side Length: 60×60×60 mm; Height: 25±0.7 mm; edge fillet Radius: 1.5±0.1 mm
Outside Dimension (LWH)	800500750 mm
